QL65F7Sx
Feature
QSI Red Laser Diode
Wavelength: 655nm (typ.)
Output Power: 10mW
Package: TO18 (RoHS compliant)
Built-in Monitor Photodiode
Applications
Optical Pickup
Laser Module
Bar code Readers
Driver ICs
This diode is best driven using the following IC Haus driver:

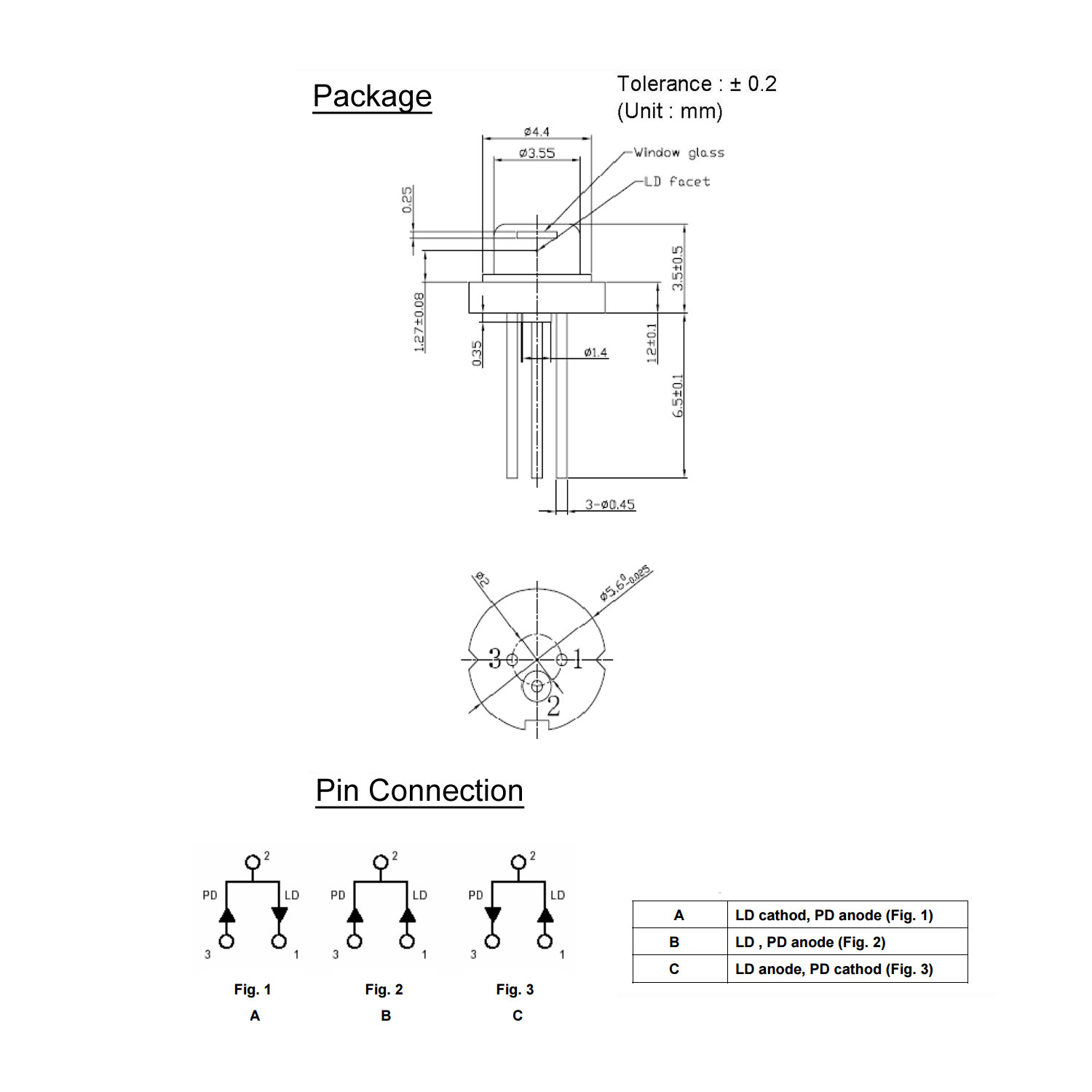

Pin options
This diode is available in the following pin types:
QL65F7SA – N-type
QL65F7SB – M-type
QL65F7SC – P-type
Description
Absolute Maximum Ratings
(Ta=25°C)
|
Items
|
Symbols
|
Values
|
Units
|
|
Optical Output
Power |
Po
|
12
|
mW
|
|
Reverse
Voltage |
VR
|
+2
|
V
|
|
Operating
Current |
IF
|
80
|
mA
|
|
Operating
Temperature |
Topr
|
-10 to +70
|
°C
|
|
Storage
Temperature |
Tstg
|
-40 to +85
|
°C
|
Electrical and Optical Characteristics
(Ta=25°C)
|
Item
|
Symbols
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
Optical Output
Power |
Po
|
–
|
10
|
12
|
mW
|
–
|
|
Threshold
Current |
Ith
|
–
|
40
|
50
|
mA
|
Po=10mW
|
|
Operating
Current |
Iop
|
–
|
60
|
80
|
mA
|
Po=10mW
|
|
Differential
Efficiency |
η
|
–
|
–
|
–
|
mW/mA
|
–
|
|
Operating
Voltage |
Vop
|
–
|
2.3
|
2.6
|
V
|
Po=10mW
|
|
Peak
Wavelength |
λp
|
645
|
655
|
660
|
nm
|
Po=10mW
|
|
Monitor
Current |
Im
|
0.1
|
0.2
|
0.5
|
mA
|
Po=10mW
|
|
Beam *4
Divergence |
Θ// x Θ⊥
|
6.0 x 20
|
9.0 x 25
|
12.0 x 30
|
deg
|
Po=10mW
|
|
Beam
Angle |
ΔΘ// x ΔΘ⊥
|
-1.5 x -2.5
|
–
|
+1.5 x +2.5
|
deg
|
Po=10mW
|
Additional information
| Colour | Red (635 – 685nm) |
|---|---|
| Wavelength | 655nm |
| Power Output | 10mW |
| Operating Voltage | 2.3 Typ. 2.6 Max. |
| Operating Current | 80 |
| PIN Type | M or B (inc. PD), N or A (inc. PD), P or C (inc. PD) |
| Package Type | TO-18 |
| Driver IC | iC-HB, iC-HK, iC-NZN, iC-NZP, iC-WK/L |
