SDL-520-1000-901E
Click to enlarge

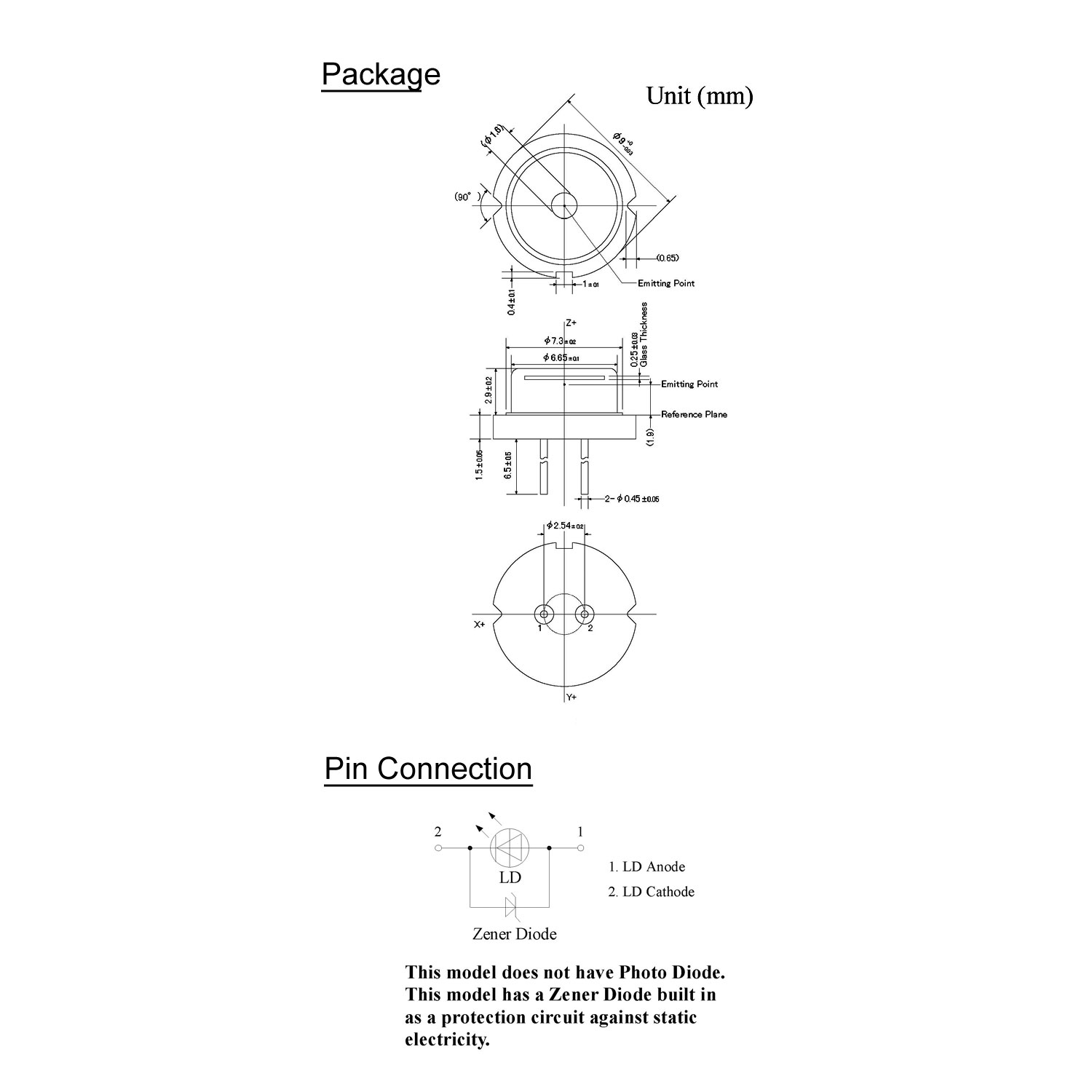

SDL-520-1000-901E SDL-520-1000-901E pin

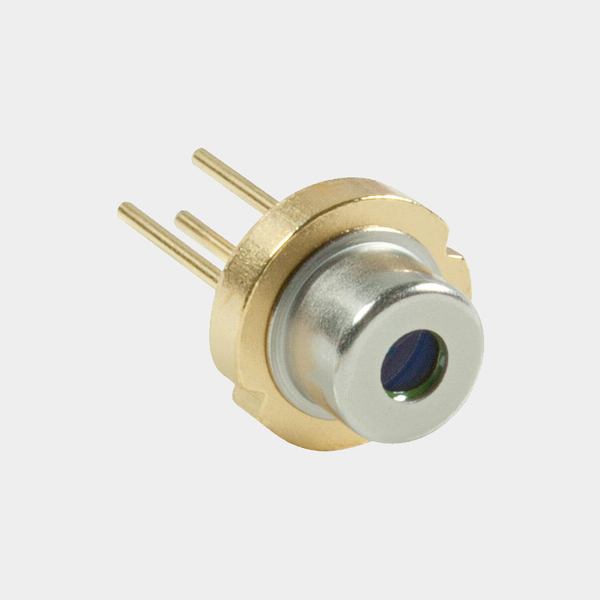

520nm, 1000mW Green Laser Diode

SDL-520-1000-901E

Feature

High Power Green Laser Diode
Wavelength: 520nm (typ.)
Output Power: 1000mW
Package: TO9 (RoHS compliant)

Applications

Industrial Applications

Driver ICs

This diode is best driven using the following IC Haus driver:
iC-HG
SKU: 520nm, 1000mW Green Laser Diode Category: Tags: , ,

Product Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
1000
mW
Reverse
Voltage
VR
+5
V
Forward
Current
IF
1800
mA
Operating
Temperature
Topr
+0 to +50
°C
Storage
Temperature
Tstg
-40 to +85
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Operating
Current
Iop
–
–
1800
mA
CW
Operating
Voltage
VF
–
+4.6
–
V
–
Threshold
Current
Ith
–
300
–
mA
CW
Slope
Efficiency
ɳ
–
0.83
–
mW/mA
If=1.5A
Spectral
Width (FWHM)
Δλ
–
–
–
nm
–
Beam
Divergence
Θ// x Θ⊥
5×35
11×46
25×55
deg
If=1.5A
Peak
Wavelength
λp
510
520
525
nm
If=1.5A
Beam Diameter
(Perpendicular)
ΔΘ⊥
-5
–
+5
deg
If=1.5A

Additional Information

Colour

Green (510 – 532nm)
Operating Current

1800
Operating Voltage

4.6 Typ.
PIN Type

G (no PD)
Power Output

1000mW
Package Type

TO-9
Driver IC

iC-HG
