Product Description
Applications
Pulsed and CW LD modules
Distance measurement
Bar-code readers
Laser projection
Laser diode pointers
Packages
QFN24
Click to enlarge

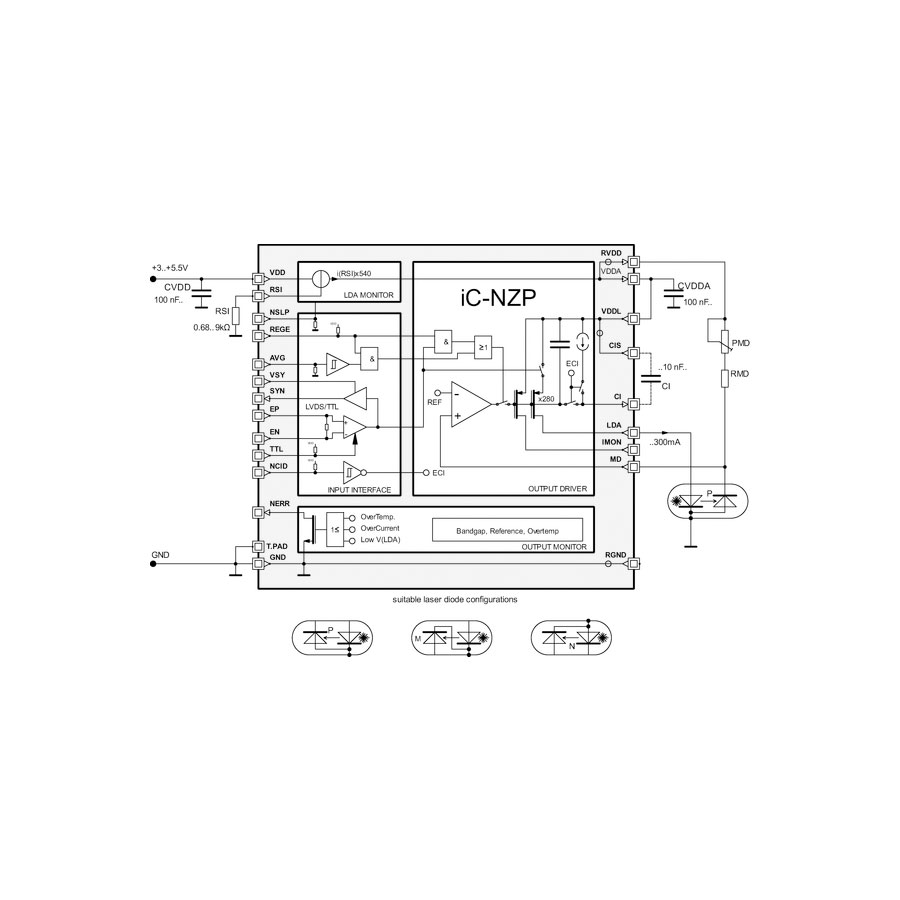

P-Type Laser Diode Driver with APC and ACC
iC-NZP
P-Type Laser Diode Driver with APC and ACC.
Features
Peak value controlled laser diode driver (from CW up to 155 MHz).
Spike-free switching of laser currents of up to 300 mA.
Setting of laser power (APC) via external resistor.
Optional current control (ACC).
Laser current limitation.
LVDS/TTL switching input with TTL monitor output.
Low current consumption sleep-mode < 50 µA.
Safety shutdown with overtemperature.
Error signal output with overtemp, undervolt and overcurrent.
Fast soft-start.
Strong suppression of transients with small external capacitors.
Datasheets
Manufacturer: iCHaus GmbH
Additional Information
| LD Pinout | P |
|---|---|
| Type | Laser Driver |
| Control Type | ACC, APC |
| Laser Speed | CW, Pulsed |
| Supply Current | mA |
