Product Description
Applications
Optical Storage Devices
Data transmission
Laser scanning devices
Packages
SO8
MSOP8
Click to enlarge

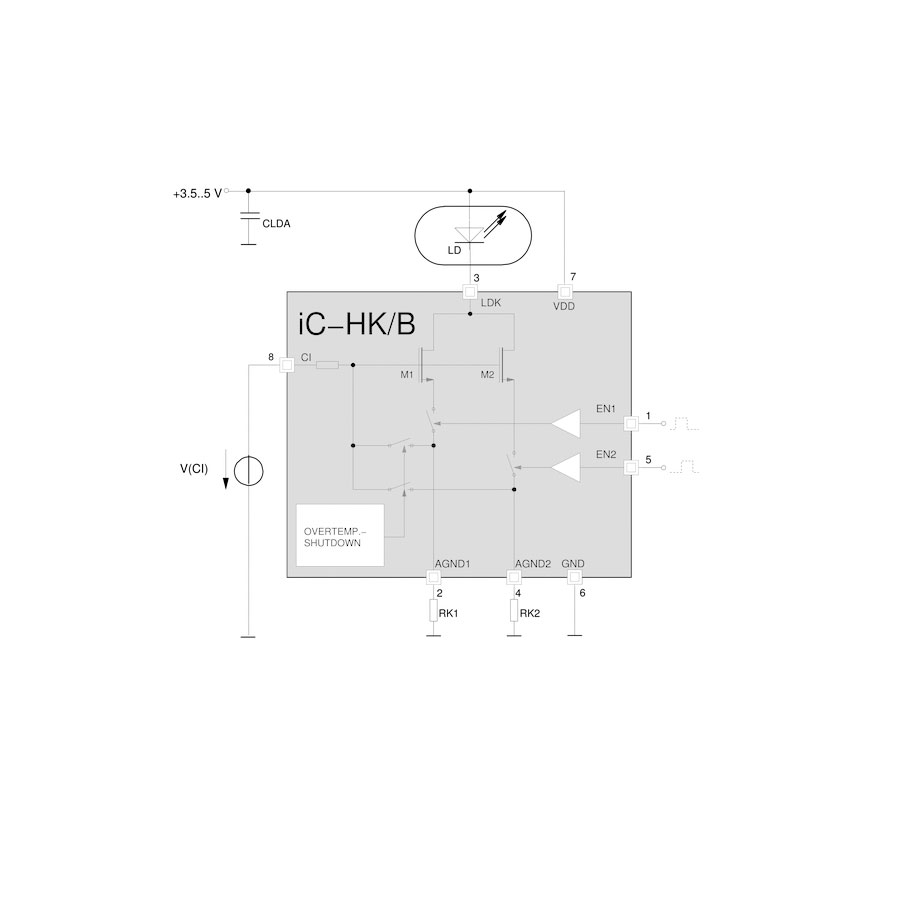

155 MHz Laser Switch, dual channel, spike-free
iC-HK & iC-HKB
155 MHz Laser Switch, dual channel, spike-free.
Features
Laser switch for frequencies from CW up to 155MHz.
Spike-free switching of the laser current.
Dual switching inputs independent current control.
Operates as a voltage-controller current source.
Pulsed operation with up to 700mA per channel.
CW operation with up to 150mA per channel.
Simple power control at pin CI.
Supplement to iC-WK⁄L for pulsed operation.
Thermal shutdown.
iC-HKB for driving blue laser diodes.
Datasheets
Manufacturer: iCHaus GmbH
Additional Information
| Type | Laser Driver |
|---|---|
| Control Type | Open Loop |
| Supply Current | mA |
| Laser Speed | Pulsed |
| LD Pinout | E, G, H, M, N, P |
