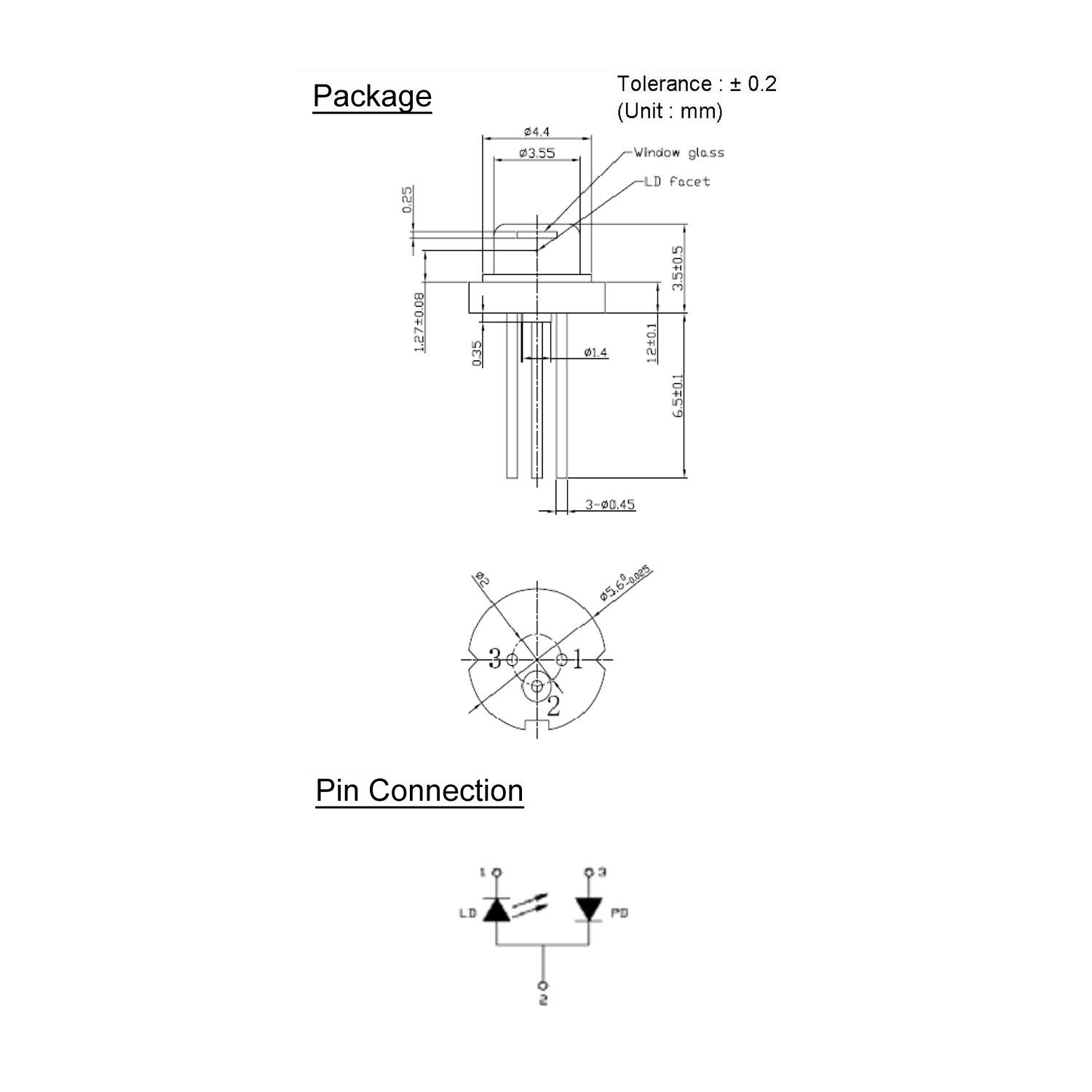

ADL-65103TL ADL-65103TL pin

650nm, 10mW Red Laser Diode

ADL-65103TL

Feature

Arima Red Laser Diode
Wavelength: 650nm (typ.)
Output Power: 10mW
Package: TO18 (RoHS compliant)
Better FFP Performance

Applications

Industrial Laser Markers
Laser Levelers
Bar code Readers

Driver ICs

This diode is best driven using the following IC Haus driver:
iC-WK/L
iC-NZN
iC-HK
iC-HB
SKU: 650nm, 10mW Red Laser Diode Category: Tags: , ,

Product Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
13
mW
Reverse
Voltage
VR
+2
V
Operating
Current
IF
40
mA
Operating
Temperature
Topr
-10 to +50
°C
Storage
Temperature
Tstg
-40 to +85
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Optical Output
Power
Po
–
10
13
mW
–
Threshold
Current
Ith
–
20
25
mA
Po=10mW
Operating
Current
Iop
–
31
40
mA
Po=10mW
Differential
Efficiency
η
0.7
0.9
1.2
mW/mA
Po=7-10mW
Operating
Voltage
Vop
–
2.2
2.5
V
Po=10mW
Peak
Wavelength
λp
645
650
660
nm
Po=10mW
Monitor
Current
Im
0.1
0.3
0.4
mA
Po=10mW
Beam *4
Divergence
Θ// x Θ⊥
6.0 x 25
9.5 x 28
12.0 x 32
deg
Po=10mW
Beam
Angle
ΔΘ// x ΔΘ⊥
-2 x -2
–
+2 x +2
deg
Po=10mW

Additional Information

Colour

Red (635 – 685nm)
Wavelength

650nm
Power Output

10mW
Operating Voltage

2.2 Typ. 2.5 Max.
Operating Current

40
PIN Type

N or A (inc. PD)
Package Type

TO-18
Driver IC

iC-HB, iC-HK, iC-NZN, iC-WK/L
