SDL-488-60-511D
Click to enlarge

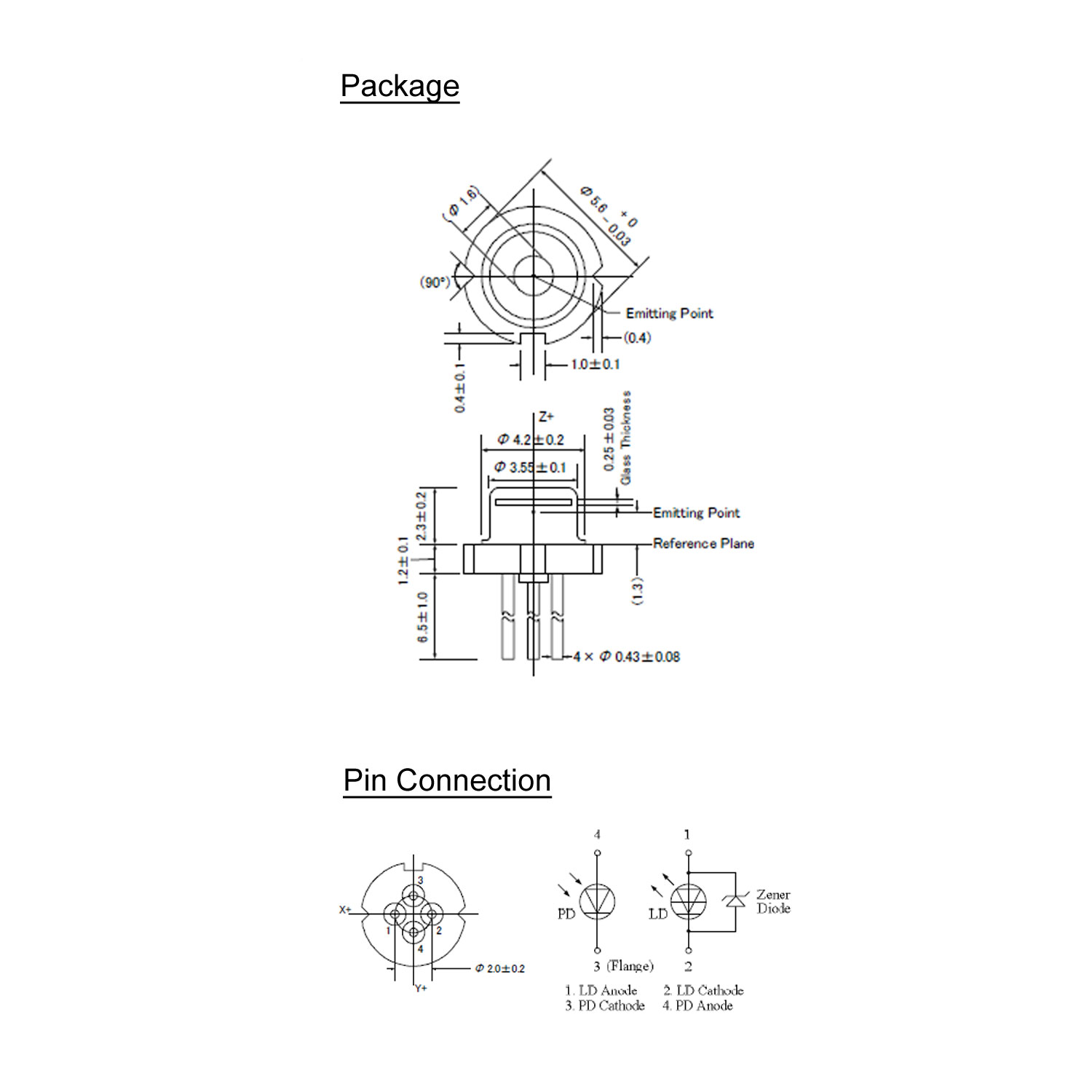

SDL-488-60-511D SDL-488-60-501G pin

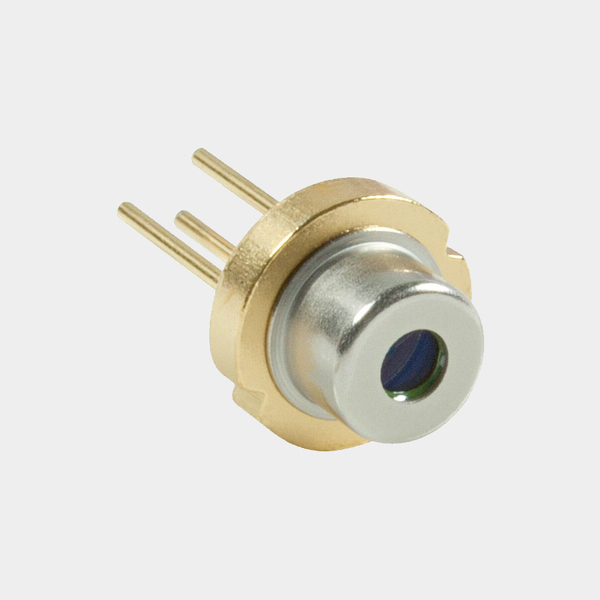

488nm, 60mW Blue Laser Diode (D-Type)

SDL-488-60-511D

Feature

Semicom Sky Blue Laser Diode
Wavelength: 488nm (typ.)
Output Power: 60mW
Package: TO18 (RoHS compliant)

Applications

Industrial Use
Medical Use

Driver ICs

This diode is best driven using the following IC Haus driver:
iC-HKB
SKU: 488nm, 60mW Blue Laser Diode (D-Type) Category: Tags: , ,

Product Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
80
mW
Operating
Voltage
VCC
+5
V
Operating
Current
IF
130
mA
Operating
Temperature
Topr
0 to +60
°C
Storage
Temperature
Tstg
-40 to +80
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Optical Output
Power
Po
–
60
80
mW
–
Threshold
Current
Ith
–
30
50
mA
Po=60mW
Operating
Current
Iop
–
100
130
mA
Po=60mW
Differential
Efficiency
η
0.6
0.9
–
mW/mA
Po=60mW
Operating
Voltage
Vop
–
5.6
6.2
V
Po=60mW
Peak
Wavelength
λp
483
488
493
nm
Po=60mW
Monitor
Current
Im
0.2
1.0
1.8
mA
Po=60mW
Beam *4
Θ//
7.0
10.0
13.0
deg
Po=60mW
Divergence
Θ⊥
20
23.5
27
deg
Po=60mW
Beam
ΔΘ//
-2.5
–
+2.5
deg
Po=60mW
Angle
ΔΘ⊥
-5
–
+5
deg
Po=60mW

Additional Information

Colour

Blue (445 – 488nm)
Operating Current

130
Operating Voltage

5.6 Typ. 6.2 Max.
PIN Type

D (inc. PD)
Power Output

60mW
Wavelength

488nm
Package Type

TO-18
Driver IC

iC-HKB
