AD-52501
Click to enlarge

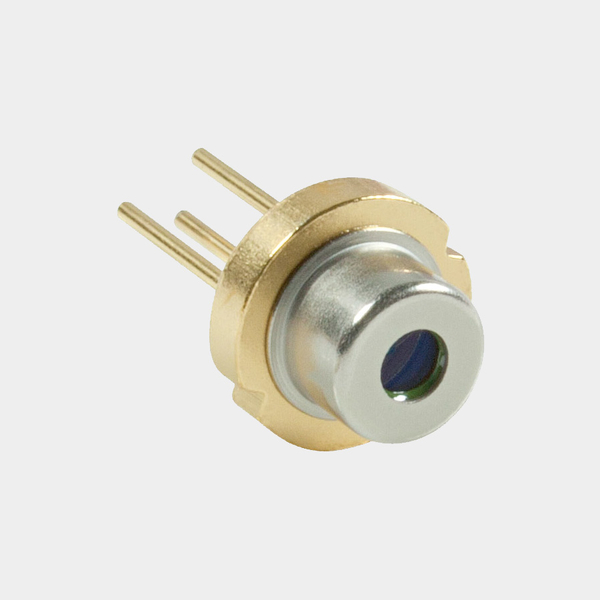

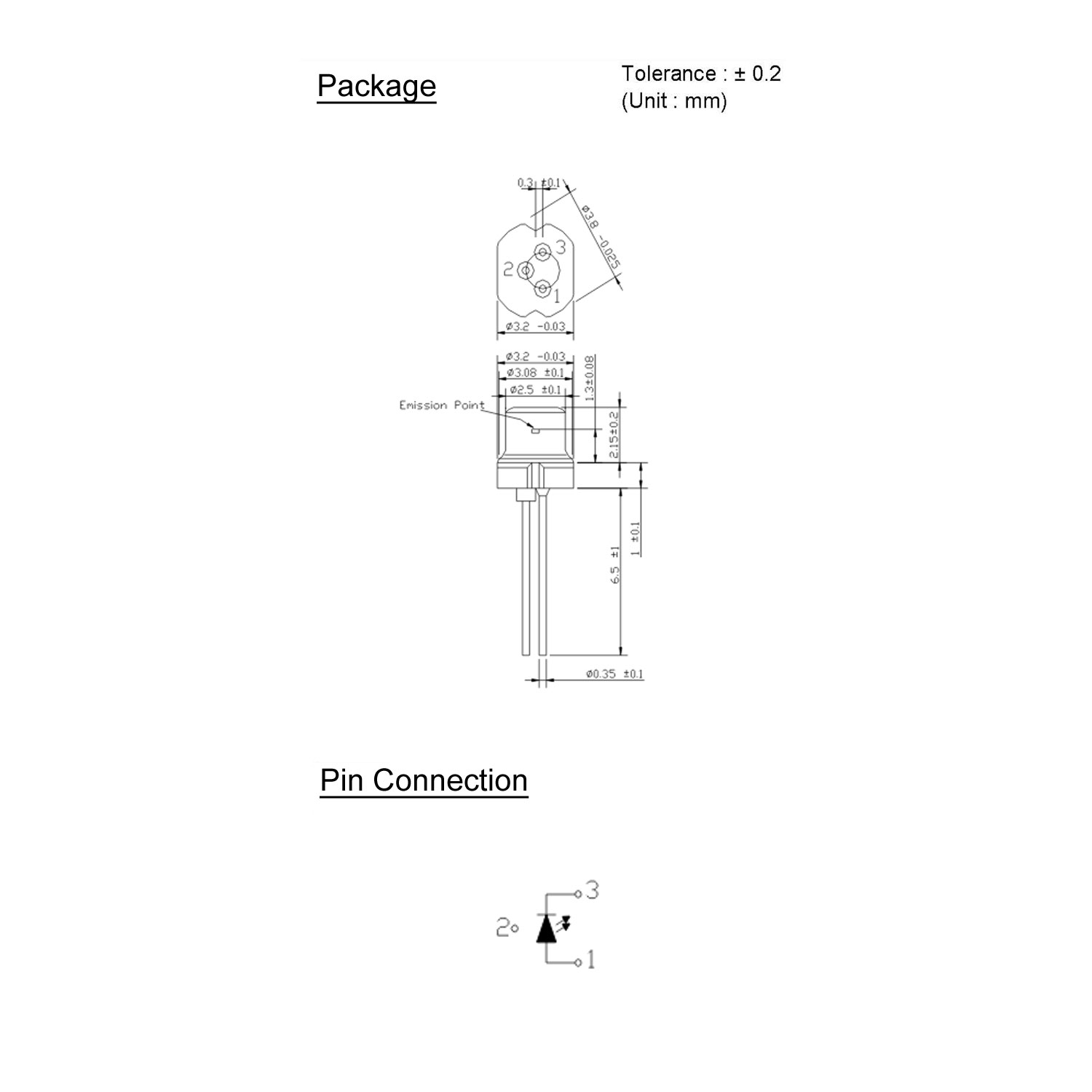

AD-52501 AD-52501 pin

520nm, 50mW Green Laser Diode

AD-52501

Feature

Arima Green Laser Diode
Wavelength: 520nm (typ.)
Output Power: 50mW
Package: TO38 (RoHS compliant)

Applications

Laser Projection
Biomedical Applications
Holography
Metrology

Driver ICs

This diode is best driven using the following IC Haus driver:
iC-HK
iC-HB
SKU: 520nm, 50mW Green Laser Diode Category: Tags: , ,

Product Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
50
mW
Reverse
Voltage
VR
+2
V
Operating
Current
IF
160
mA
Operating
Temperature
Topr
+0 to +60
°C
Storage
Temperature
Tstg
-40 to +85
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Operating
Current
Iop
–
150
160
mA
CW
Operating
Voltage
VF
–
+7.0
+8.0
V
–
Beam
Θ//
4.0
7.0
11.0
deg
Pop=50mW
Divergence
Θ⊥
16.0
22.0
25.0
deg
Pop=50mW
Peak
Wavelength
λp
515
520
530
nm
Pop=50mW
Polarisation
Pgr
20:1
–
–
Pop=50mW

Additional Information

Colour

Green (510 – 532nm)
Operating Current

160
Operating Voltage

7.0 Typ. 8.0 Max.
Power Output

50mW
Wavelength

520nm
PIN Type

G (no PD)
Package Type

TO-38
Driver IC

iC-HB, iC-HK
