PLT5-520-B5
Feature
OSRAM Green Laser Diode
Wavelength: 515-520nm (typ.)
Output Power: 30mW
Package: TO56 (RoHS compliant)
Applications
Laser Projection
Biomedical Applications
Holography
Metrology
Driver ICs
This diode is best driven using the following IC Haus driver:
Downloads
Description

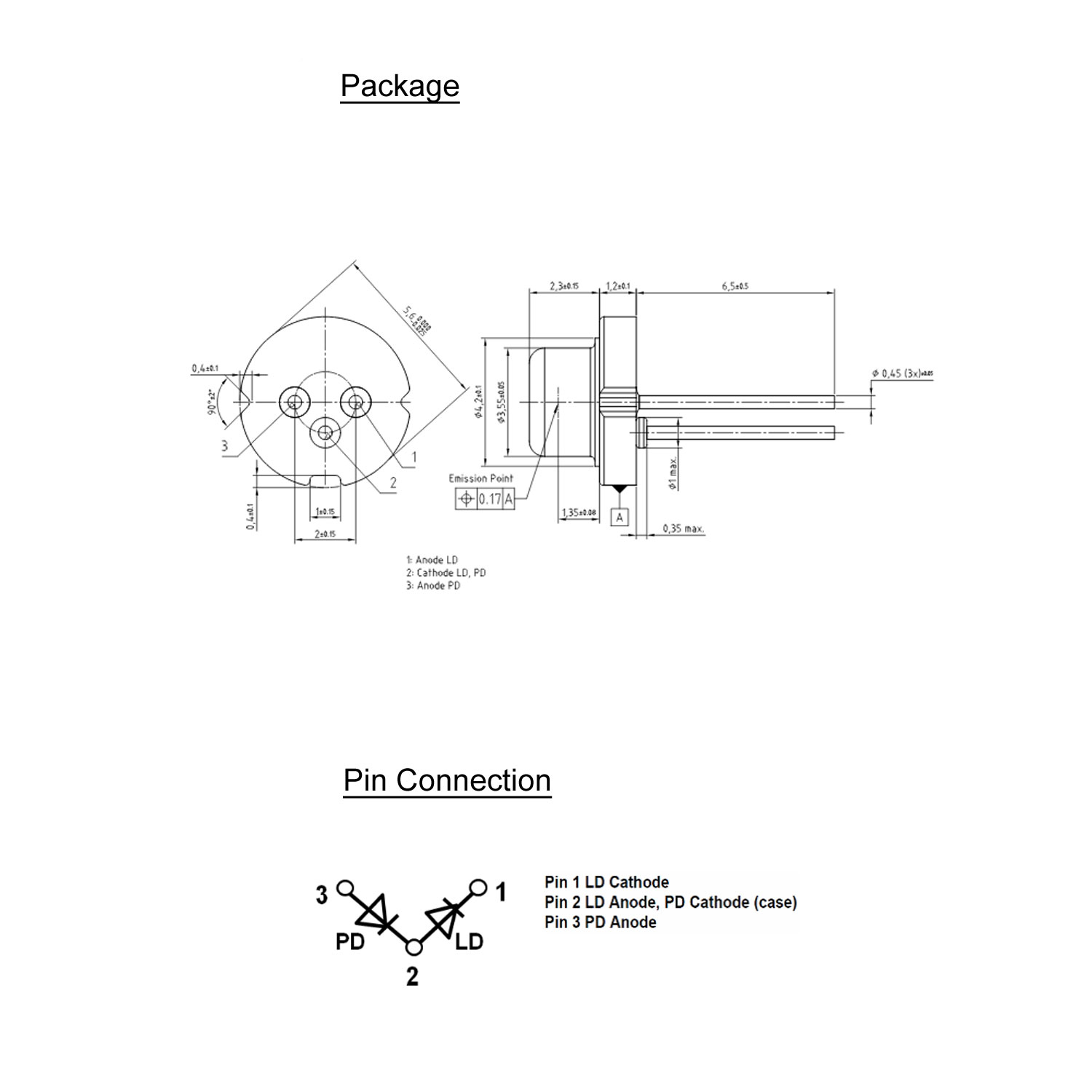

Absolute Maximum Ratings
(Ta=25°C)
Items
|
Symbols
|
Values
|
Units
|
Optical Output
Power |
Po
|
30
|
mW
|
Reverse
Voltage |
VR
|
+2
|
V
|
Operating
Current |
IF
|
200
|
mA
|
Operating
Temperature |
Topr
|
-20 to +60
|
°C
|
Storage
Temperature |
Tstg
|
-40 to +85
|
°C
|
Soldering
Temperature |
Tsolder
|
+260
|
°C
|
Electrical and Optical Characteristics
(Ta=25°C)
Item
|
Symbols
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
Operating
Current |
Iop
|
–
|
120
|
140
|
mA
|
CW
|
Operating
Voltage |
VF
|
–
|
+6.7
|
+8.0
|
V
|
–
|
Spectral
Width (FWHM) |
Δλ
|
–
|
2
|
–
|
nm
|
Pop=30mW
|
Beam
Divergence |
Θ// x Θ⊥
|
4×16
|
7×22
|
11×25
|
deg
|
Pop=30mW
|
Peak
Wavelength |
λp
|
515
|
–
|
520
|
nm
|
Pop=30mW
|
Polarisation
|
Pgr
|
–
|
100:1
|
–
|
Pop=30mW
|
|
Monitor
Current |
Im
|
–
|
60
|
–
|
μA
|
Pop=30mW
|
Additional information
Colour | Green (510 – 532nm) |
---|---|
Operating Current | 200 |
Operating Voltage | 6.7 Typ. 8.0 Max. |
Power Output | 30mW |
Wavelength | 515nm, 520nm |
PIN Type | N or A (inc. PD) |
Package Type | TO-56 |
Driver IC | iC-HB, iC-HK, iC-NZ, iC-NZN |
