SML-525-50-1-R
Feature
Green Laser Module
Wavelength: 525nm (typ.)
Output Power: 50mW
Package: ø10mm (RoHS compliant)
Based on Pure Green Laser Diode

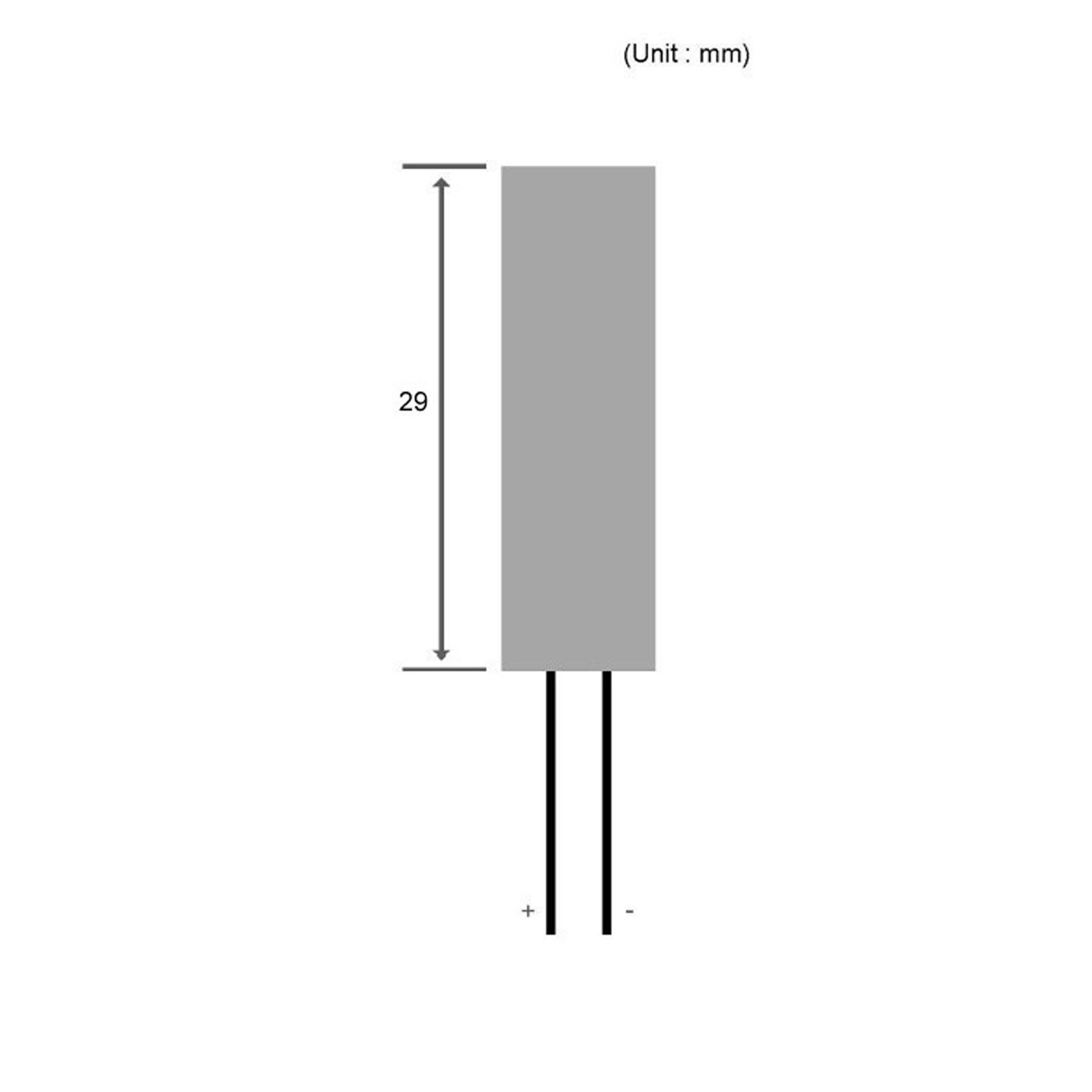

Length: 29mm
Applications
Industrial Applications
Description
Absolute Maximum Ratings
(Ta=25°C)
|
Items
|
Symbols
|
Values
|
Units
|
|
Optical Output
Power |
Po
|
50
|
mW
|
|
Operating
Voltage |
VCC
|
+8
|
V
|
|
Operating
Temperature |
Topr
|
+10 to +35
|
°C
|
|
Storage
Temperature |
Tstg
|
-40 to +85
|
°C
|
Electrical and Optical Characteristics
(Ta=25°C)
|
Item
|
Symbols
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
Operating
Current |
Iop
|
–
|
–
|
300
|
mA
|
CW
|
|
Supply
Voltage |
Vcc
|
–
|
+8
|
–
|
V
|
–
|
|
Beam (*2)
Diameter |
2wr
|
–
|
–
|
6
|
mm
|
Δl=10m
|
|
Beam (*2)
Divergence |
2Θr
|
–
|
–
|
0.3
|
mrad
|
–
|
|
Peak
Wavelength |
λp
|
520
|
525
|
530
|
nm
|
–
|
Additional information
| Colour | Green (510 – 532nm) |
|---|---|
| Wavelength | 525nm |
| Power Output | 50mW |
| Operating Voltage | 8 |
| Operating Current | 300 Max. |
