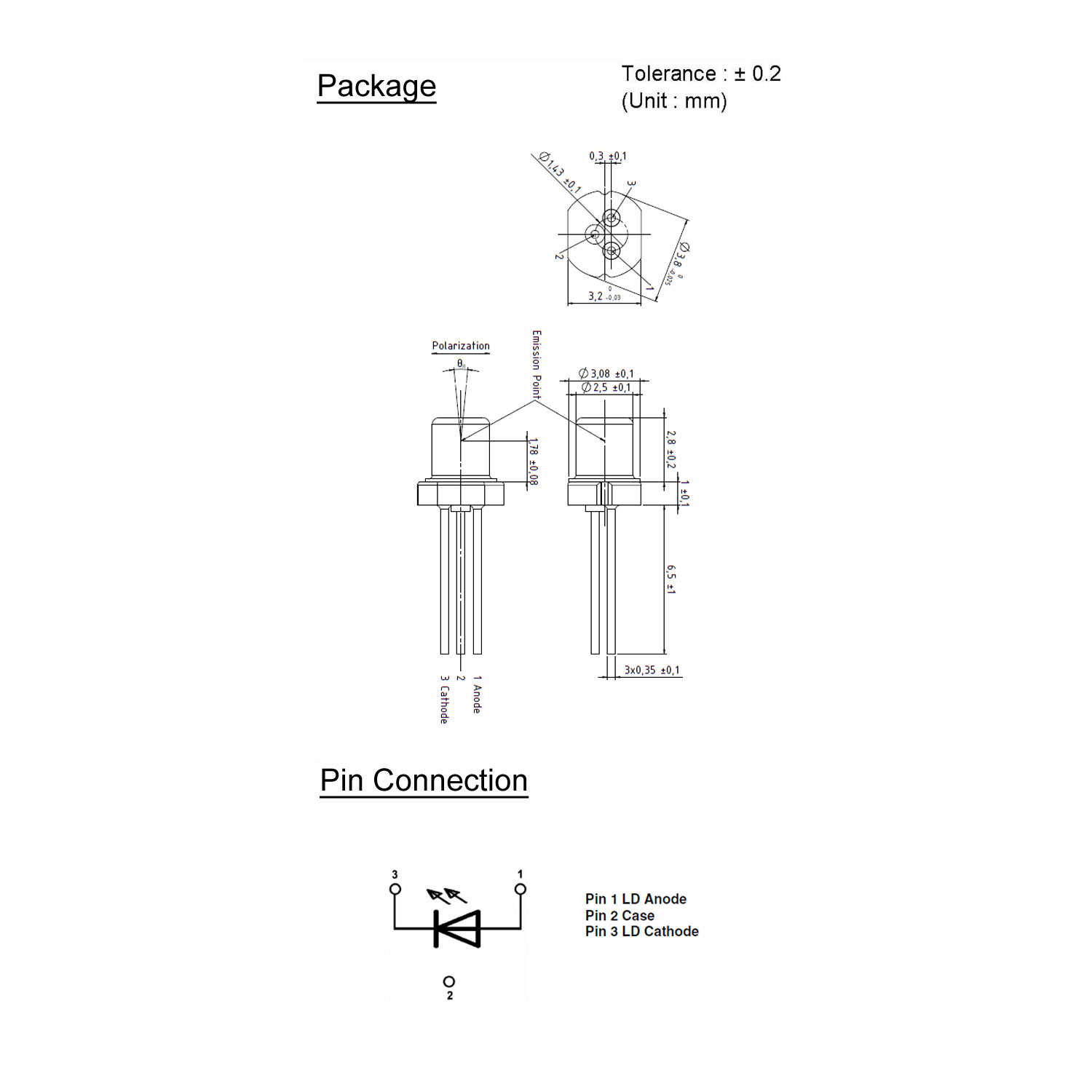

PL-450B PL-450B pin

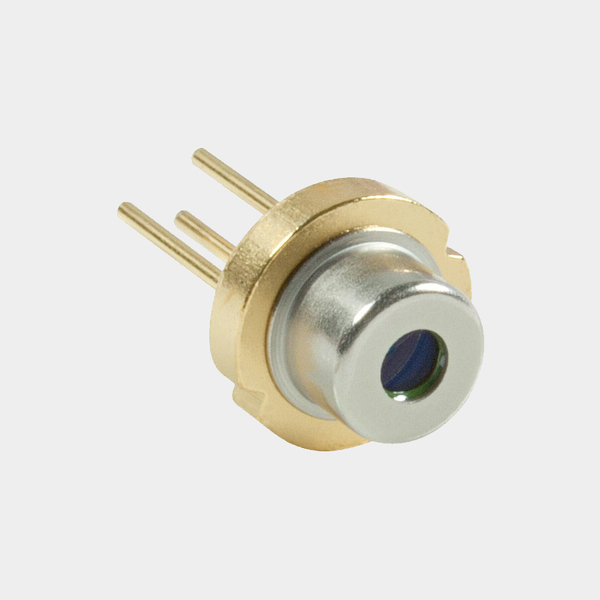

450nm, 80mW Blue Laser Diode

PL-450B

Feature

OSRAM Blue Laser Diode
Wavelength: 450nm (typ.)
Output Power: 80mW
Package: TO38 (RoHS compliant)
Efficient radiation source for CW and pulsed operation

Applications

Instrumentation
Biomedical Applications
Holography
Metrology

Driver ICs

This diode is best driven using the following IC Haus driver:
iC-HB
iC-HG
iC-HKB
SKU: 450nm, 80mW Blue Laser Diode Category: Tags: , ,

Product Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
80
mW
Operating
Voltage
VCC
+6
V
Operating
Current
IF
165
mA
Operating
Temperature
Topr
+10 to +70
°C
Storage
Temperature
Tstg
-40 to +85
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Operating
Current
Iop
–
100
145
mA
CW
Operating
Voltage
VF
–
+5.8
+7.0
V
–
Spectral
Width (FWHM)
Δλ
–
2
–
nm
Pop=80mW
Beam
Divergence
Θ// x Θ⊥
4×11
–
18×25
deg
Pop=80mW
Peak
Wavelength
λp
440
450
460
nm
Pop=80mW

Additional Information

Colour

Blue (445 – 488nm)
Operating Current

165
Operating Voltage

5.8 Typ. 7.0 Max.
Power Output

80mW
Wavelength

450nm
PIN Type

G (no PD)
Package Type

TO-38
Driver IC

iC-HB, iC-HG, iC-HKB
