SDL-405-5-511M
Click to enlarge

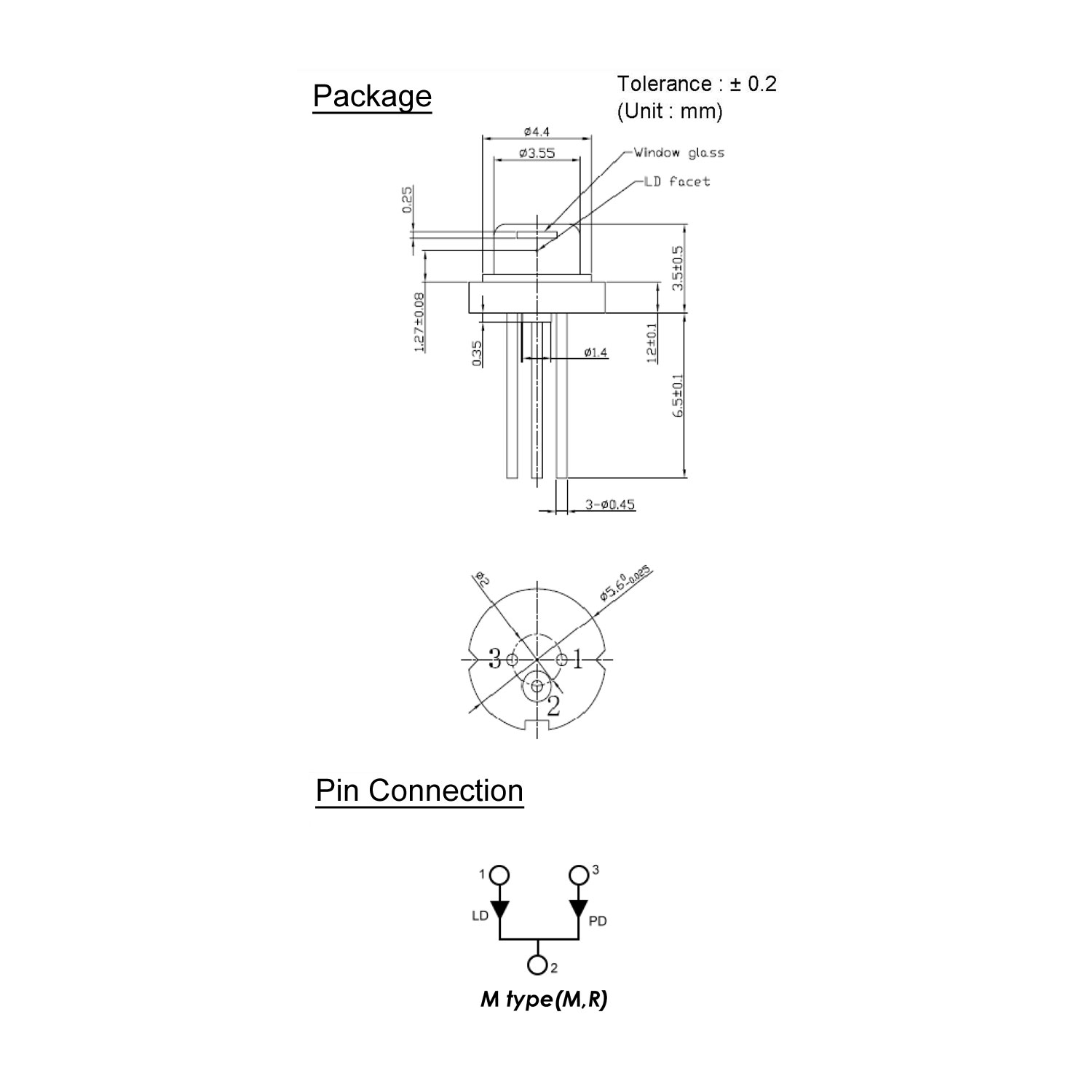

SDL-405-5-511M SDL-405-5-511M pin

405nm, 5mW Blue-Violet Laser Diode

SDL-405-5-511M

Feature

Semicom Blue-Violet Laser Diode
Wavelength: 405nm (typ.)
Output Power: 5mW
Package: TO18 (RoHS compliant)
Efficient radiation source for CW and pulsed operation

Applications

Industrial Use

Driver ICs

This diode is best driven using the following IC Haus driver:
iC-NZN
iC-WKM
iC-HKB
SKU: 405nm, 5mW Blue-Violet Laser Diode Category: Tags: , ,

Product Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
5
mW
Operating
Voltage
VCC
+5
V
Operating
Current
IF
45
mA
Operating
Temperature
Topr
0 to +70
°C
Storage
Temperature
Tstg
-40 to +80
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Optical Output
Power
Po
–
8
–
mW
–
Threshold
Current
Ith
–
20
40
mA
Po=5mW
Operating
Current
Iop
–
25
45
mA
Po=5mW
Differential
Efficiency
η
–
1.3
–
mW/mA
Po=5mW
Operating
Voltage
Vop
–
4.8
5.6
V
Po=5mW
Peak
Wavelength
λp
400
405
410
nm
Po=5mW
Monitor
Current
Im
0.1
0.2
1.0
mA
Po=5mW
Beam *4
Θ//
6.0
9.0
12.0
deg
Po=5mW
Divergence
Θ⊥
16
20
24
deg
Po=5mW
Beam
ΔΘ//
-3
–
+3
deg
Po=5mW
Angle
ΔΘ⊥
-2
–
+2
deg
Po=5mW

Additional Information

Colour

Blue Violet (405nm)
Operating Current

45
Operating Voltage

4.8 Typ. 5.6 Max.
PIN Type

M or B (inc. PD)
Power Output

5mW
Wavelength

405nm
Package Type

TO-18
Driver IC

iC-HKB, iC-NZN, iC-WKM
