Marine

HMI systems certified for use in marine vessels including ships, and offshore platforms.

Showing all 6 results

  • TIP-190NT

    Description

    The TIP-190NT is a high performance rack mount panel PC with multi-processing support due to the Intel Core i3-2310M CPU and is designed to be lowered into the front of a console. The built-in 19″ LCD panel provides 1280 x 1024 (SXGA) resolution, and the 5-wire resistive touch sensor provides precise control.
    The dual Gigabit LAN and four USB ports are among the many I/O ports available, along with optional AC or DC power supply.

    Features

    19″ High Performance Panel PC
    Supports Core i3-2310M CPU
    Dual Gigabit LAN
    5 wire resistive touch screen
    Support up to 8GB of RAM
    Rack/Console mount

    Suitable for:

    Marine Systems
    Industrial Automation

    Downloads:

    Datasheet
    Read more

  • TIP-170NT

    Description

    The TIP-170NT is a high performance rack mount panel PC with multi-processing support due to the Intel Core i3-2310M CPU and is designed to be lowered into the front of a console. The built-in 17″ LCD panel provides 1280 x 1024 (SXGA) resolution, and the 5-wire resistive touch sensor provides precise control.
    The dual Gigabit LAN and four USB ports are among the many I/O ports available, along with optional AC or DC power supply.

    Features

    17″ High Performance Panel PC
    Supports Core i3-2310M CPU
    Dual Gigabit LAN
    5 wire resistive touch screen
    Support up to 8GB of RAM
    Rack/Console mount

    Suitable for:

    Marine Systems
    Industrial Automation

    Downloads:

    Datasheet
    Read more

  • TIP-150NT

    Description

    The TIP-150NT is a high performance rack mount panel PC with multi-processing support due to the Intel Core i3-2310M CPU and is designed to be lowered into the front of a console. The built-in 15″ LCD panel provides 1024 x 768 (XGA) resolution, and the 5-wire resistive touch sensor provides precise control.
    The dual Gigabit LAN and four USB ports are among the many I/O ports available, along with optional AC or DC power supply.

    Features

    15″ High Performance Panel PC
    Supports Core i3-2310M CPU
    Dual Gigabit LAN
    5 wire resistive touch screen
    Support up to 8GB of RAM
    Rack/Console mount

    Suitable for:

    Marine Systems
    Industrial Automation

    Downloads:

    Datasheet
    Read more

  • TIP-121NT

    Description

    The TIP-121NT is a high performance rack mount panel PC with multi-processing support due to the Intel Core i3-2310M CPU and is designed to be lowered into the front of a console. The built-in 12.1″ LCD panel provides 1024 x 768 (XGA) resolution, and the 5-wire resistive touch sensor provides precise control.
    The dual Gigabit LAN and four USB ports are among the many I/O ports available, along with optional AC or DC power supply.

    Features

    12.1″ High Performance Panel PC
    Supports Core i3-2310M CPU
    Dual Gigabit LAN
    5 wire resistive touch screen
    Support up to 8GB of RAM
    Rack/Console mount

    Suitable for:

    Marine Systems
    Industrial Automation

    Downloads:

    Datasheet
    Read more

  • TIP-080NT

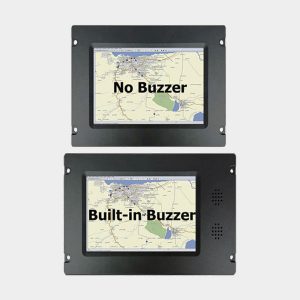

    Description

    The TIP-080NT is a fanless rack mount panel PC with low power consumption due to the ARM Cortex A8 CPU and is designed to be lowered into the front of a console. The built-in 8.0″ LCD panel provides 800 x 600 (SVGA) resolution, and the 4-wire resistive touch sensor provides precise control.
    The CAN-BUS and USB ports are among the many I/O ports available, along with 18~24VDC power supply.

    Features

    8.0″ Low Power Panel PC
    Supports ARM Cortex A8 CPU
    10/100 LAN
    4 wire resistive touch screen
    Optional Buzzer
    Rack/Console mount

    Suitable for:

    Marine Systems
    Industrial Automation

    Downloads:

    Datasheet
    Read more

  • TIP-070WT

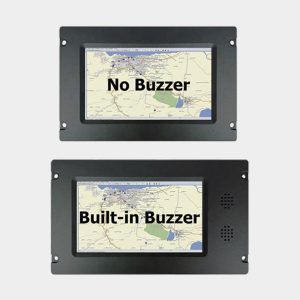

    Description

    The TIP-070WT is a fanless rack mount panel PC with low power consumption due to the ARM Cortex A8 CPU and is designed to be lowered into the front of a console. The built-in 7.0″ LCD panel provides 800 x 480 (WVGA) resolution, and the 4-wire resistive touch sensor provides precise control.
    The CAN-BUS and USB ports are among the many I/O ports available, along with 18~24VDC power supply.

    Features

    7.0″ Low Power Panel PC
    Supports ARM Cortex A8 CPU
    10/100 LAN
    4 wire resistive touch screen
    Optional Buzzer
    Rack/Console mount

    Suitable for:

    Marine Systems
    Industrial Automation

    Downloads:

    Datasheet
    Read more
