SDL-405-100-501G
Click to enlarge

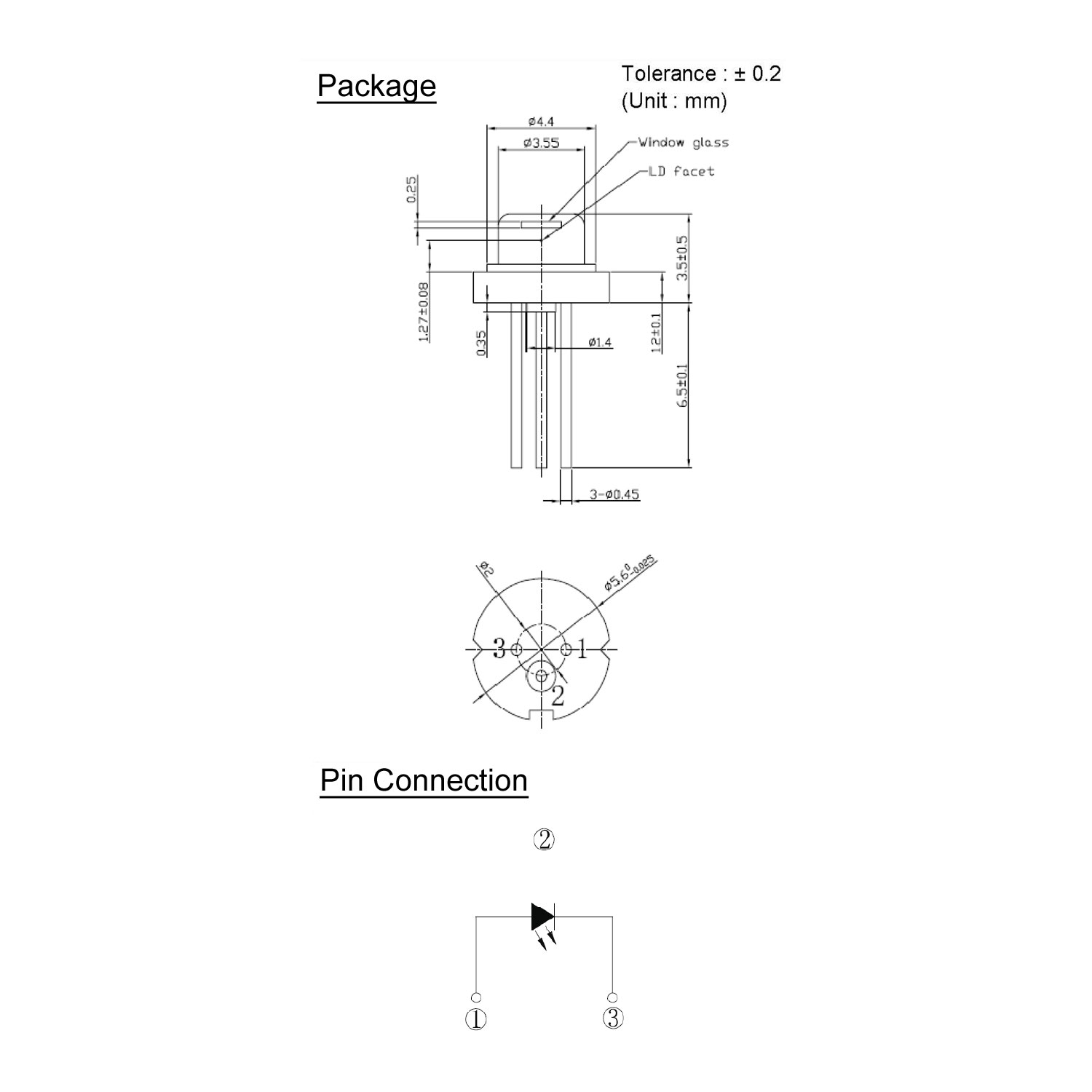

SDL-405-100-501G SDL-405-100-501E pin

405nm, 100mW Blue-Violet Laser Diode

SDL-405-100-501G

Feature

Semicom Blue-Violet Laser Diode
Wavelength: 405nm (typ.)
Output Power: 100mW
Package: TO18 (RoHS compliant)

Applications

Industrial Use

Driver ICs

This diode is best driven using the following IC Haus driver:
iC-HB
iC-HG
iC-HK
SKU: 405nm, 100mW Blue-Violet Laser Diode Category: Tags: , ,

Product Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
120
mW
Operating
Voltage
VCC
+5
V
Operating
Current
IF
130
mA
Operating
Temperature
Topr
-10 to +70
°C
Storage
Temperature
Tstg
-40 to +85
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Optical Output
Power
Po
–
100
120
mW
–
Threshold
Current
Ith
–
35
50
mA
Po=100mW
Operating
Current
Iop
–
120
130
mA
Po=100mW
Differential
Efficiency
η
1.2
1.4
1.9
mW/mA
Po=100mW
Operating
Voltage
Vop
–
4.8
5.5
V
Po=100mW
Peak
Wavelength
λp
400
405
410
nm
Po=100mW
Monitor
Current
Im
–
–
–
mA
–
Beam *4
Θ//
7.0
9.0
12.0
deg
Po=100mW
Divergence
Θ⊥
14
19
23
deg
Po=100mW
Beam
ΔΘ//
-2
–
+2
deg
Po=100mW
Angle
ΔΘ⊥
-3
–
+3
deg
Po=100mW

Additional Information

Colour

Blue Violet (405nm)
Operating Current

130
Operating Voltage

4.8 Typ. 5.5 Max.
PIN Type

G (no PD)
Power Output

100mW
Wavelength

405nm
Package Type

TO-18
Driver IC

iC-HB, iC-HG, iC-HK
