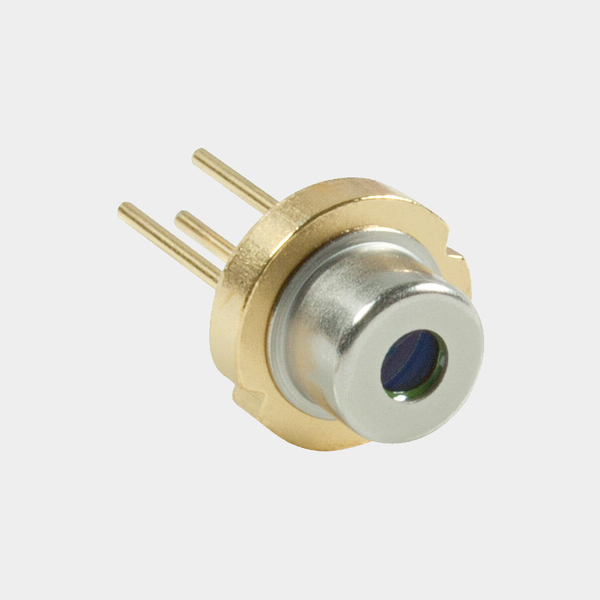

SDL-375-20-511M
Click to enlarge

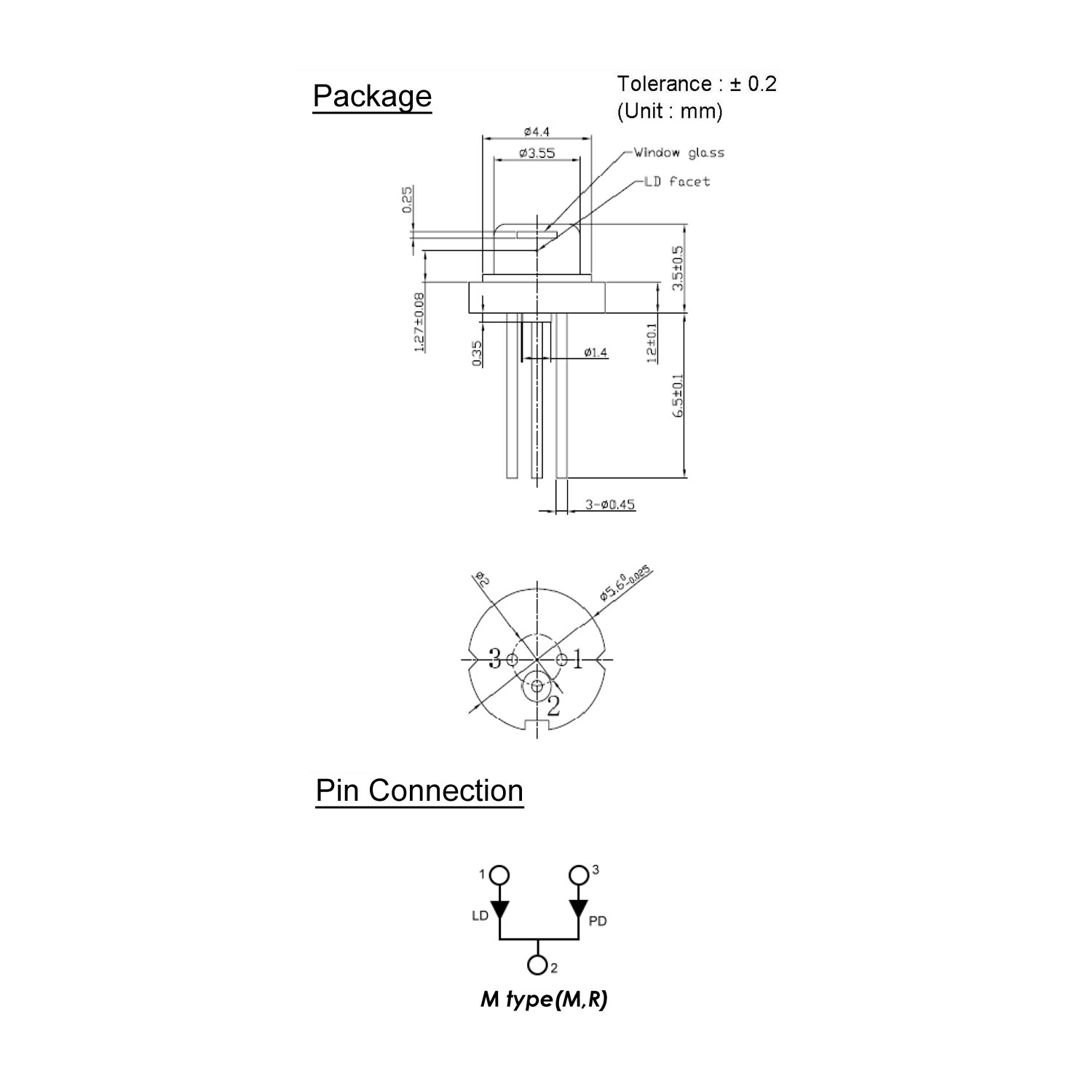

SDL-375-20-511M SDL-375-20-511M pin

375nm, 20mW Violet Laser Diode

SDL-375-20-511M

Feature

Semicom Violet (UV) Laser Diode
Wavelength: 375nm (typ.)
Output Power: 20mW
Package: TO18 (RoHS compliant)
Efficient radiation source for CW and pulsed operation

Applications

Industrial Use

Driver ICs

This diode is best driven using the following IC Haus driver:
iC-NZN
iC-WKM
iC-HKB
SKU: 375nm, 20mW Violet Laser Diode Category: Tags: , ,

Product Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
30
mW
Operating
Voltage
Vcc
+5
V
Operating
Current
IF
90
mA
Operating
Temperature
Topr
+15 to +30
°C
Storage
Temperature
Tstg
-40 to +80
°C

Electrical and Optical Characteristics

(Tc=25oC)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Optical Output
Power
Po
–
20
30
mW
–
Threshold
Current
Ith
–
50
65
mA
Po=20mW
Operating
Current
Iop
–
65
90
mA
Po=20mW
Differential
Efficiency
η
–
1.1
1.6
mW/mA
Po=20mW
Operating
Voltage
Vop
–
5.5
6.5
V
Po=20mW
Peak
Wavelength
λp
369
375
380
nm
Po=20mW
Monitor
Current
Im
–
0.5
–
mA
Po=20mW
Beam *4
Θ//
5.0
9.0
13.0
deg
Po=20mW
Divergence
Θ⊥
18
22
28
deg
Po=20mW
Beam
ΔΘ//
-3
–
+3
deg
Po=20mW
Angle
ΔΘ⊥
-4
–
+4
deg
Po=20mW

Additional Information

Colour

Violet (375nm)
Operating Current

90
Operating Voltage

5.5 Typ. 6.6 Max.
PIN Type

M or B (inc. PD)
Power Output

20mW
Wavelength

375nm
Package Type

TO-18
Driver IC

iC-HKB, iC-NZN, iC-WKM
