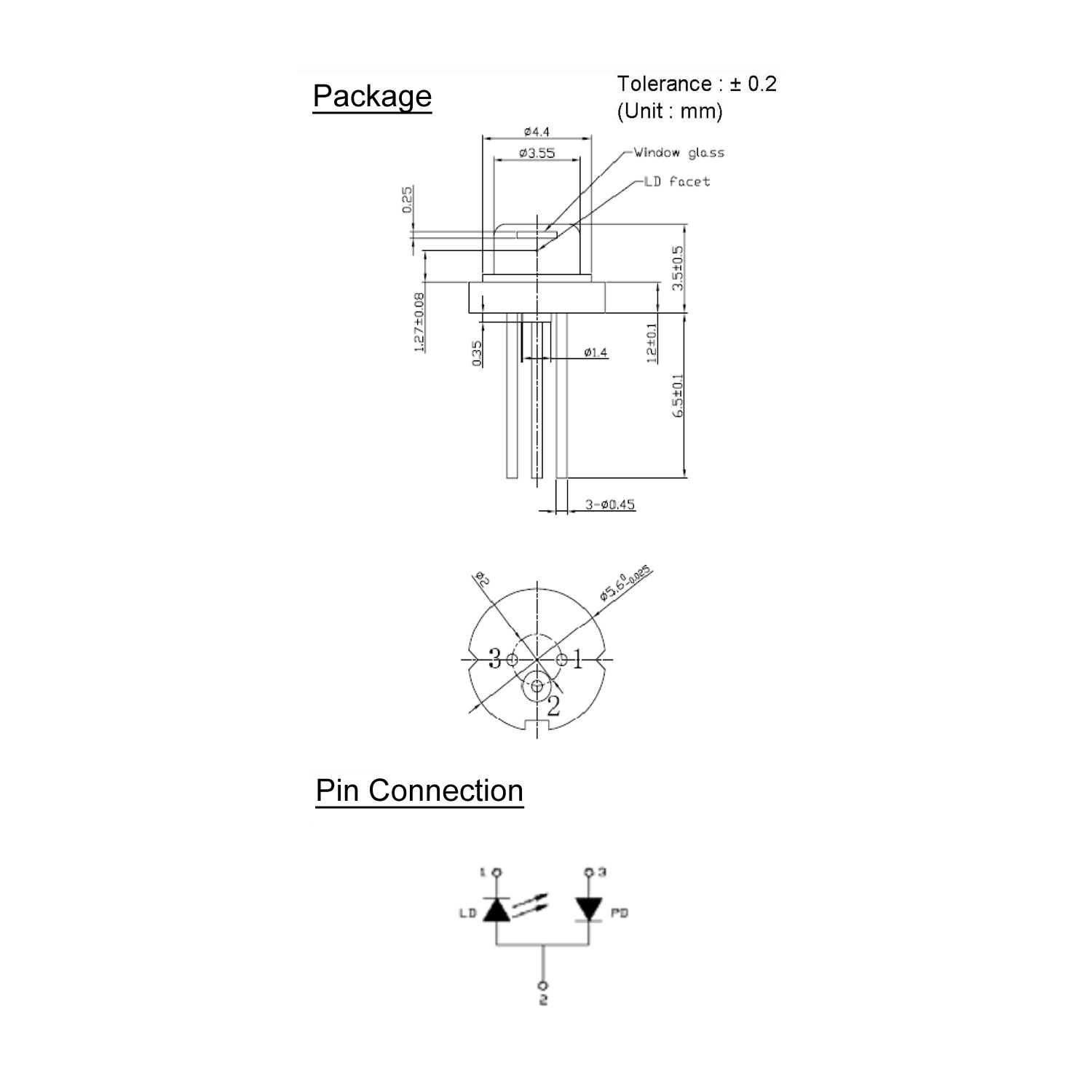

YDL-98Z01TL YDL-98Z01TL pin

980nm, 100mW Infra-Red Laser Diode

YDL-98Z01TL

Feature

Arima InfraRed Laser Diode
Wavelength: 980nm (typ.)
Output Power: 50mW
Package: TO18 (RoHS compliant)
Glass Lens & Photodiode

Applications

Barcode Reader
Security System

Driver ICs

This diode is best driven using the following IC Haus driver:
iC-NZN
iC-HK
iC-HB
SKU: 980nm, 100mW Infra-Red Laser Diode Category: Tags: , , ,

Product Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
100
mW
Reverse
Voltage
VR
+2
V
Operating
Current
IF
190
mA
Operating
Temperature
Topr
-10 to +40
°C
Storage
Temperature
Tstg
-15 to +85
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Optical Output
Power
Po
–
100
–
mW
–
Threshold
Current
Ith
–
40
50
mA
Po=100mW
Operating
Current
Iop
–
165
190
mA
Po=100mW
Differential
Efficiency
η
0.5
0.58
–
mW/mA
Po=75-100mW
Operating
Voltage
Vop
1.0
1.5
2.1
V
Po=100mW
Peak
Wavelength
λp
970
980
990
nm
Po=100mW
Monitor
Current
Im
0.4
0.9
1.4
mA
Po=100mW
Beam *4
Divergence
Θ// / Θ⊥
– / 27
6.0 / 32
– / 37
deg
Po=100mW

Additional Information

Colour

InfraRed (780 – 980nm)
Wavelength

980nm
Power Output

50mW
Operating Voltage

1.0 Min. 1.5. Typ. 2.1 Max.
Operating Current

190
PIN Type

N or A (inc. PD)
Package Type

TO-18
Driver IC

iC-HB, iC-HK, iC-NZN
