SML-520-1-3-R

Feature

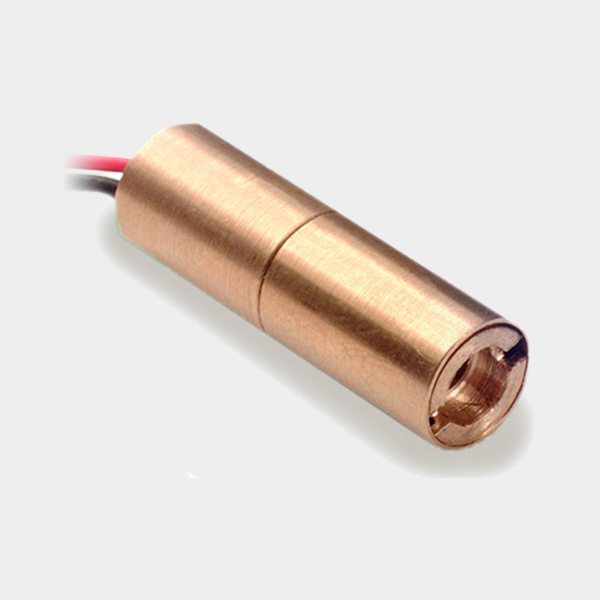

Green Laser Module
Wavelength: 520nm (typ.)
Output Power: 1mW
Package: ø10mm (RoHS compliant)
Length: 48mm

Applications

Barcode Reader
Industrial Alignment & Positioning
SKU: 520nm, 1mW Green Laser Module (10x48mm) Category: Tags: , ,

Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
1
mW
Operating
Voltage
VCC
+5
V
Operating
Temperature
Topr
0 to +65
°C
Storage
Temperature
Tstg
-40 to +85
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Operating
Current
Iop
120
mA
CW
Supply
Voltage
Vcc
+5
V
Beam (*2)
Divergence
2Θr
0.3
mrad
Peak
Wavelength
λp
515
520
525
nm

Additional information

Colour

Green (510 – 532nm)

Wavelength

520nm

Power Output

1mW

Operating Voltage

5

Operating Current

120 Max.
