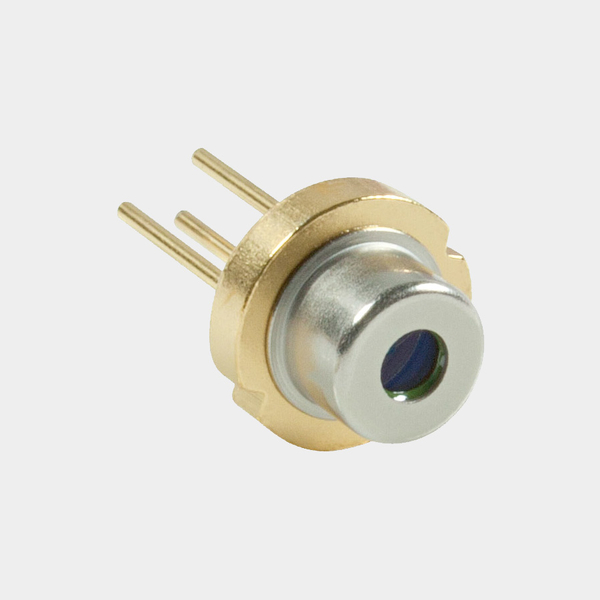

PLTB-450B
Click to enlarge

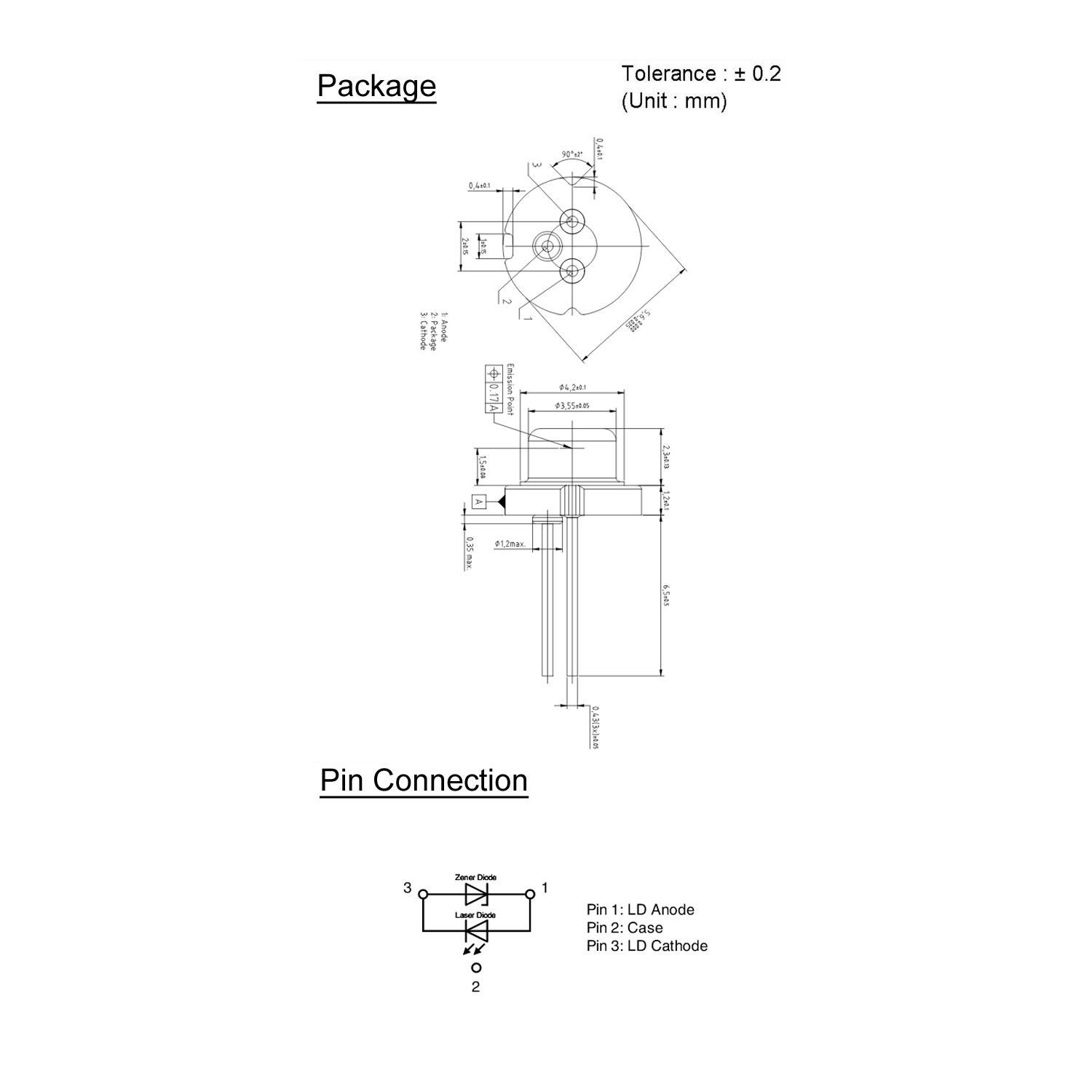

PLTB-450B PLTB-450B pin

450nm, 1.6W Blue Laser Diode (OSRAM)

PLTB-450B

Feature

OSRAM Blue Laser Diode
Wavelength: 450nm (typ.)
Output Power: 1.6W
Package: TO56 (RoHS compliant)
Efficient radiation source for CW and pulsed operation

Applications

Instrumentation
Biomedical Applications
Holography
Metrology

Driver ICs

This diode is best driven using the following IC Haus driver:
iC-HG
iC-HKB

Downloads

Datasheet
SKU: 450nm, 1.6W Blue Laser Diode (OSRAM) Category: Tags: , , , ,

Product Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
1600
mW
Reverse
Current
IR
20
mA
Operating
Current
IF
1500
mA
Operating
Temperature
Topr
-40 to +85
°C
Storage
Temperature
Tstg
-40 to +85
°C
Soldering
Temperature
Tsolder
+260
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Operating
Current
Iop
–
1200
1500
mA
CW
Operating
Voltage
VF
–
+4.8
+6.0
V
–
Spectral
Width (FWHM)
Δλ
–
–
–
nm
Pop=1600mW
Beam
Divergence
Θ// x Θ⊥
-x19
7×23
-x27
deg
Pop=1600mW
Peak
Wavelength
λp
440
450
460
nm
Pop=1600mW
Polarisation
Pgr
–
100:1
–
Pop=1600mW
Threshold
Current
Ith
–
200
300
mA
Pop=1600mW

Additional Information

Colour

Blue (445 – 488nm)
Operating Current

1500
Operating Voltage

4.8 Typ. 6.0 Max.
Power Output

1600mW
Wavelength

450nm
PIN Type

G (no PD)
Package Type

TO-56
Driver IC

iC-HG, iC-HKB
