IDL-98501TZ-B

Feature

Arima InfraRed Laser Diode
Wavelength: 980nm (typ.)
Output Power: 50mW

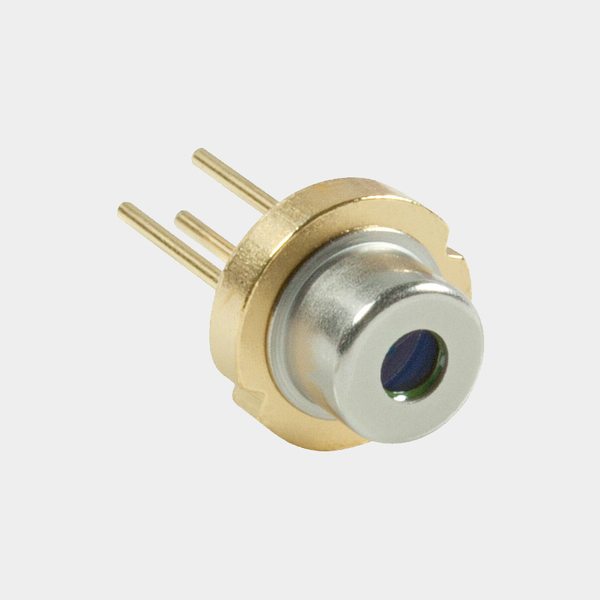

Package: TO18 (RoHS compliant)
FFP Single Laser Mode

Applications

Green Laser Pointer
Medical Applications
Security System

Driver ICs

This diode is best driven using the following IC Haus driver:
iC-HK
iC-HB
SKU: 980nm, 50mW Infra-Red Laser Diode Categories: , Tags: , , ,

Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
50
mW
Reverse
Voltage
VR
+2
V
Operating
Current
IF
85
mA
Operating
Temperature
Topr
-10 to +40
°C
Storage
Temperature
Tstg
-40 to +85
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Optical Output
Power
Po
–
50
–
mW
–
Threshold
Current
Ith
–
12
20
mA
Po=50mW
Operating
Current
Iop
–
75
85
mA
Po=50mW
Differential
Efficiency
η
0.5
0.65
0.8
mW/mA
Po=20-50mW
Operating
Voltage
Vop
–
1.5
2.1
V
Po=50mW
Peak
Wavelength
λp
965
980
995
nm
Po=50mW
Monitor
Current
Im
–
–
–
mA
–
Beam *4
Divergence
Θ// / Θ⊥
8.0 / 30
12.0 / 35
14.0 / 40
deg
Po=50mW
Beam
Angle
ΔΘ// / ΔΘ⊥
-3 / -3
– / –
+3 / +3
deg
Po=50mW

Additional information

Colour

InfraRed (780 – 980nm)
Wavelength

980nm
Power Output

50mW
Operating Voltage

1.5 Typ. 2.1 Max.
Operating Current

85

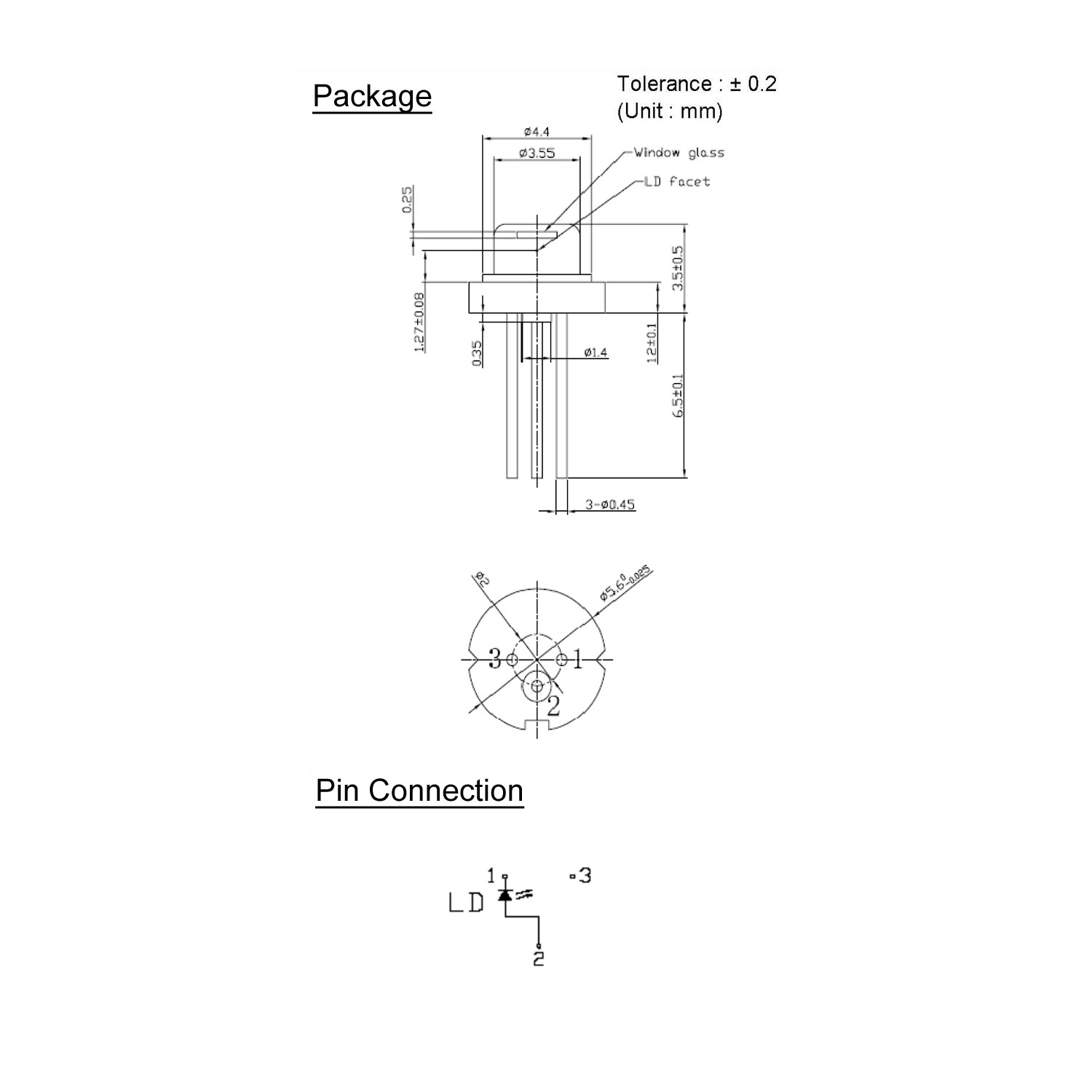

PIN Type

E (no PD)
Package Type

TO-18
Driver IC

iC-HB, iC-HK
