iC-WKN

N-type CW Laser Diode Driver, optimised for N-type laser diodes.

Features

CW operation up to 300mA from 1.4 to 15V supply voltage.
Rapid soft start after power-on typical within 70µs.
Simple power adjustment via resistor.
Control loop accuracy better than 1.5% with changes in temperature, supply voltage and load current.
Integrated reverse polarity protection for the iC and LD.
Modulation via the feedback inputs.
Wide monitor current range from 2.5µA to 6.25mA.
Strong suppression of transients with very small external capacitors; integrated flyback path.
Permanent shutdown with excessive temperature and overcurrent (i.e. if the laser diode is damaged or the feedback current path fails).

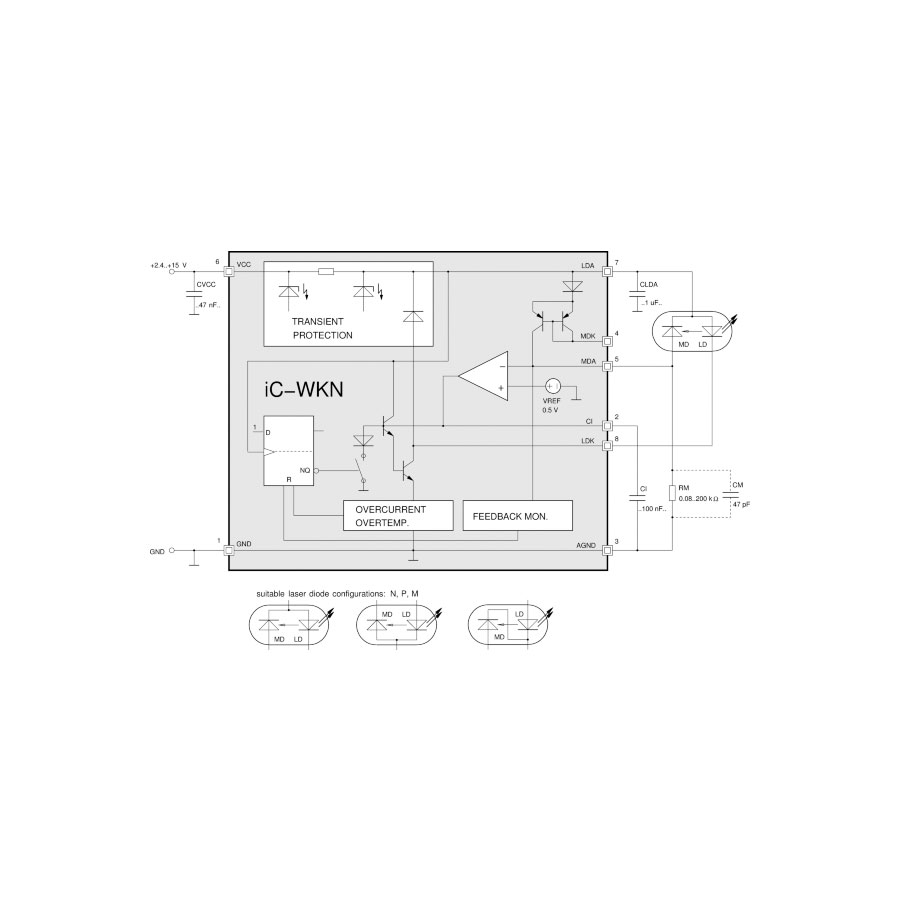

Two feedback inputs permit all current LD types to be used (M/P/N configurations).
Pin compatible to iC-WK and iC-WKL.

Datasheets


Manufacturer: iCHaus GmbH

SKU: N-type CW Laser Diode Driver Category: Tags: ,

Description

Applications

LD modules
LD pointers
Pilot lasers
Laser levels
Barcode readers
Distance measuring sensors

Packages

SO8
SO8 Package

DFN10
DFN10 Package

Additional information

LD Pinout

N

Type

Laser Driver

Control Type

APC

Laser Speed

CW

Supply Current

mA
