iC-MSB & iC-MSB2
Click to enlarge

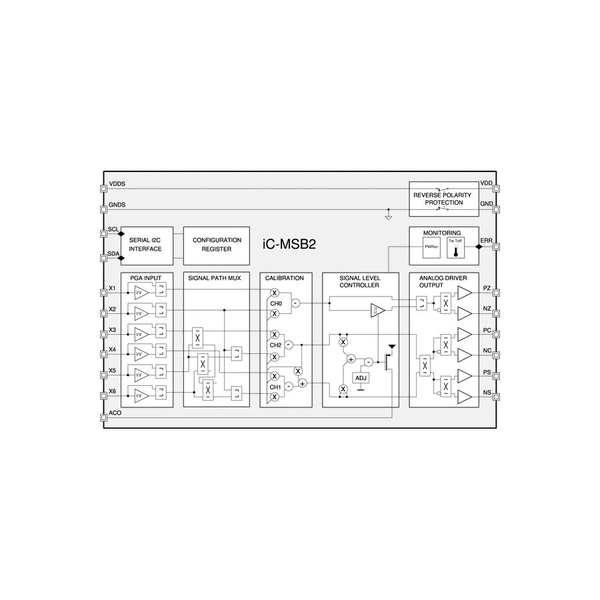

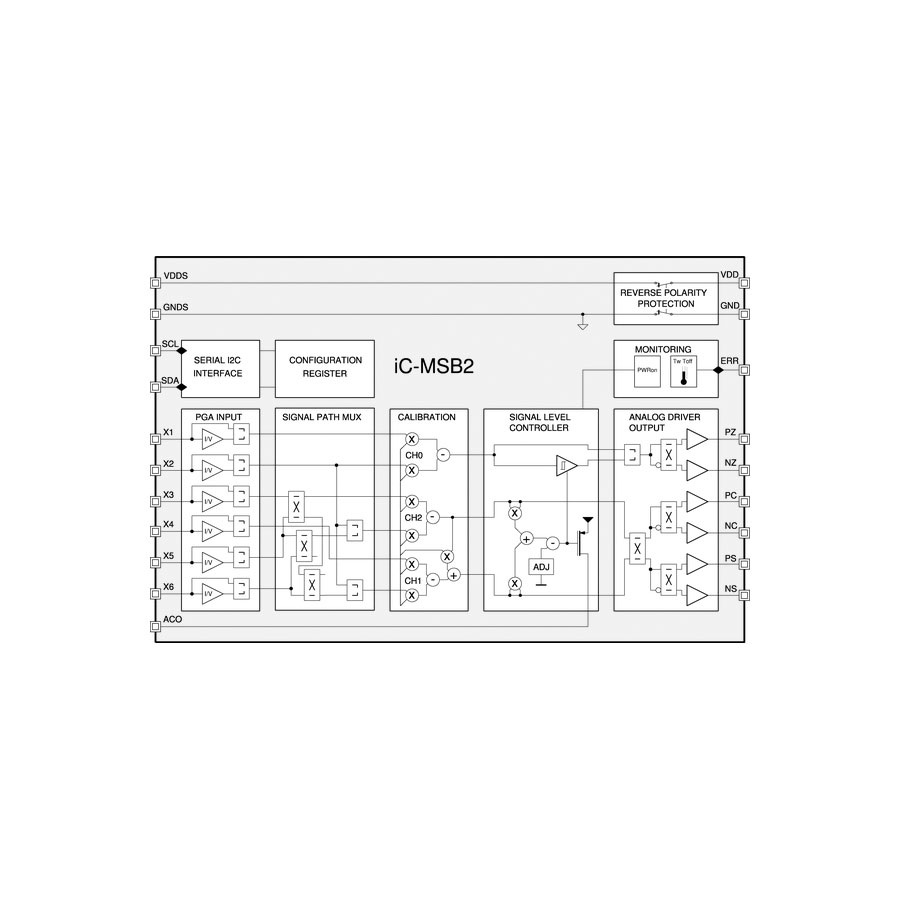

Sin/Cos Signal Conditioner with 1Vpp driver

iC-MSB & iC-MSB2

Sin/Cos Signal Conditioner with 1Vpp driver.


Flexible pin assignment due to signal path multiplexers.
Differential and single-ended PGA-in.
Variable input resistance grants current/voltage conversion.
Signal conditioning for offset, amplitude and phase.
Short-circuit-proof analog output drivers (1Vpp to 100Ω).
Controlled 50mA current source as LED or MR bridge supply grants stabilized output signal levels.
Device setup from serial EEPROM.
Signal and system monitoring with configurable alarm output.
Sub-system power switch offers reverse polarity protection for the overall system.
Immune against faulty output or supply connections.
Version iC-MSB suitable for SAFETY applications.
Version iC-MSB2 with output multiplexer (not for SAFETY).


Manufacturer: iCHaus GmbH
SKU: Sin/Cos Signal Conditioner with 1Vpp driver Category: Tags: , ,

Product Description


Programmable sensor interface for optical and magnetic position sensors
Incremental encoders
Linear encoders


TSSOP20 Package


Additional Information


Encoder – Signal Conditioners
