iC-PNH3312


∅33.2mm, 512 CPR Phased Array Nonius Encoder.


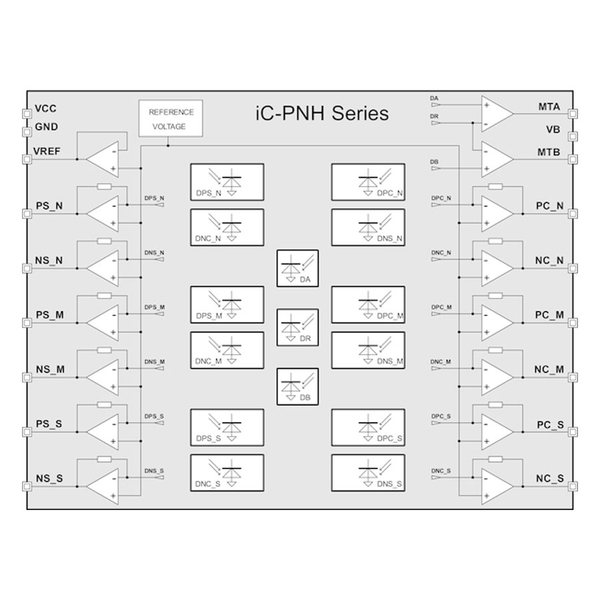

Features

Compact, high resolution absolute encoder ICs for up to 24 bit singleturn resolution (with nonius interpolation).
For code discs of ∅33.2mm.
512 CPR (2x 256/255/240 CPR).
14.5mm optical radius.
Monolithic 3-channel HD Phased Array with excellent signal matching.
Moderate track pitch for reduced cross talk.
Ultra low dark currents for operation up to high temperature.
Low noise amplifiers with high transimpedance gain.
Enhanced EMI tolerance by low impedance differential, short-circuit-proof, analog sine/cosine outputs.
Embedded sector detection by 2 digital tracks (2-bit Gray code).
Low power consumption from single 4.1 to 5.5V supply.
Operational temperature range of -40°C to +125°C.
Space saving optoQFN package (RoHS compliant).
Evaluation kits with LED and code disc available for sampling.


Datasheets


Manufacturer: iCHaus GmbH

SKU: ∅33mm, 512 CPR Phased Array Nonius Encoder Categories: , Tags: ,

Description

Applications

Absolute position encoders
AC servo feedback

Packages


oQFN32
5mm x 5mm
oQFN32 Package

Additional information

Type

Encoder – Optical
