Product Description
Applications
Motion control
Linear position encoders
Incremental off-axis rotary encoders
Packages
TSSOP20
Click to enlarge

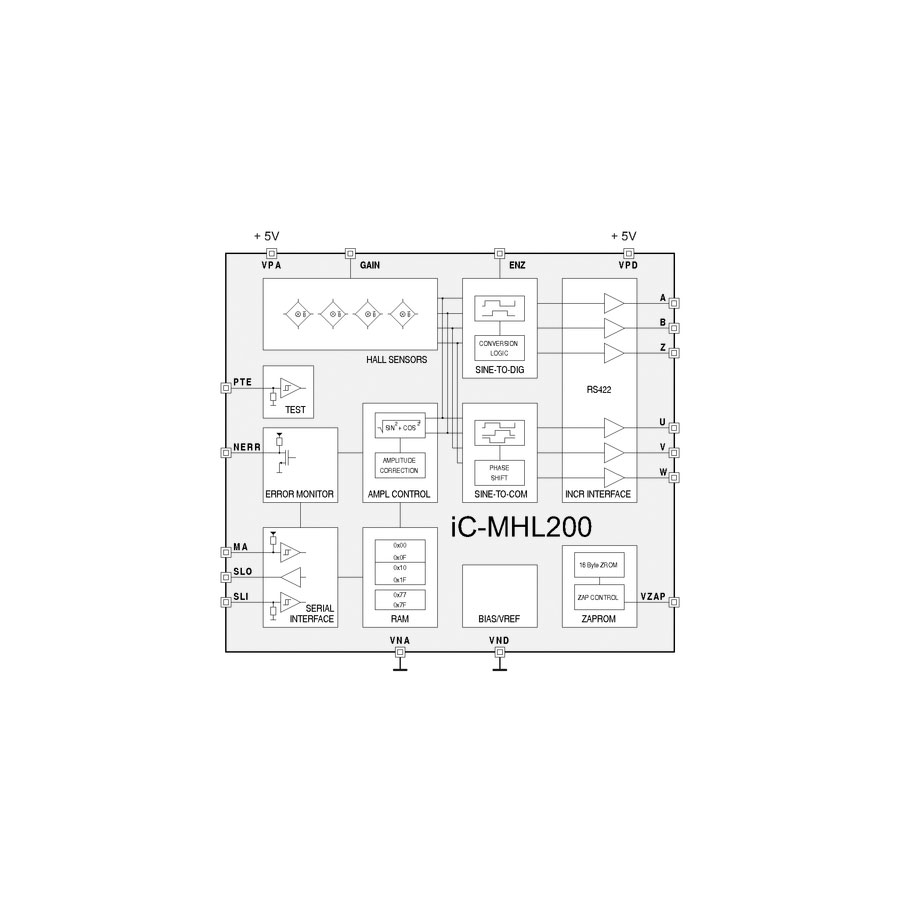

12-Bit Linear / Rotary Position Hall Encoder
iC-MHL200
12-Bit Linear / Rotary Position Hall Encoder.
Features
Real-time system for linear speed up to 8m/s at full resolution.
Absolute position within the magnetic period of 4mm.
12-bit interpolation w. 4096 increments, resolution <1μm.
Automatic signal offset compensation.
Automatic amplitude control for optimum operating point.
Programmable features: interpolation factor, hysteresis, minimum phase distance, zero position and code direction.
Electronic index generation with multi purpose enable input.
RS422-compatible A/B/Z outputs for encoder quadrature signals with up to 8MHz edge rate.
Serial I/O interface for high-speed data output (BiSS/SSI) and configuration (BiSS).
Zener-Zap ROM for non-volatile set-up and OEM data.
Signal monitoring: loss of signal, excessive frequency.
Single 5V supply.
Extended temperature range of -40 to +125°C.
Datasheets
Manufacturer: iCHaus GmbH
Additional Information
| Type | Encoder – Magnetic |
|---|
