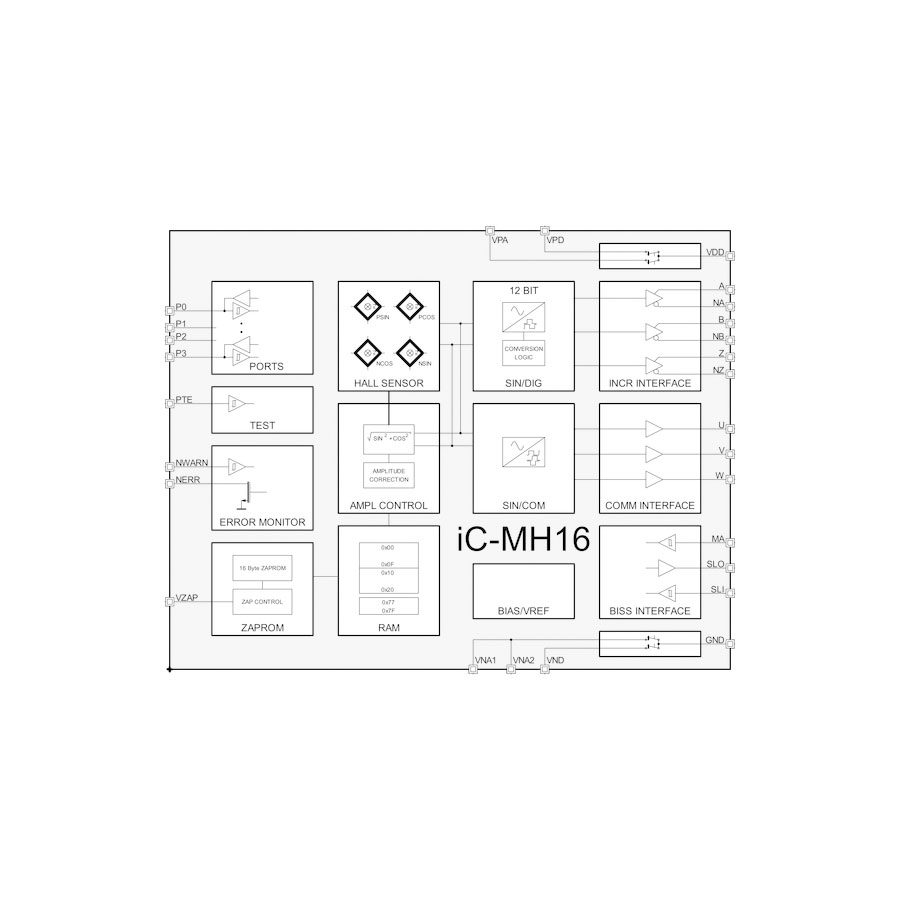

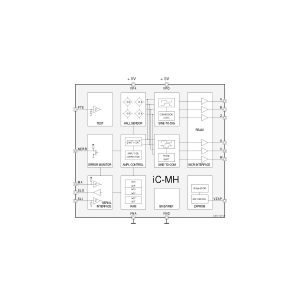

12 Bit Angular Hall Encoder


12 Bit Angular Hall Encoder.


Real-time system for full resolution at up to 200,000 rpm.
Integrated Hall sensors with automatic offset compensation.
4x sensor arrangement for fault-tolerant adjustment.
Amplitude control for optimum operating point.
FlexCount® interpolator with 1 to 1024CPR, resolution up to 4096 / 0.08°.
UVW commutation signals with 1 to 16CPR, for motors of up to 16 pole pairs.
Programmable resolution, hysteresis, edge spacing, zero position and rotating direction.
Up to 16MHz incremental edge rate.
RS422-compatible AB encoder signals with index Z.
BiSS/SSI interface for data output and configuration.
Integrated Zapping ROM for default setup and OEM data.
Errors signalized via pin and serial interface.
Single 5V supply with reversed-polarity monitoring and sub-system switching.
Extended temperature range from -40 to +125°C.


Manufacturer: iCHaus GmbH
SKU: 12 Bit Angular Hall Encoder Category: Tags: ,

Product Description


Digital angular sensor technology, 0–360°
Incremental angular encoder
Absolute angular encoder
Brushless motors
Motor feedback
Rotational speed control


QFN28 Package


Additional Information


Encoder – Magnetic
