iC-MA
Click to enlarge

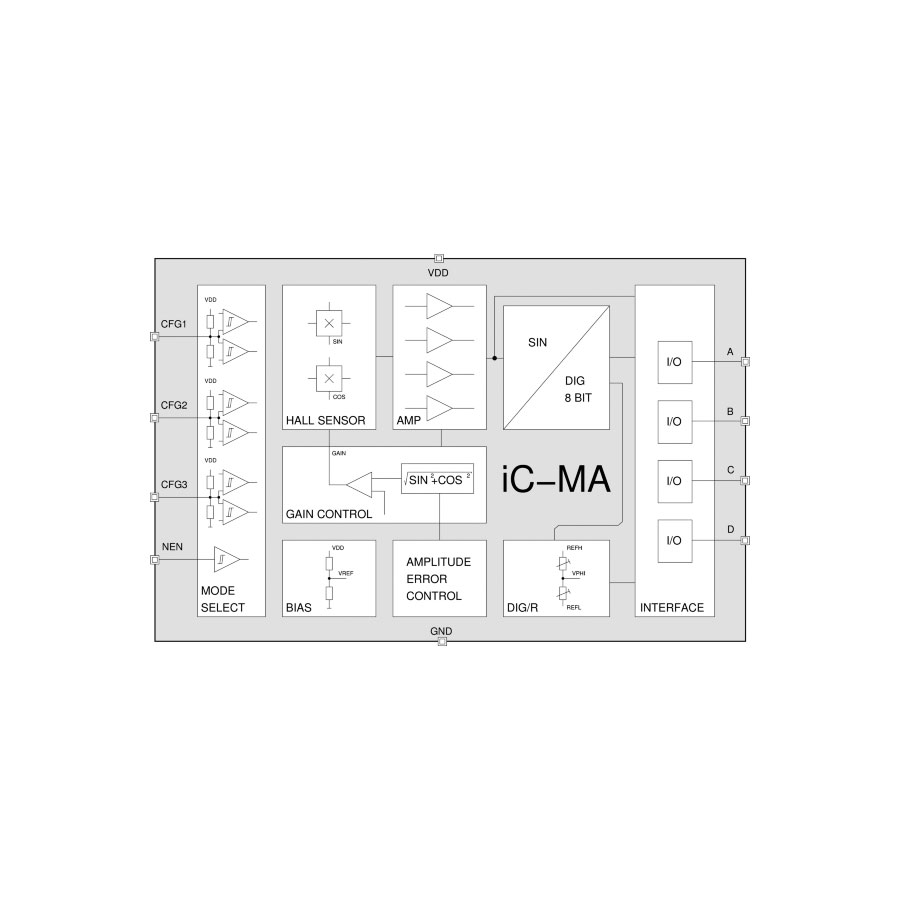

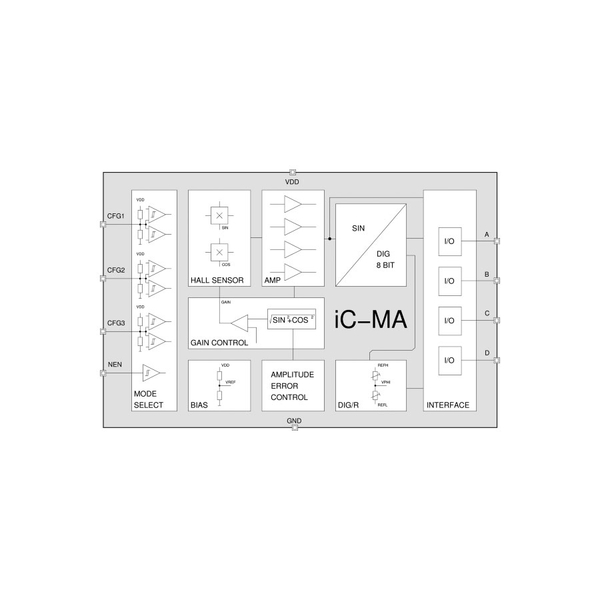

Angular Hall Encoder cascadable, with 8 bit resolution

iC-MA

Angular Hall Encoder cascadable, with 8 bit resolution.

Features

Resolution of 64, 128 and 256 positions within 360°.
Rotation speed of up to 60,000rpm.
Outputs configurable to provide analog and digital signals.
Fail signal for low magnetic strength.
Cascading multiple iC-MAs allows the use of a single bus.
Enable input for low power standby.
Small DFN10 package (4x4x1mm).
Wide operating temperature range of -40 to +125°C.

Datasheets

iC-MA Datasheet

Demo Board MA1D Datasheet

Angle Sensor NQ5D Datasheet

Manufacturer: iCHaus GmbH
SKU: Angular Hall Encoder cascadable, with 8 bit resolution Category: Tags: ,

Product Description

Applications

Contactless rotary switch
Digital potentiometer
Angular encoding
Motion control and robotics
Positioning and servo systems
Commutation of brushless DC motors
Vehicle control
Office equipment
Flow meter
Household appliance
Joystick and front panel control

Packages

DFN10
DFN10 Package

Additional Information

Type

Encoder – Magnetic
