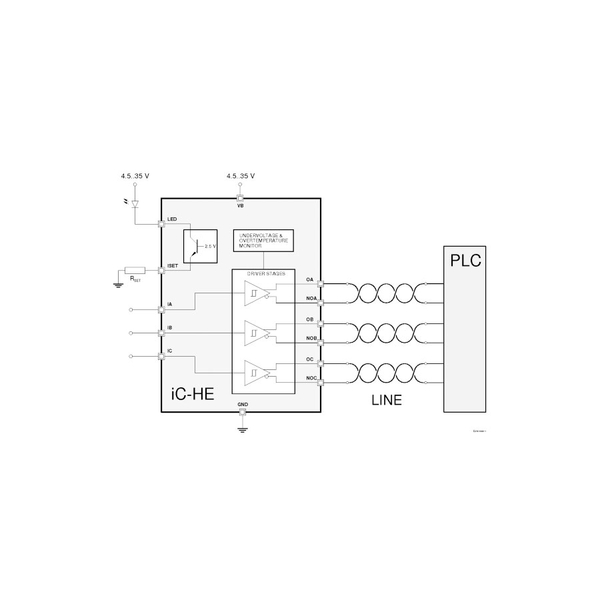

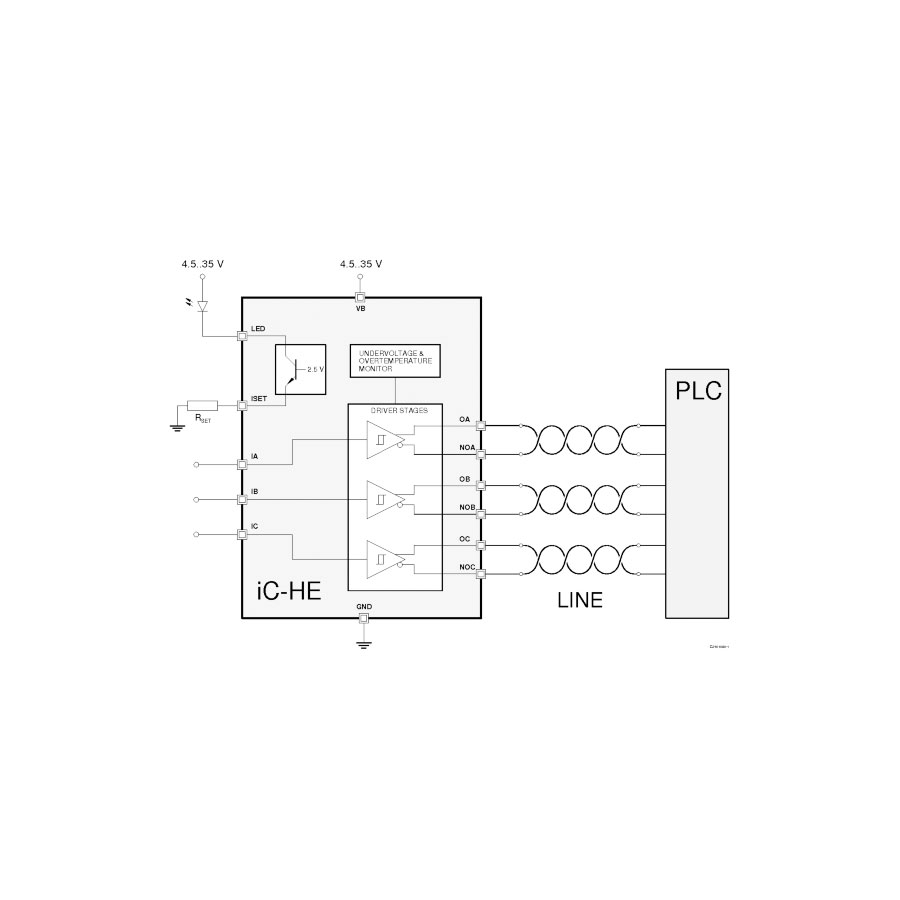

iC-HE

Complementary short-circuit-proof push-pull driver stages for RS422 and 24 V applications up to 2 MHz.

Integrated line adaptation for high signal quality at 24 V.

High driving capability of typically 200mA at 24V.

Output saturation of just 0.3V at 40mA dc.

Tristate function with excessive temperature.

Moderate slew rate reduces EMI.

TTL-/CMOS-compatible Schmitt trigger inputs, voltage-proof to 40V.

4.5 to 35 V single supply operation with low static power dissipation.

Operating temperature from -25 to 125°C (-40°C is optional).

50 mA LED driver with ISET input for current control.
