iC-GE100

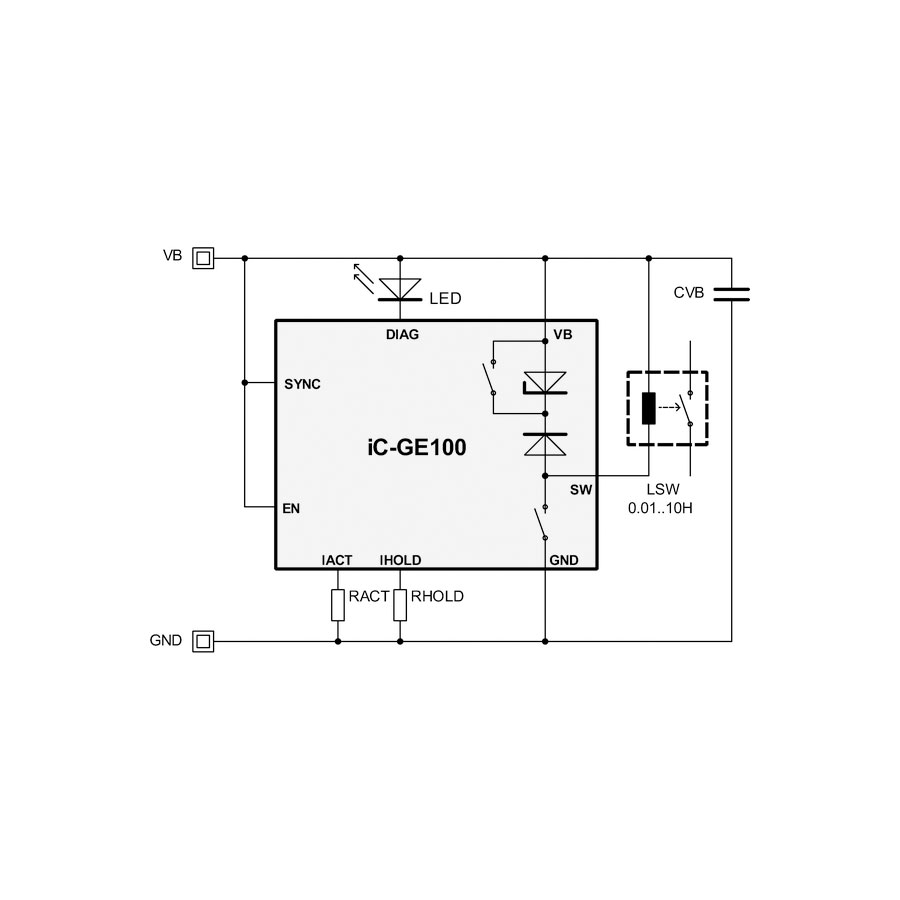

Click to enlarge

Pulse Width Modulation Relay/Solenoid Driver from 24Vdc

iC-GE100

Pulse Width Modulation Relay/Solenoid Driver from 24Vdc.

Features

Current control for inductive actuators at 24V (10 to 36V).
Power saving and power dissipation reduced switching.
Individual setting of energising and hold current.
Contact conserving switching of relays synchronous to the mains.
High efficient current control up to 100mA.
Monitoring of coil current, supply voltage and temperature.
Shutdown with overtemperature and undervoltage.
Status indication via LED or logic output.
Fast demagnetising due to 15V countervoltage.

Datasheets


Manufacturer: iCHaus GmbH

SKU: Pulse Width Modulation Relay/Solenoid Driver from 24Vdc Category: Tags: , ,

Product Description

Applications

Pulse Width Modulation drive for inductive loads (e.g. 6/12V relays, electrovalves) from 24V
Relay low- ⁄ high-side switch

Packages

QFN16
DFN8 Package

Additional Information

Type

Relay / Solenoid Driver
