TPC190-SB

Description

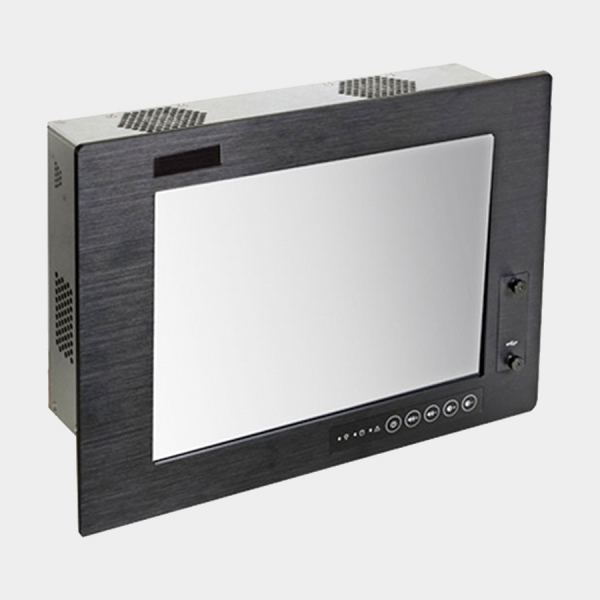

The TPC190-SB is a high performance panel mount panel PC with multi-processing support due to the Intel Core i3/i5 CPU and is designed to be lowered into the front of a cabinet. The built-in 19″ LCD panel provides 1280 x 1024 (SXGA) resolution, and the 5-wire resistive touch sensor provides precise control.
The dual Gigabit LAN and four COM ports are among the many I/O ports available, along with optional 802.11g/n wireless, and expansion through 2 x PCI or PCI-e slots.

Features

19″ High Performance Panel PC
Supports Core i3/i5 CPU
Dual Gigabit LAN
5 wire resistive touch screen
Support up to 16GB of RAM
Optional 75/100mm VESA mount
Aluminium front bezel

Suitable for:

Factory Control
Industrial Automation

Downloads:

SKU: 19" Intel Core-i (3rd gen.) HMI Terminal (Panel Mount) Categories: , Tags: , , ,

Description

CPU Type
Intel Core i3 / i5 (3rd gen.) (up to 3GHz)
Memory Support
2pcs x DDR-3 SO-DIMM socket (up to 16GB)
Front Bezel
Aluminium
Waterproof Level
IP65 front side
Power Supply
250W ATX AC power supply
O/S Support
Win 7, 7e, and 8 (inc. 32-bit and 64-bit)
Dimension
472 x 391 x 116mm
Basic System Weight
10.2kg
VESA support
75mm / 100mm VESA bracket (optional)
Certificate
CE / FCC

I/O Ports

Drive Bays
2 x 2.5″ SATA HDD, and 1 x slim SATA DVD
USB
6 x USB 2.0
Serial Ports
2 x 9-pin*, COM2 for RS232/422/485
Parallel
n/a
Keyboard/Mouse
2 x PS/2
LAN
2 x 10/100/1000Mbps
Wireless LAN
Optional 802.11b/g/n card
Audio
Line-in, Line-out, MIC
Expansion
2 x PCI or 1 x PCI + 1 x PCI-e
Video Out
1 x DVI-I + 1 x HDMI
Digital I/O
n/a
LCD
19″ SXGA TFT LCD
Touch Screen
5 wire analogue resistive (USB interface)

Environment

Temperature
Operating: -10 to 50°C, Storage: -20 to 60°C
Humidity
20 to 90%

Additional information

Screen Size

19"

Core

Intel, Intel Core i3, Intel Core i5

Expansion

mini PCI-e, PCI, PCI-e

Mount Type

Panel Mount, VESA Mount

Fanless

Smart fan for quiet environments

Operating System (OS)

Windows 7, Windows 8, Windows 8.1, Windows XP

Operating Temperature

-10°C to +40°C

IP Rating

IP65 Front Side (Only)
