Product Description
|
CPU Type
|
Intel Atom N2800/D2550 (FCBGA559 Embedded) with NM10 chipset
|
|
Memory Support
|
1pc x DDR-3 SO-DIMM socket (up to 4GB)
|
|
Front Bezel
|
Aluminium, Flat
|
|
Waterproof Level
|
IP65 front side
|
|
Power Supply
|
9-36V DC input, optional AC-DC power supply
|
|
O/S Support
|
Windows 7 Pro
|
|
Dimension
|
400 x 300 x 74mm
|
|
Basic System Weight
|
5Kg
|
|
VESA support
|
75mm VESA bracket (optional)
|
|
Certificate
|
CE / FCC
|
I/O Ports
|
Drive Bays
|
1 x 2.5″ SATA HDD, 1 x CFast slot onboard
|
|
USB
|
2 x USB 2.0
|
|
Serial Ports
|
2 x 9-pin*, COM2 for RS232/422/485
|
|
Parallel
|
n/a
|
|
Keyboard/Mouse
|
n/a
|
|
LAN
|
2 x 10/100/1000Mbps
|
|
Wireless LAN
|
Optional 802.11b/g/n card
|
|
Audio
|
Line-out, Mic-in
|
|
Expansion
|
1 x mini-PCI-e for WiFi, and 1 x Sim card slot
|
|
DVI
|
1 x DVI-I
|
|
Digital I/O
|
n/a
|
|

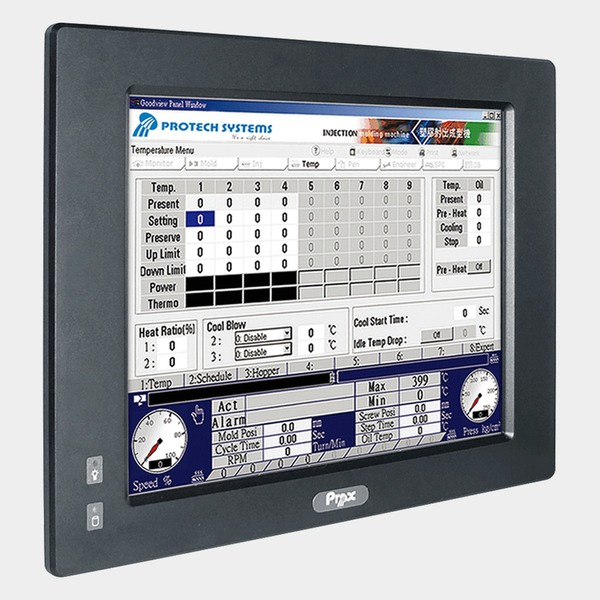

LCD
|
15″ XGA TFT LCD
|
|
Touch Screen
|
5 wire analogue resistive (USB interface)
|
Environment
|
Temperature
|
Operating: 0 to 45°C, Storage: -20 to 60°C
|
|
Humidity
|
20 to 90%
|
