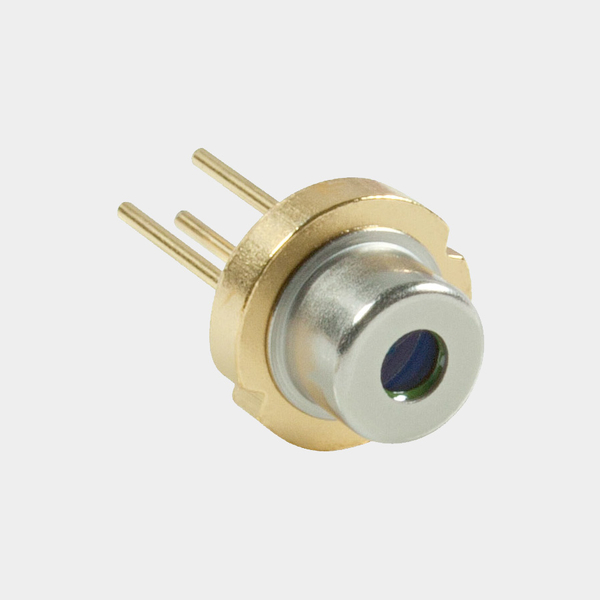

SDL-488-60-511M
Click to enlarge

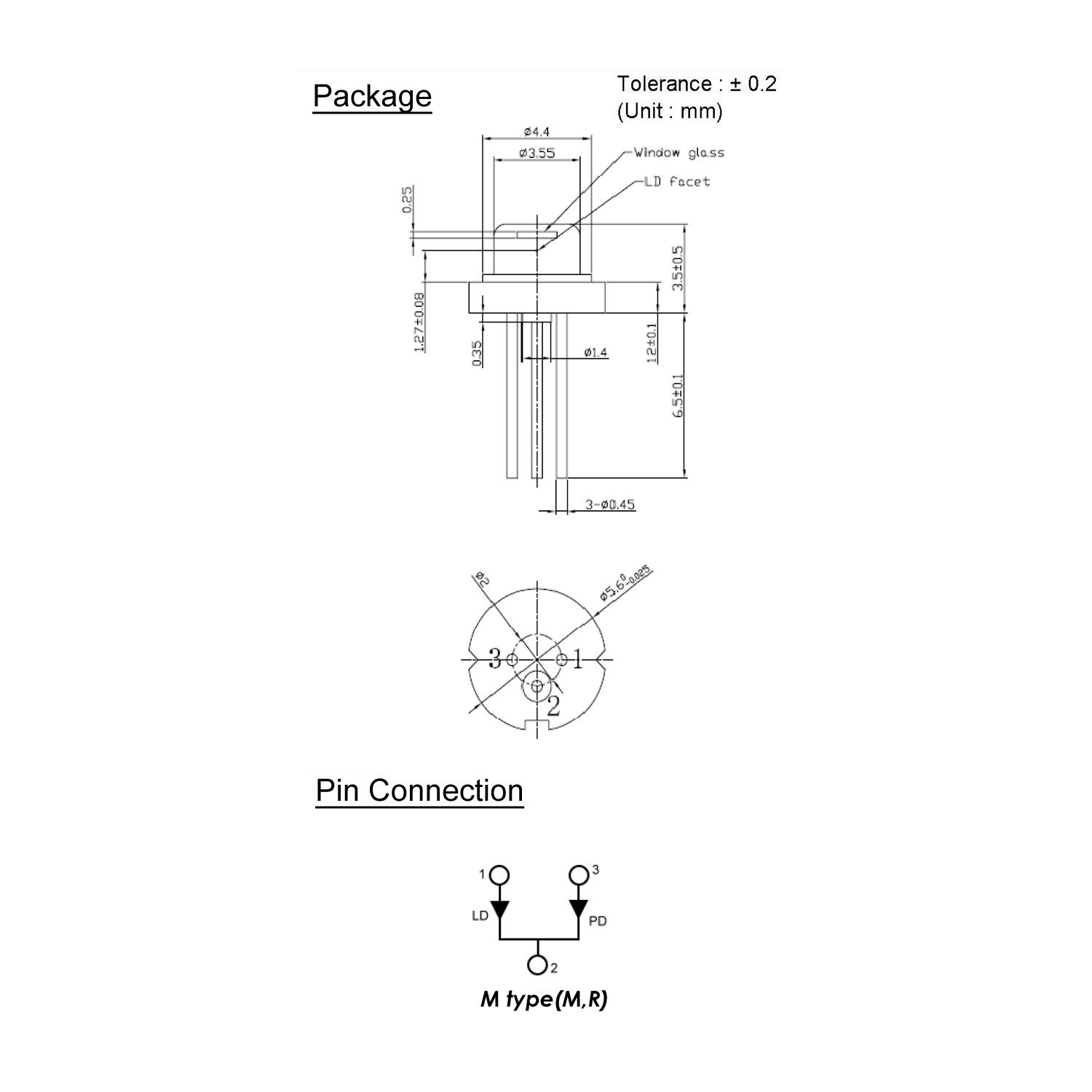

SDL-488-60-511M SDL-488-60-511M pin

488nm, 60mW Blue Laser Diode (M-Type)

SDL-488-60-511M

Feature

Semicom Blue-Violet Laser Diode
Wavelength: 488nm (typ.)
Output Power: 60mW
Package: TO18 (RoHS compliant)


Applications

Industrial Use
Medical Use


Driver ICs

This diode is best driven using the following IC Haus driver:
iC-NZ
iC-NZN
iC-WKM
iC-HT
iC-HKB
iC-HB

SKU: 488nm, 60mW Blue Laser Diode (M-Type) Category: Tags: , ,

Product Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
60
mW
Operating
Voltage
VCC
+5
V
Operating
Current
IF
130
mA
Operating
Temperature
Topr
0 to +60
°C
Storage
Temperature
Tstg
-40 to +80
°C


Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Optical Output
Power
Po
–
60
–
mW
–
Threshold
Current
Ith
–
28
55
mA
Po=50mW
Operating
Current
Iop
–
110
130
mA
Po=50mW
Differential
Efficiency
η
–
0.7
0.92
mW/mA
Po=50mW
Operating
Voltage
Vop
–
5.5
6.3
V
Po=50mW
Peak
Wavelength
λp
482
488
492
nm
Po=50mW
Monitor
Current
Im
0.5
1.1
1.5
mA
Po=50mW
Beam *4
Divergence
Θ// / Θ⊥
6.0 / 20
9.0 / 24
13.0 / 28
deg
Po=50mW
Beam
Angle
ΔΘ// / ΔΘ⊥
-3 / -4
–
+3 / +4
deg
Po=50mW
(*2) X axial direction
(*3) Measurement distance from laser aperture

Additional Information

Colour

Blue (445 – 488nm)
Operating Current

130 Max.
Operating Voltage

5
PIN Type

M or B (inc. PD)
Power Output

60mW
Package Type

TO-18
Wavelength

488nm
Driver IC

iC-HB, iC-HKB, iC-HT, iC-NZ, iC-NZN, iC-WKM
