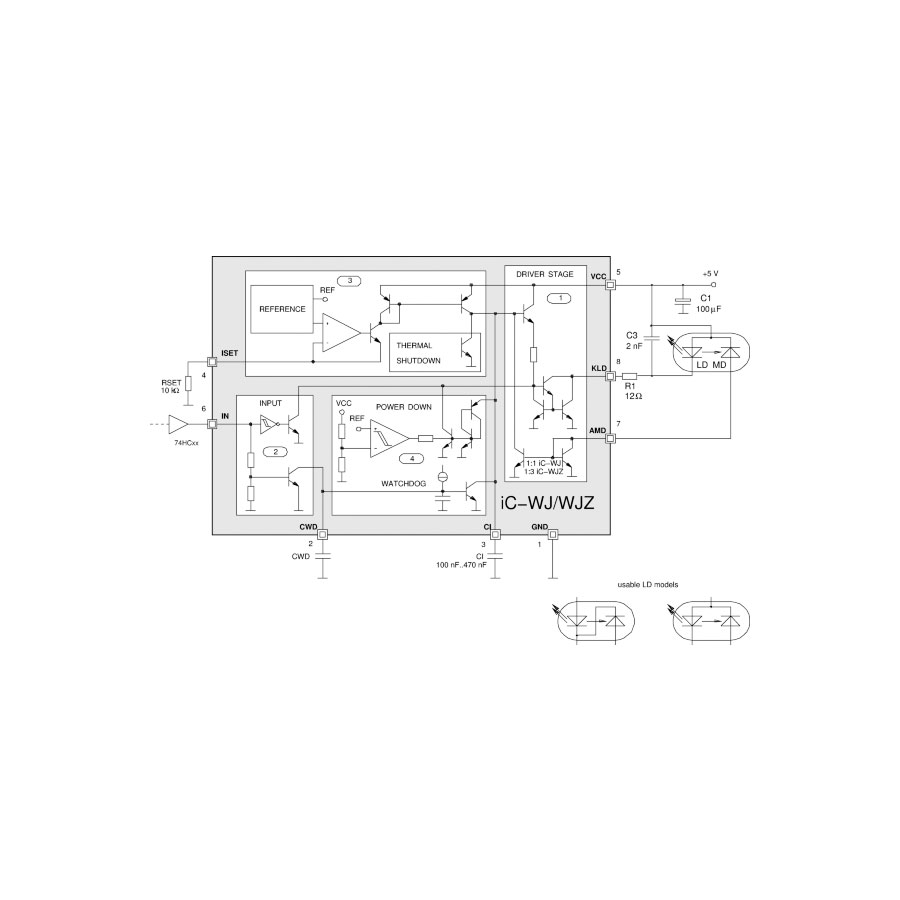

iC-WJ & iC-WJZ

Laser Diode Driver, CW and pulse operation of up to 300kHz.

Features

Simple APC adjustment via an external resistor.
Continuous (CW) or pulsed operation of up to 300kHz.
Laser diode current of up to 250mA.
Adjustable watchdog for input signals.
Soft power-on and thermal protection.
Single 5V supply, with few external components.
iC-WJ for driving laser diodes with 50-500uA monitor current.
iC-WJZ for driving laser diodes with 0.15-1.5mA monitor current.

Datasheets


Manufacturer: iCHaus GmbH

SKU: Laser Diode Driver, CW and pulse operation of up to 300kHz Category: Tags: , ,

Description

Applications

General purpose laser diode driver

Packages

S08
MSOP8 Package

MSOP8
>MSOP8 Package

Additional information

LD Pinout

M, N

Type

Laser Driver

Control Type

APC

Laser Speed

CW, Pulsed

Supply Current

mA
