Phased Array Nonius Encoder (26 mm)

iC-PN26xx

Phased Array Nonius Encoder (26 mm).

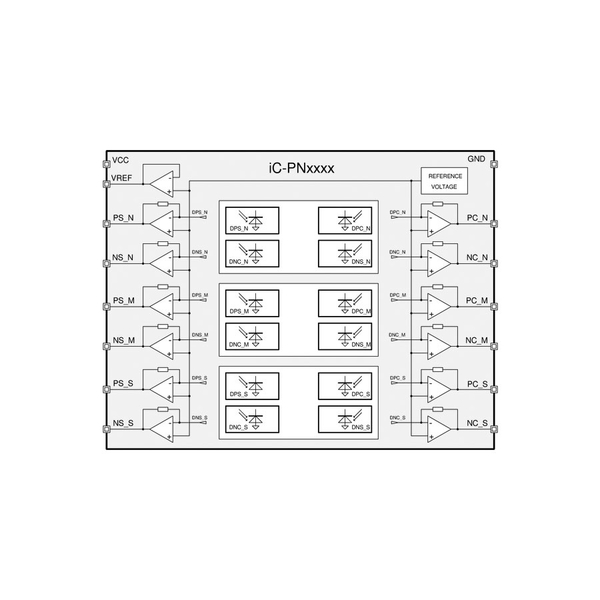

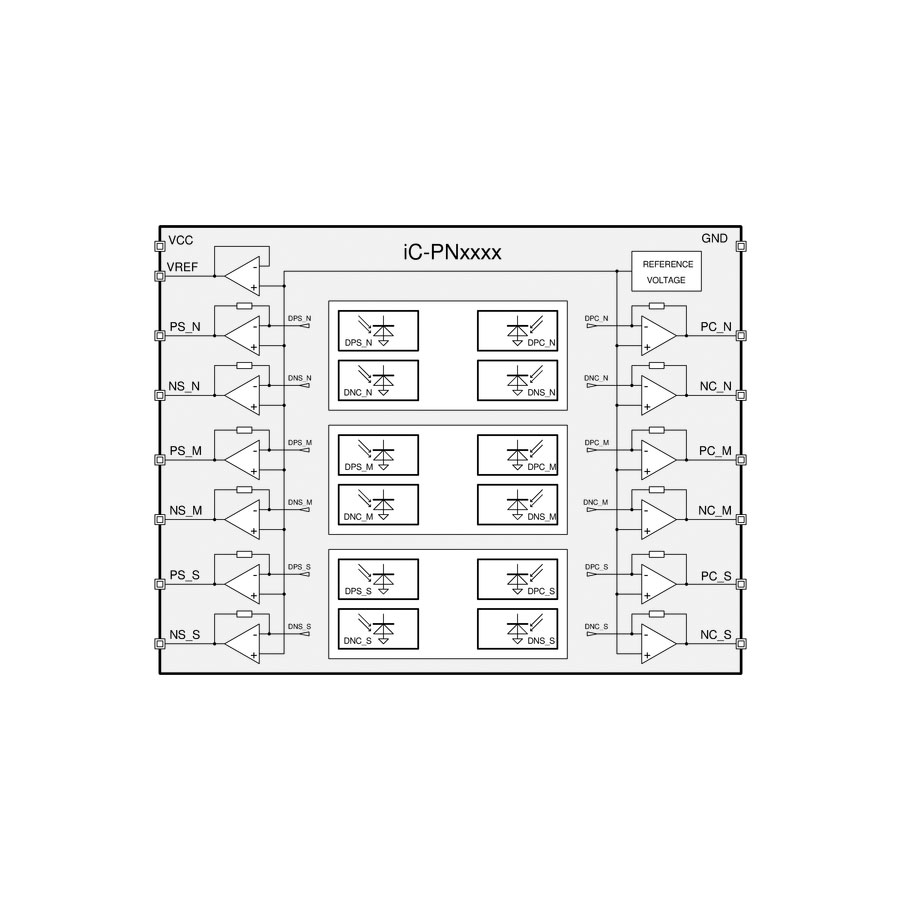

Features

Compact photosensor for high-resolution Nonius scanning.
Phased-array design for excellent signal matching.
Reduced cross talk due to moderate track pitch.
Ultra low dark currents for operation to high temperature.
Low noise amplifiers with high transimpedance of typ. 1MΩ (4MΩ).
Short-circuit-proof, low impedance voltage outputs for enhanced EMI tolerance.
Space saving optoQFN and optoBGA packages (RoHS compliant).
Low power consumption from single 4.5 to 5.5 V supply.
Operational temperature range of -40 to +110 °C (optional +125°C).
iC-PN2656 Encoder Ø 26 mm / 255, 256, 240 PPR (Eval Kit LSH2M available).
iC-PN2612 Encoder Ø 26 mm / 511, 512, 496 PPR (Eval Kit LSH2M available).
iC-PN2624 Encoder Ø 26 mm / 1023, 1024, 992 PPR (Eval Kit LSH2M available).
Code discs available.

Datasheets


Manufacturer: iCHaus GmbH

SKU: Phased Array Nonius Encoder (26 mm) Category: Tags: , , , , ,

Product Description

Applications

Absolute position encoders

Packages

15-pin optoBGA 6.2mm x 5.2mm
oBGA LSH2C Package

oQFN32 5mm x 5mm
oQFN32 Package

Additional Information

Type

Encoder – Optical
