iC-PN3924

Phased Array Nonius Encoder (39 mm).

Features

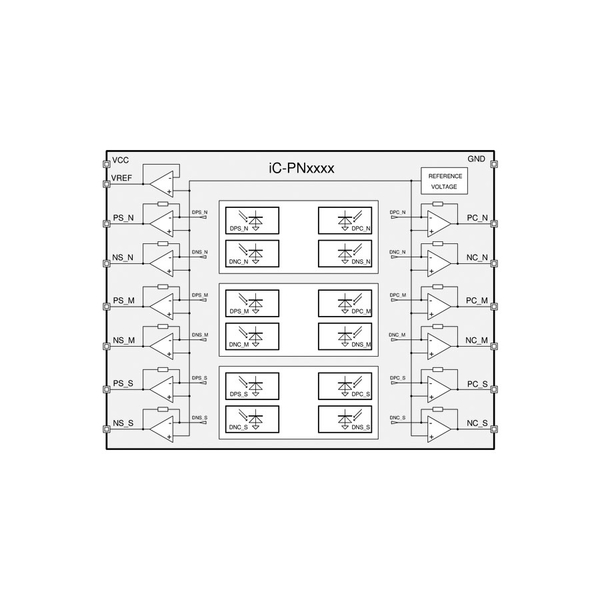

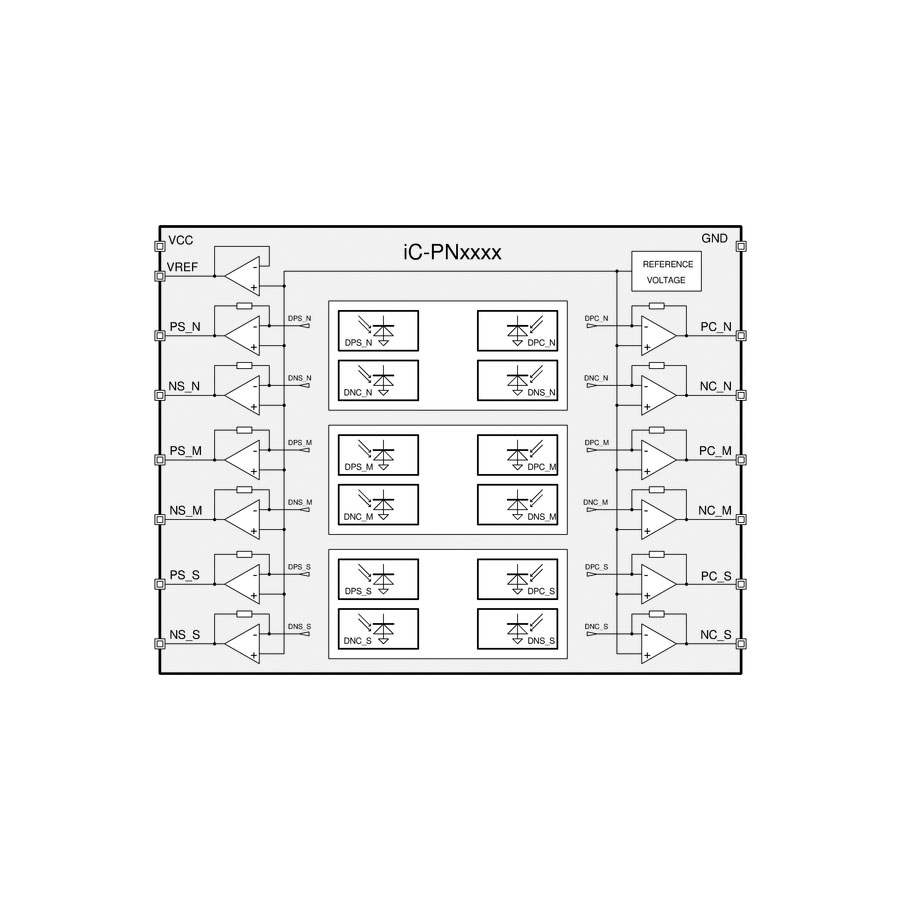

Compact photosensor for high-resolution Nonius scanning.
Phased-array design for excellent signal matching.
Reduced cross talk due to moderate track pitch.
Ultra low dark currents for operation to high temperature.
Low noise amplifiers with high transimpedance of typ. 1MΩ.
Short-circuit-proof, low impedance voltage outputs for enhanced EMI tolerance.
Space saving optoQFN and optoBGA packages (RoHS compliant).
Low power consumption from single 4.5 to 5.5V supply.
Operational temperature range of -40 to +110°C (optional +125°C).
Suitable code disc:
LSHC12S 39-1024N (glass 1mm) OD Ø 39mm, ID Ø 13.0mm, optical radius 17.5mm.

Datasheets


Manufacturer: iCHaus GmbH

SKU: Phased Array Nonius Encoder (39 mm) Category: Tags: , , ,

Description

Applications

Absolute position encoders

Packages

15-pin optoBGA6.2mm x 5.2mm
oBGA LSH2C Package

oQFN325mm x 5mm
oQFN32 Package

Additional information

Type

Encoder – Optical
