iC-HD7

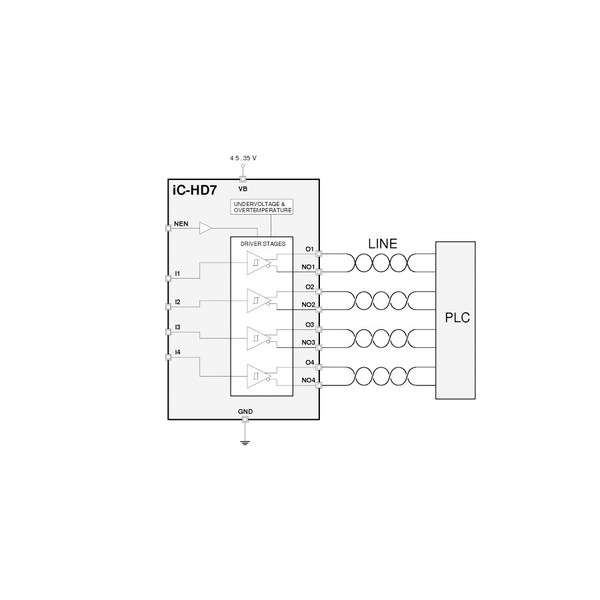

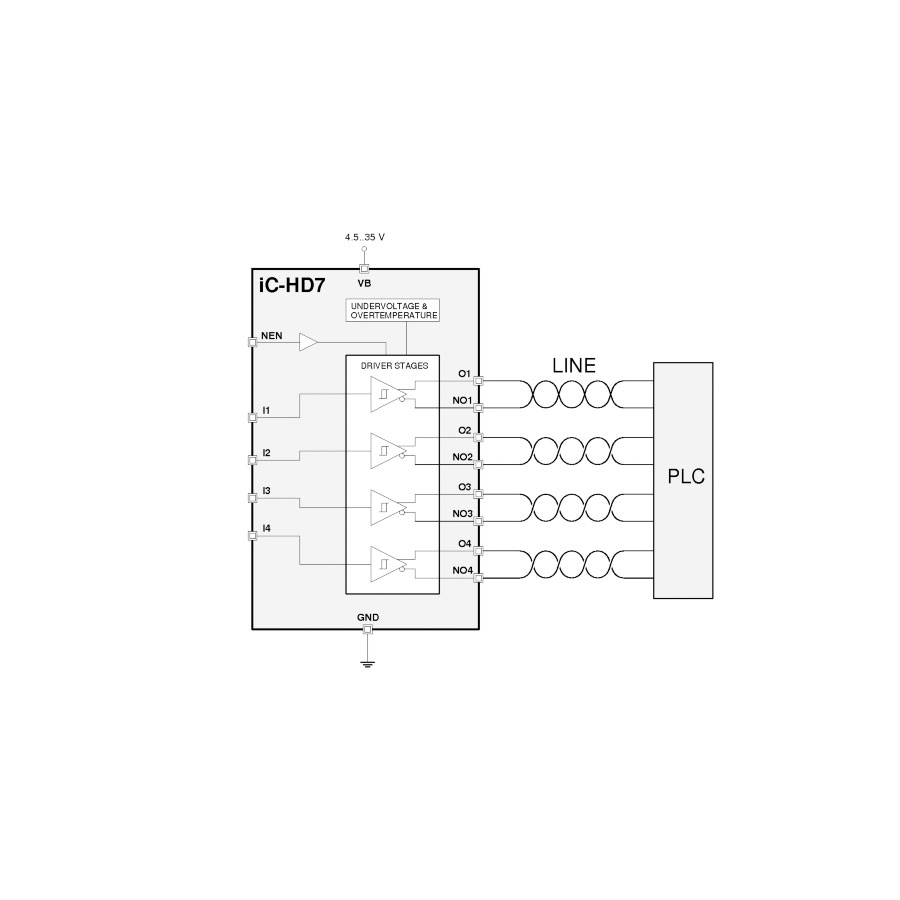

Quad Differential Line Driver pin-compatible with xx7272.

Features

Complementary short-circuit-proof push-pull driver stages for RS422 and 24V applications up to 2MHz.
Integrated line adaptation for high signal quality at 24V.
Moderate slew rate reduces EMI.
High driving capability of typically 200mA at 24V.
Output saturation of just 0.3V at 40mAdc.
Pin-compatible with 26LS31, xx7272.
Tristate function for bus applications with excessive temperature shutdown.
TTL- ⁄ CMOS-compatible Schmitt trigger inputs, voltage-proof to 40V.
4.5 to 35V single supply operation with low static power dissipation.
Operating temperature from -25 to 125°C (-40°C is optional).

Datasheets


Manufacturer: iCHaus GmbH

SKU: Quad Differential Line Driver pin-compatible with xx7272 Category: Tags: , ,

Description

Applications

Line drivers for 24V control engineering
Linear scales and encoders
Sensor systems

Packages

SO16N
SO16N Package

Additional information

Type

24V Line Drivers
