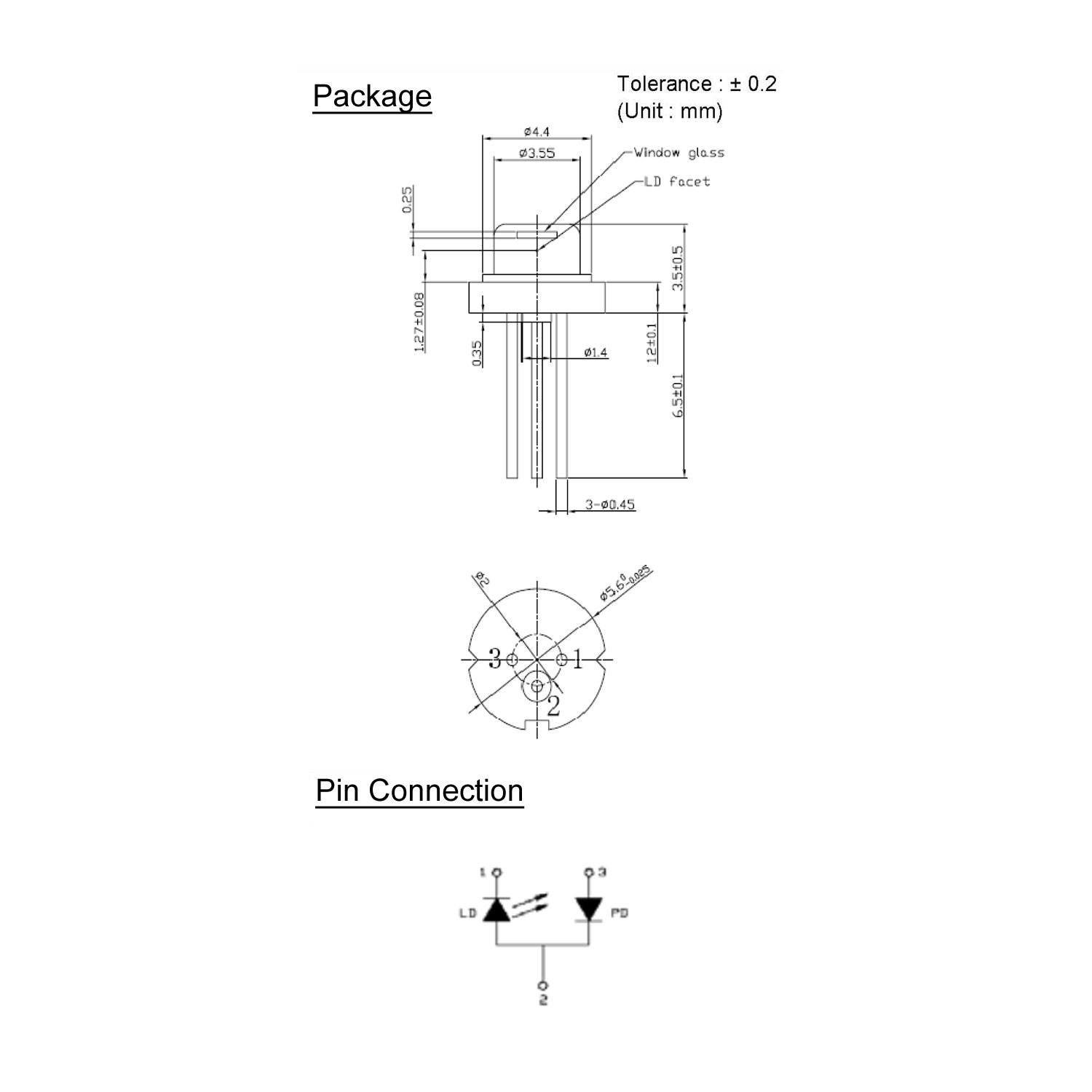

ADL-65052TL-3 ADL_65052TL_3 pin

655nm, 5mW Red Laser Diode

ADL-65052TL-3

Feature

Arima Red Laser Diode
Wavelength: 655nm (typ.)
Output Power: 5mW
Package: TO18 (RoHS compliant)
FFP Single Lateral Mode

Applications

Industrial Laser Markers
Bar code Readers
Laser Pointer

Driver ICs

This diode is best driven using the following IC Haus driver:
iC-WK/L
iC-NZN
iC-HK
iC-HB
SKU: 655nm, 5mW Red Laser Diode Category: Tags: , ,

Product Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
7
mW
Reverse
Voltage
VR
+2
V
Operating
Current
IF
22
mA
Operating
Temperature
Topr
-10 to +50
°C
Storage
Temperature
Tstg
-40 to +85
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Optical Output
Power
Po
–
5
7
mW
–
Threshold
Current
Ith
–
15
20
mA
Po=5mW
Operating
Current
Iop
–
20
22
mA
Po=5mW
Differential
Efficiency
η
0.5
1.0
1.4
mW/mA
Po=3-5mW
Operating
Voltage
Vop
–
2.2
2.5
V
Po=5mW
Peak
Wavelength
λp
645
655
660
nm
Po=5mW
Monitor
Current
Im
0.1
0.18
0.4
mA
Po=5mW
Beam *4
Divergence
Θ// x Θ⊥
6.0 x 24
8.0 x 27
12.0 x 32
deg
Po=5mW
Beam
Angle
ΔΘ// x ΔΘ⊥
-3 x -3
–
+3 x +3
deg
Po=5mW

Additional Information

Colour

Red (635 – 685nm)
Wavelength

655nm
Power Output

5mW
Operating Voltage

2.2 Typ. 2.5 Max.
Operating Current

22
PIN Type

N or A (inc. PD)
Package Type

TO-18
Driver IC

iC-HB, iC-HK, iC-NZN, iC-WK/L
