STB-5001

Description

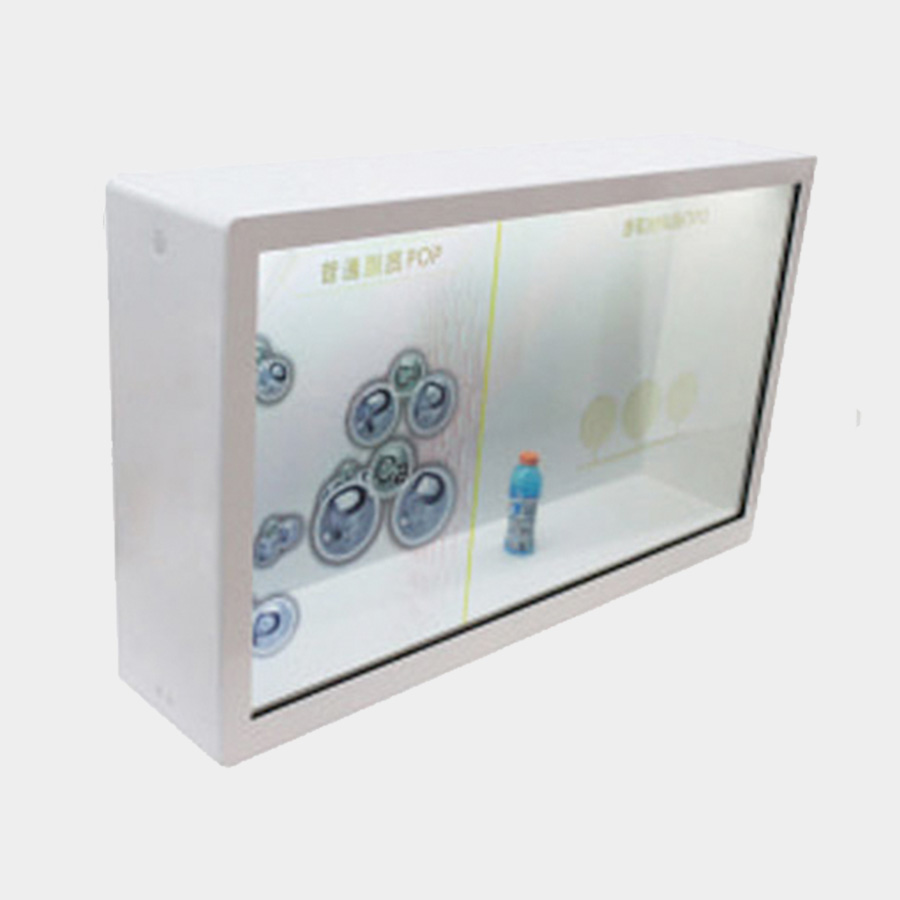

The STB-5001 is a 50″ transparent LCD panel built in an LED lit display case, designed for digital signage and information displays.
The 50″ LCD panel provides 1920 x 1080 resolution, with 4000:1 contrast ratio and 89 degree viewing angles.

Features

50″ Transparent LCD Display Case
Native Resolution 1920×1080 @60Hz
Contrast Ratio: 4000:1
5.5% Light Transmission
89 degree Viewing Angle
Optional Touch Sensor
Built-in PC/media player
PC Expansion through USB/SD card
SKU: 50" FullHD Transparent LCD Display Case Category: Tags: , ,

Description

Screen Size
50″, 1920 x 1080 resolution
Display Colours
8-bit (16.7M)
Response Time
8ms (G-to-G)
Transmittance
5.5% (Typ)
Contrast Ratio
Typ. 4000:1
Viewing Angle
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
Backlight Type
LED inside case
Touch Screen
Optional multi-touch sensor
Power Input
TBD
Dimension
1240 x 300 x 785 mm Custom cabinet designs are possible on request

Computer / Media Player

Operating System
Windows 7 or Android
PC Connectors
USB 2.0, LAN, SD Card slot

Environment

Operating Temperature
0 to 40°C

Additional information

Operating Temperature

0°C to 40°C

Operating System (OS)

Android, Windows 7

Touch Type

Optional multi-touch sensor

Inputs

Built in PC/Media player

Viewing Angle

89° / 89°

Screen Size

50"

Transparent Type

Display Case
