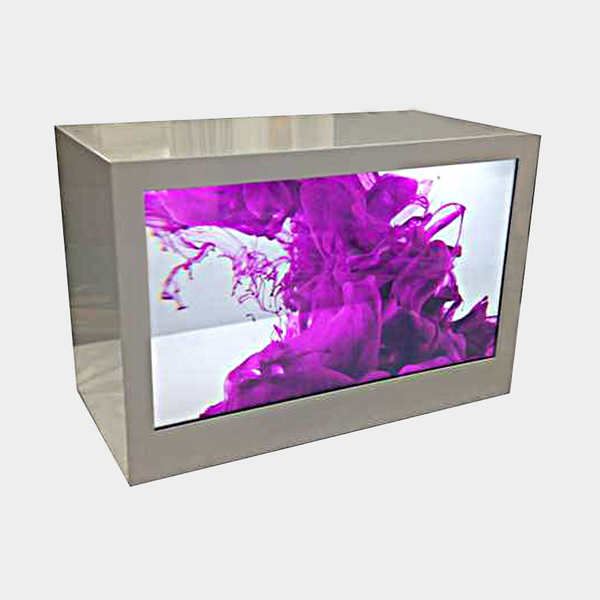

32" FullHD Transparent LCD Display Case with Android Board



The STB-3201A is a 32″ transparent LCD panel built in an LED lit display case, designed for digital signage and information displays.
The 32″ LCD panel provides 1920 x 1080 resolution, with 1000:1 contrast ratio and 89 degree viewing angles.


32″ Transparent LCD Display Case
Native Resolution 1920×1080 @60Hz
Contrast Ratio: 1000:1
6.5% Light Transmission
89 degree Viewing Angle
Built-in Android Media Player
Optional Multi-Point Touchscreen
SKU: 32" FullHD Transparent LCD Display Case with Android Board Category: Tags: , , , ,

Product Description

Screen Size
32″, 1920 x 1080 resolution
Display Colours
8-bit (16.2M)
Response Time
8ms (G-to-G)
6.5% (Typ)
Contrast Ratio
Typ. 1000:1
Viewing Angle
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
Backlight Type
LED inside case (21pcs LED bar)
Touch Screen
Optional multi-touch sensor
Power Input
767 x 520 x 380 mm Custom cabinet designs are possible on request

Computer / Media Player

Operating System
Android 4.2.2 Media Board
PC Connectors
USB 2.0 x 2


Operating Temperature
0 to 40°C

Additional Information

Transparent Type

Display Case

Touch Type

Optional multi-touch sensor

Viewing Angle

89° / 89°

Screen Size
