STB-1901A-MB

Description

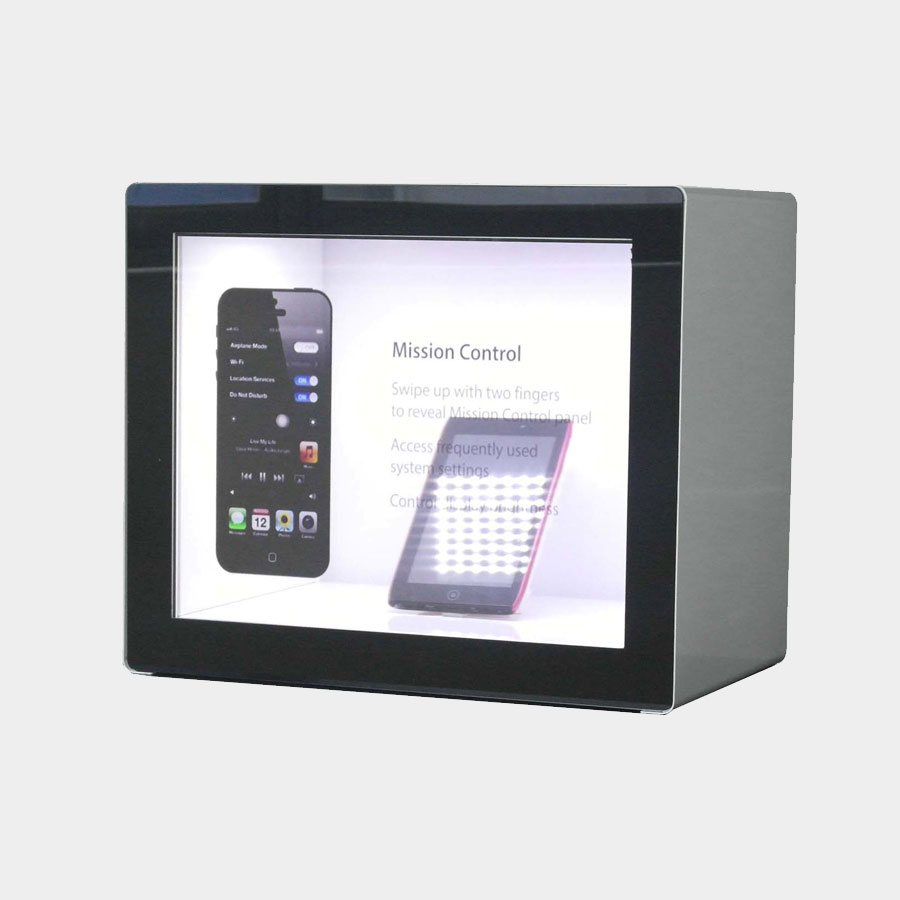

The STB-1901A is a 19″ transparent LCD panel built in an LED lit display case, designed for digital signage and information displays.
The 19″ LCD panel provides 1280 x 1024 resolution, with 89 degree viewing angles.

Features

19″ Transparent LCD Display Case
Native Resolution 1280×1024 @60Hz
8% Light Transmission
89 degree Viewing Angle
Built-in Media Player
Optional Safety Glass
SKU: 19" SXGA Transparent LCD Display Case with Media Player Category: Tags: , , ,

Description

Screen Size
19″, 1280 x 1024 resolution
Transmittance
8% (Typ)
Contrast Ratio
TBC
Viewing Angle
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
Backlight Type
LED inside case (5pcs LED bar)
Power Consumption
53W/div>
Dimension
420 x 340 x 340 mm Custom cabinet designs are possible on request

Computer / Media Player

Operating System
Embedded
PC Connectors
USB 2.0 x 2

Environment

Operating Temperature
0 to 40°C

Additional information

Screen Size

19"

Touch Type

Safety Glass

Transparent Type

Display Case

Viewing Angle

89° / 89°
