SML-405-3-1-R
Feature
Diode pumped solid state blue-violet laser module
Wavelength: 405nm
Output Power: 3mW

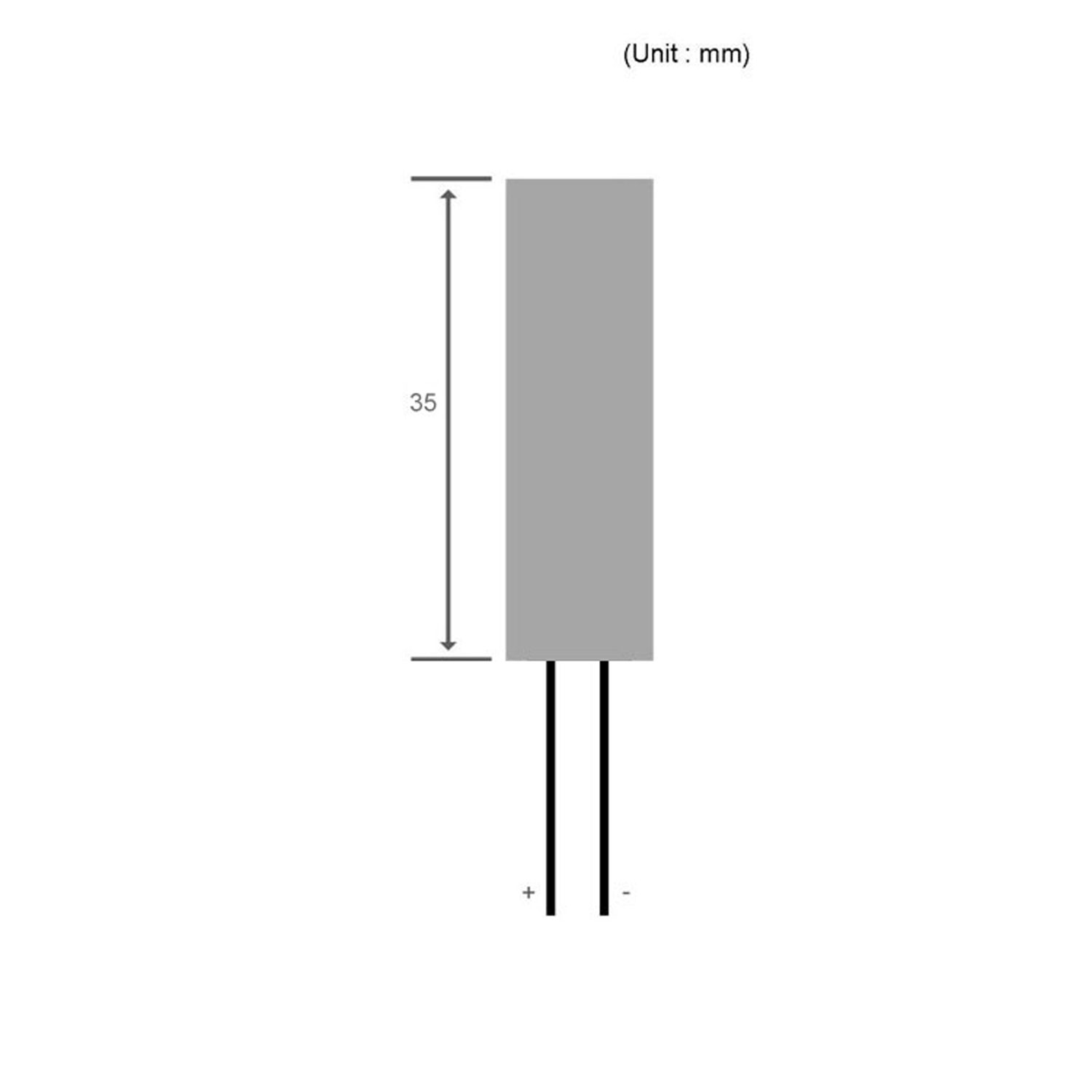

Package: ø10mm (RoHS compliant)
Length: 35mm
Applications
Laser pointer
Industrial Alignment
Description
Absolute Maximum Ratings
(Ta=25°C)
|
Items
|
Symbols
|
Values
|
Units
|
|
Optical Output
Power |
Po
|
3
|
mW
|
|
Operating
Voltage |
VCC
|
+6
|
V
|
|
Operating
Temperature |
Topr
|
+0 to +50
|
°C
|
|
Storage
Temperature |
Tstg
|
-40 to +80
|
°C
|
Electrical and Optical Characteristics
(Ta=25°C)
|
Item
|
Symbols
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
Operating
Current |
Iop
|
–
|
–
|
65
|
mA
|
CW
|
|
Supply
Voltage |
Vcc
|
–
|
+6
|
–
|
V
|
–
|
|
Beam (*2)
Diameter |
2wr
|
–
|
–
|
6×12
|
mm
|
Δl = 10m (*3)
|
|
Beam (*2)
Diameter |
2wr
|
–
|
–
|
12×25
|
mm
|
Δl = 20m (*3)
|
|
Beam (*2)
Divergence |
2Θr
|
–
|
–
|
0.2
|
mrad
|
–
|
|
Peak
Wavelength |
λp
|
400
|
405
|
410
|
nm
|
–
|
Additional information
| Colour | Blue Violet (405nm) |
|---|---|
| Wavelength | 405nm |
| Power Output | 3mW |
| Operating Voltage | 6 |
| Operating Current | 65 Max. |
