PA-7225-PPC

Description

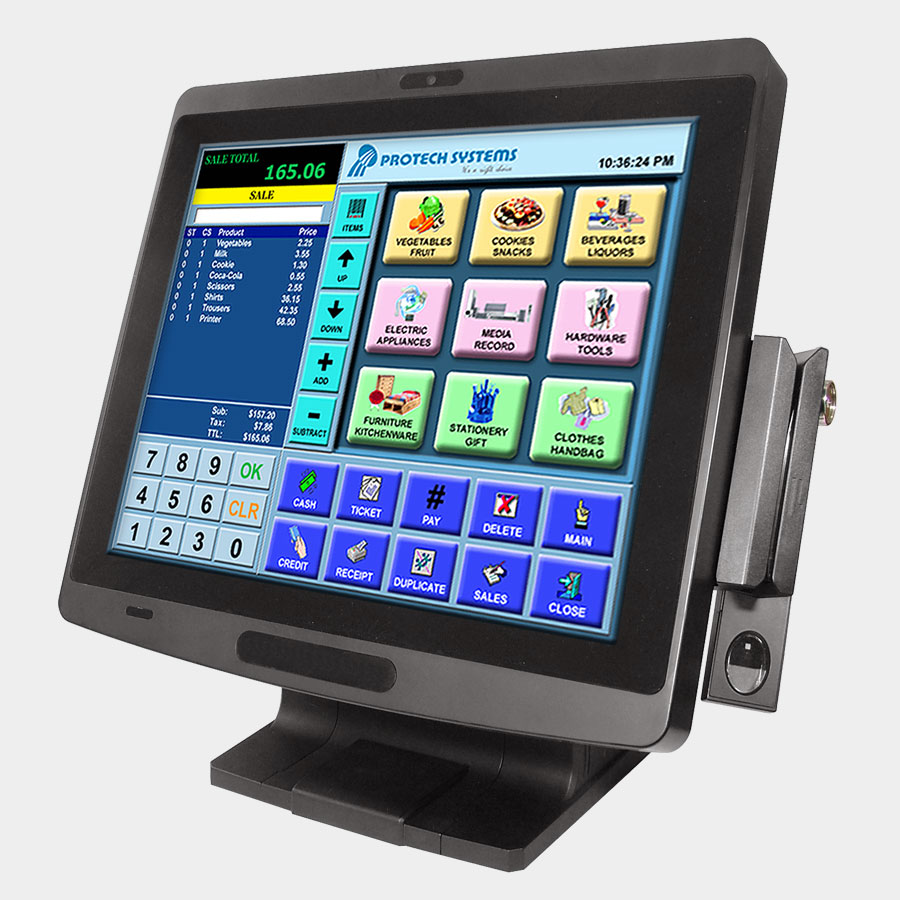

The PA-7225 is a low power point of sale or factory HMI terminal built using the latest Intel Celeron J1900 quad core CPU with a truly flat front. The built-in 17″ LCD panel provides 1280 x 1024 (SXGA) resolution, and the 5-wire resistive touch sensor provides precise control.
The five USB ports and three COM ports are among the many I/O ports available on this HMI terminal, and expansion is possible with cash drawer, customer display, and MSR options.

Features

17″ Low Power, Flat Desktop Panel PC
Support Intel Celeron J1900 (2GHz)
Silent 5 side IP54 Terminal
Optional Customer Display
5 wire resistive or PCT touchscreen
Support up to 8GB of RAM
Optional Fingerprint module
Optional i-Button and MSR

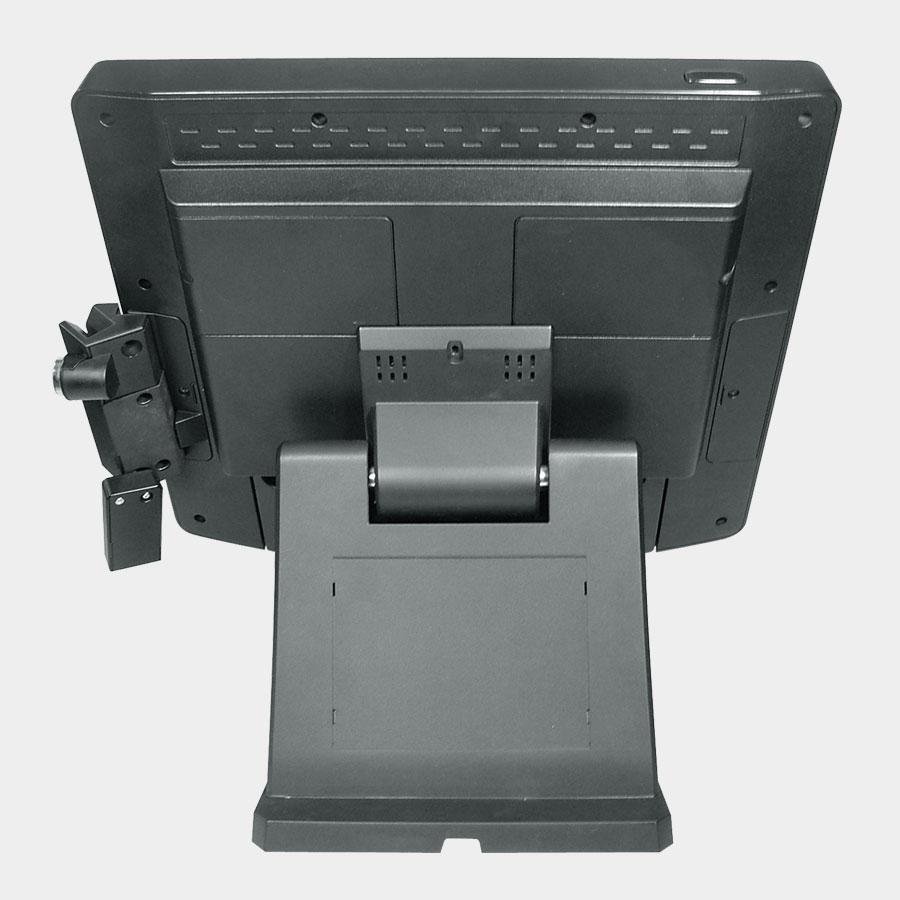

Available with and without desktop stand

Downloads:

SKU: 17" Intel J1900 HMI Terminal Categories: , Tags: , ,

Description

CPU Type
Intel Celeron J1900 (2GHz)
Memory Support
1pcs x DDR-3L SO-DIMM socket (up to 8GB)
Chipset Type
On chip solution
Power Supply
External AC 100-240V 72W power supply
O/S Support
Win 8, POSReady7 and WES7
Dimension
410 x 375 x 62mm
Basic System Weight
6kg
Certificate
CE / FCC

I/O Ports

Drive Bays
1 x 2.5″ HDD/SSD
USB
4 x USB 2.0 on rear, 1 x USB 2.0 on side
Serial Ports
3 x RJ-45
Parallel
n/a
Keyboard/Mouse
n/a
LAN
1 x 10/100/1000Mbps
Audio
1 x Line-out
Expansion
RJ-11 cash drawer port
VGA
1 x 15-pin VGA
LCD
17″ SXGA TFT LCD
Touch Screen
5 wire True Flat analogue resistive or Projected Capacitive
Brightness
350cd/m²
Option
i-Button, MSR, VFD customer display, fingerprint reader

Environment

Temperature
Operating: 0 to 35°C, Storage: -5 to 60°C
Humidity
20 to 90%

Additional information

Screen Size

17"

Core

Intel Celeron

Fanless

Yes

Mount Type

VESA Mount

Operating System (OS)

POS Ready7, Windows 10, Windows 7, Windows 8, Windows 8 e, Windows 8.1

Operating Temperature

0°C to 35°C

IP Rating

IP65 Front Side (Only)
