6-Channel Phased Array Opto Encoder (33mm)

iC-PT33xxH

Features

Compact, high resolution incremental encoder ICs with up to 2500 CPR (native) and 10,000 CPR (interpolated).
For code discs of Ø33mm.
Excellent signal matching.
Moderate track pitch for relaxed assembly tolerances.
Low-noise signal amplifiers with high EMI tolerance.
Pin-selectable operating modes: analog, digital, and interpolated (x2 and x4).
Pin-selectable index gating: un-gated (1T), B-gated (0.5T), AB-gated (0.25T).
Complementary quadrature outputs to 1.6 MHz: A, B, Z and NA, NB, NZ.
Commutation signal outputs: U, V, W.
Short-circuit-proof, current-limited, +/- 4mA push-pull.
Analog signal output for ease of alignment and resolution enhancement by external interpolation.
LED power control with 40mA high-side driver.
Low power consumption from single 3.5V to 5.5V supply.
Operational temperature range of -40 to +120°C.
See datasheet for relevant code discs.

iC-PT3304H Encoder Ø 33 mm / 360 CPR.
iC-PT3310H Encoder Ø 33 mm / 1000 CPR.
iC-PT3324H Encoder Ø 33 mm / 1024 CPR.
iC-PT3313H Encoder Ø 33 mm / 1250 CPR.
iC-PT3315H Encoder Ø 33 mm / 1500 CPR.
iC-PT3318H Encoder Ø 33 mm / 1800 CPR.
iC-PT3320H EncoderBlue Ø 33 mm / 2000 CPR.
iC-PT3348H EncoderBlue Ø 33 mm / 2048 CPR.
iC-PT3325H EncoderBlue Ø 33 mm / 2500 CPR.

Evaluation kits with LED and code disc available.


Datasheets


Manufacturer: iCHaus GmbH


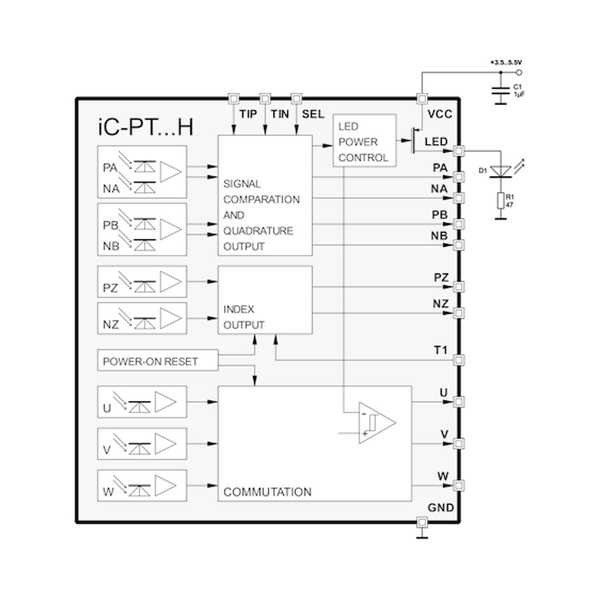

Product Description

Applications

Incremental encoder
Brushless DC motor commutation
Industrial drives


Packages


oQFN32
5mm x 5mm
oQFN32 Package

Additional Information

Type

Encoder – Optical
