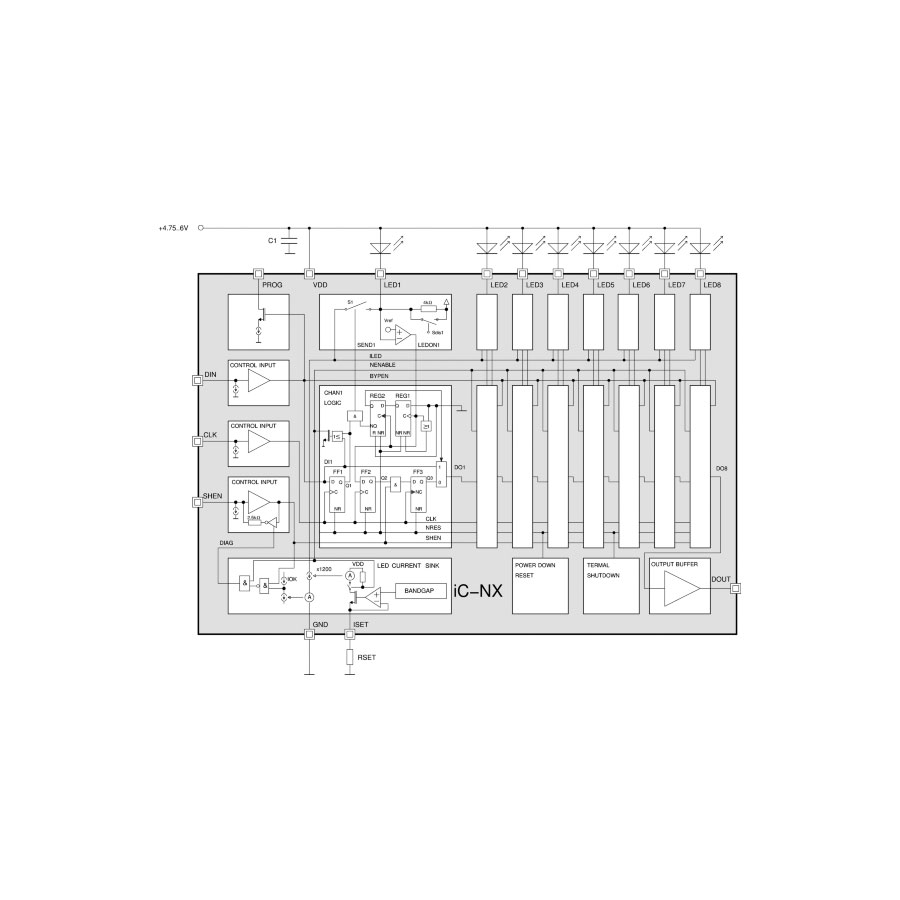

iC-NX

8-Channel Light-Grid Pulse Driver with modulation input for safety light curtains.

Features

1 to 8 channels (hardware programmable).
LED pulse current can be adjusted from 0.4 to 1.8A via a single external low power resistor.
Positive pulse current temperature coefficient permits compensation of decreases in LED efficiency.
Short light pulses from 0.5µs with steep edges.
Low standby current; device activated by input data.
Diagnostic message generated with LED interrupts.
LED short-circuit recognition.
Control logic with three-stage shift register.
Output buffer with 120 line adaptation.
Supply voltage range of 4.75 to 6V.
Thermal and low-voltage shutdown.
Integrated protection against ESD.
Configured for safety systems according to IEC 61496-1.
Option: extended temperature range of -20 to 85°C.

Datasheets


Manufacturer: iCHaus GmbH

SKU: 8-Channel Light-Grid Pulse Driver with modulation input for light curtains Category: Tags: ,

Description

Applications

Light curtain LED driver
Light barrier LED driver
Electro-sensitive protective equipment (ESPE)

Packages

TSSOP16
TSSOP16 Package

Additional information

Type

Safety Light Curtain – Transmitter
