iC-MZ
Differential Hall Switch with integrated line driver.

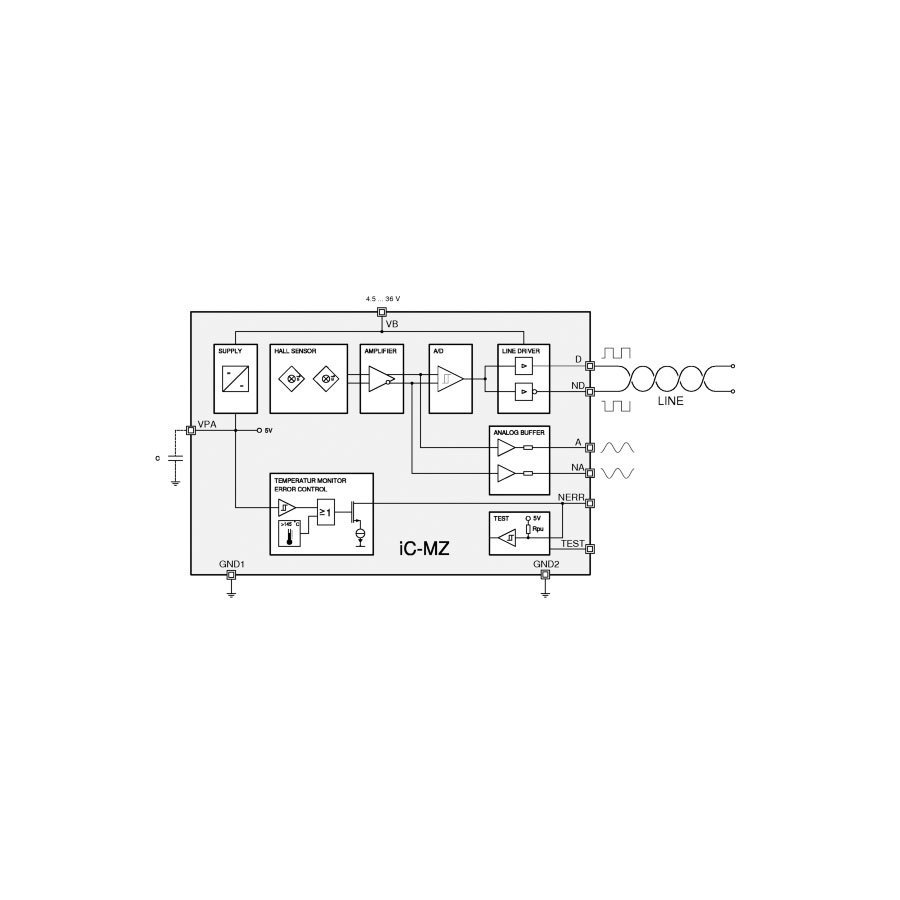

Features
Dual Hall sensors set 2.0mm apart.
Magnetic field frequency range from DC to 40kHz.
Complementary push-pull line driver outputs with integrated line adaptation.
Output stages are current limited and short-circuit-proof due to temperature shutdown.
Min. 200mA output current at 24V supply voltage.
Supply voltage range 4.5 to 36V.
Low driver stage saturation voltage.
RS422-compatible (TIA⁄EIA standard).
Temperature and supply voltage monitor with error messaging.
Amplified differential sensor signal, accessible for diagnostic purposes.
Additional mode of operation (twofold line driver).
Datasheets
Manufacturer: iCHaus GmbH
Description
Applications
Gear wheel sensing
Pole wheel and magnetic tape scanning
Magnetic incremental encoders<
Proximity switches
Two-channel line drivers up to 100kHz
Packages
DFN10
Additional information
| Type | Sensors – Magnetic |
|---|
