Product Description
Applications
Operation of N-FETs from 1.8V, 3.3V or 5V systems
Packages
QFN24
Click to enlarge
8-Fold Fail-Safe N-FET Driver level shift to 5V, 10V & supply

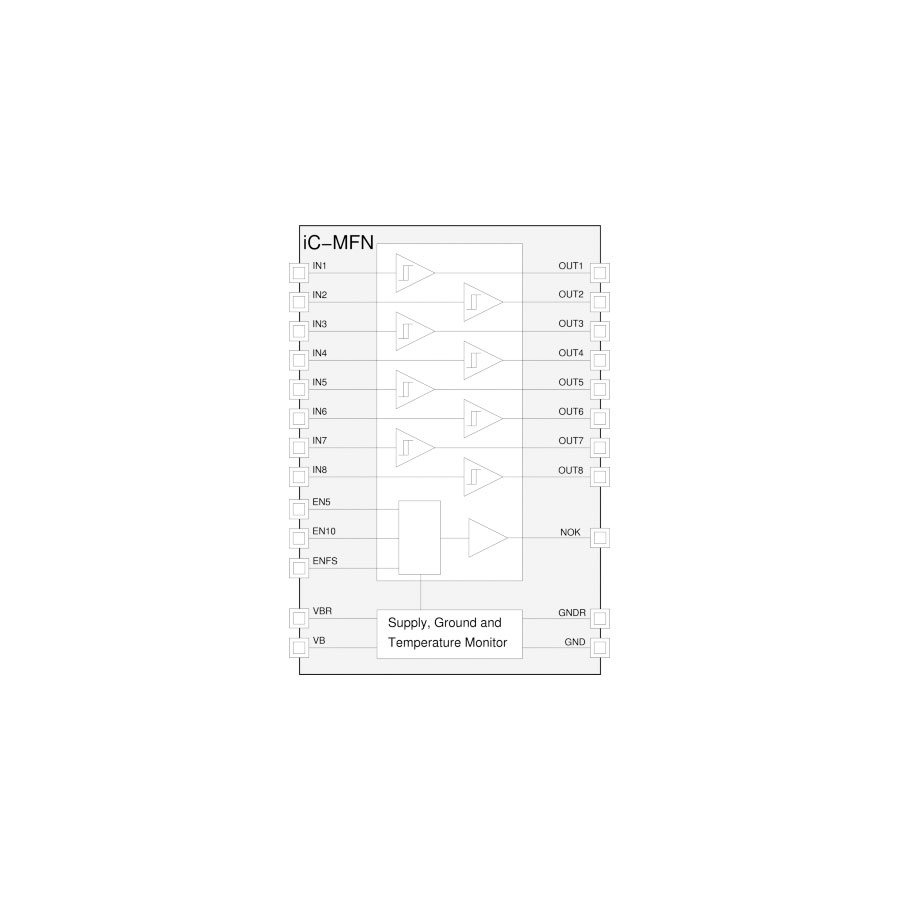

iC-MFN
8-Fold Fail-Safe N-FET Driver level shift to 5V, 10V and supply voltage.
Features
8-fold level shift up to 40V output voltage.
Safe low output state with single errors.
Schmitt trigger inputs with two-stage pull-down current for enhanced noise immunity with limited power dissipation.
Inputs compatible with TTL and CMOS levels (1.8V to 3.3V to 5V).
Input Voltage up to 40V.
Current-limited and short-circuit-proof push-pull output stages.
Level shift configurable to 5V, 10V or supply voltage.
Push-pull current sources for driving FETs.
Switching FETs slowly on⁄off.
Ground and supply voltage monitor.
Protective ESD circuitry.
Extended temperature range from -40 to 125°C.
Datasheets
Manufacturer: iCHaus GmbH
Additional Information
| Type | Output Stages |
|---|
