EFL-1203S
Click to enlarge

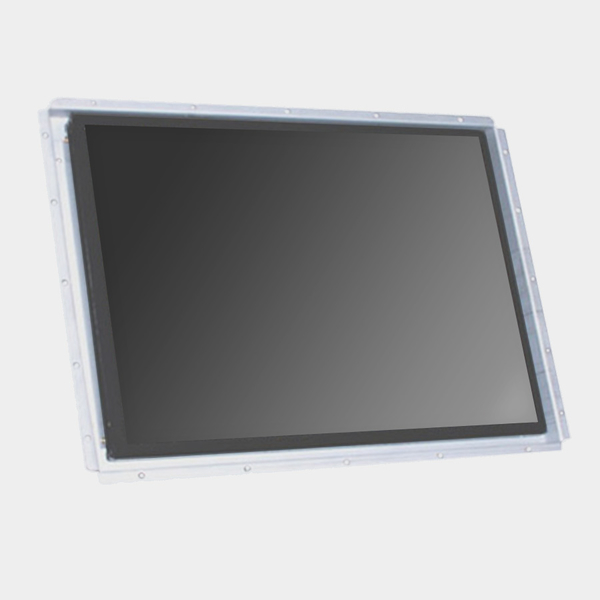

12.1" SVGA Open Frame LCD Monitor with Optional Touch

EFL-1203S

Description

The EFL-1203S is a 12.1″ open frame industrial monitor designed for kiosk and industrial control, as well as digital signage.
The 12.1″ LCD panel provides 800 x 600 (SVGA) resolution. With the option of touch screen and various input types, the monitor can be used in any situation.

Features

12.1″ Open Frame Monitor
Native Resolution 800×600 @60Hz
Optional Composite/S-Video input
Optional Touch Screen
12Vdc power supply
Standard Viewing Angle
VGA and DVI input
Open Frame Type

Fixed Order Quantities:

1-2pcs sample, 25pcs, 50pcs, 100pcs and any multiple of 50pcs above this.

Manufacturer:

Effinet Systems Inc.
SKU: 12.1" SVGA Open Frame LCD Monitor with Optional Touch Category: Tags: , , , , , , ,

Product Description

Screen Size
12.1″, 800 x 600 resolution
Display Colours
262k
Pixel Pitch
0.3075 x 0.3075
Luminance
Typ. 450cd/m2
Backlight Lifetime
Typ. 50,000 hours
Viewing Angle
Horizontal: Typ. 80°/80°, Vertical: Typ. 65°/75°
Backlight Type
Edge LED
Contrast Ratio
Typ. 700:1
Mount Type
Open frame mount and VESA arm mount
Power Input
DC 12V
Dimension
TBD

I/O Ports

Digital
DVI-I
Analogue
15-pin VGA
Optional Inputs
S-Video and Composite video

Optional Touch Screen

Touch Sensor Type
Resistive, Capacitive, IR
Touch Controller Type
Serial, USB

Environment

Temperature
Operating: 0 to 50°C

Additional Information

Screen Size

12.1″
Monitor Type

Monitor – 6″ to 24″
Inputs

Composite Video, DVI, S-Video, VGA
Mount Type

Open Frame, VESA Arm Mount
Touch Type

Capacitive, IR, Resistive
Brightness

450cd/m²
