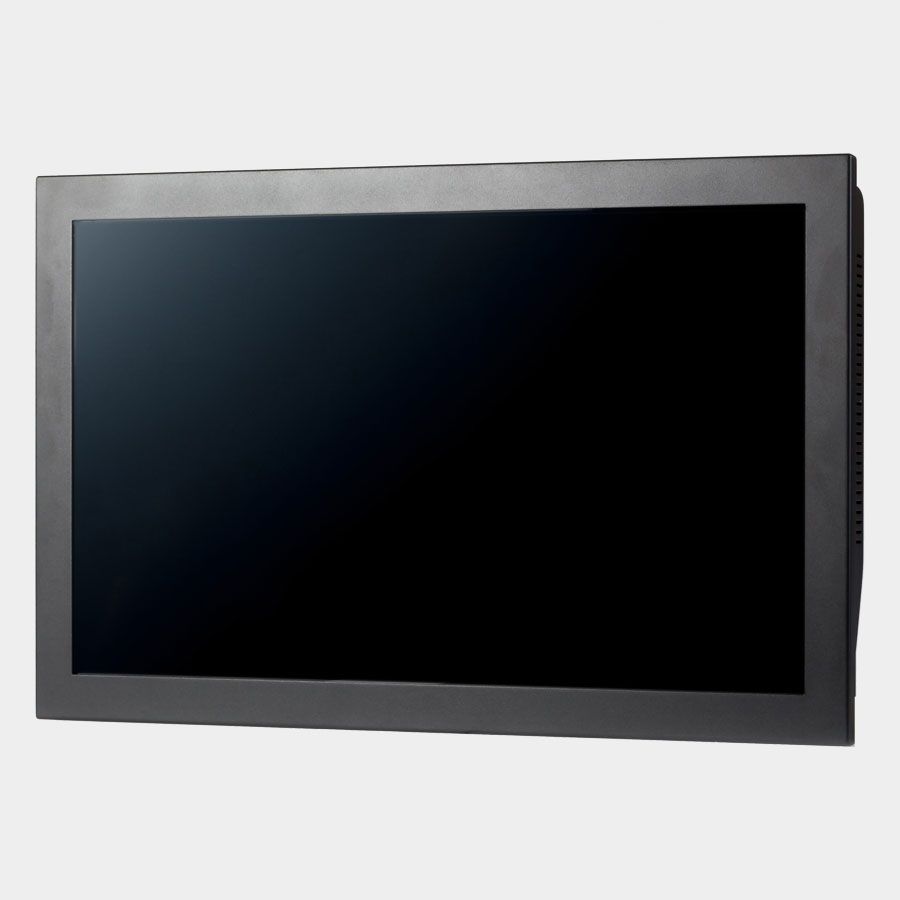

WS2200(-T)
Click to enlarge

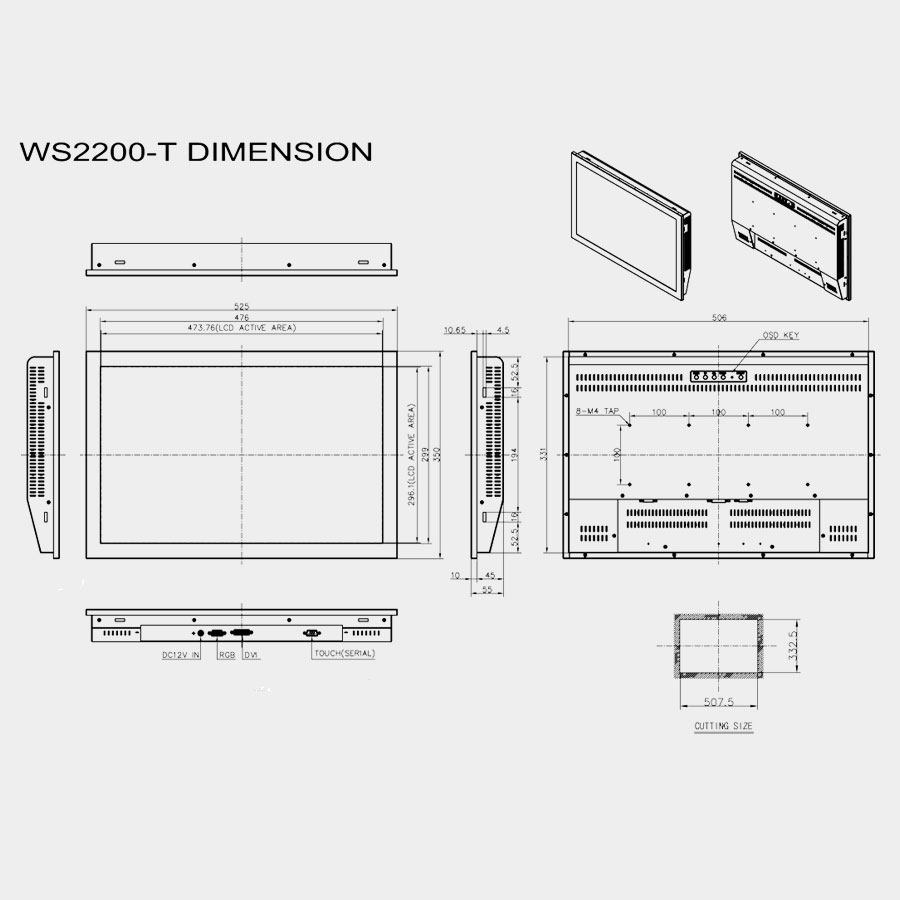

WS2200(-T) WS2200_drawing

22" WSXGA+ Panel Mount Monitor with Touch option

WS2200(-T)

Description

The WS2200 is a 22″ widescreen panel mount industrial monitor designed for industrial automation and monitoring. The 22″ LCD panel provides 1680 x 1050 (WSXGA+) resolution.
With the option of touch screen and VESA mount, the monitor can also be used as an interactive terminal.

Features

22″ Widescreen Panel Mount Monitor
1680 x 1050 Resolution
VGA, DVI-I inputs
Optional VESA arm mount
Optional Resistive touch screen
Backlight Lifetime: Typ 50,000 hours
Contrast ratio: 1000:1 (Typ.)
Support DC 12V input

Suitable for:

Factory Control

Downloads:

Manual
SKU: 22" WSXGA+ Panel Mount Monitor with Touch option Categories: , Tags: ,

Product Description

Screen Size
22″, 1680 x 1050 resolution
Display Colours
16.7M
Pixel Pitch
0.282 x 0.282 mm
Luminance
Typ. 300cd/m2
Backlight Lifetime
Typ. 50,000 hours
Viewing Angle
Horizontal: Typ. 80°/80°, Vertical: Typ. 80°/80°
Input Frequency
TBD
Contrast Ratio
Typ. 1000:1
Mount Type
Panel mount and VESA arm mount
Power Input
DC 12V (<5A)
Dimension
525 x 350 x 55 mm (20.7in x 13.8in x 2.2in)
Weight
TBD
Chassis
Front – Aluminium, Rear – Steel

I/O Ports

Digital
DVI-D (single link)
Analogue
15-pin VGA

Optional Touch Screen

Touch Sensor Type
5 wire resistive type
Touch Controller
RS232 9-pin support Win2k/XP/7/8, Linux

Environment

Temperature
Operating: 0 to 40°C

Additional Information

Mount Type

Panel Mount
Screen Size

22″
Brightness

300 cd/m² (Typ.)
Operating Temperature

0°C to 40°C
Viewing Angle

80° / 80°
Touch Type

Resistive
Inputs

DVI, VGA
Monitor Type

Factory/Industrial
