SML-450-5-1-R
Click to enlarge

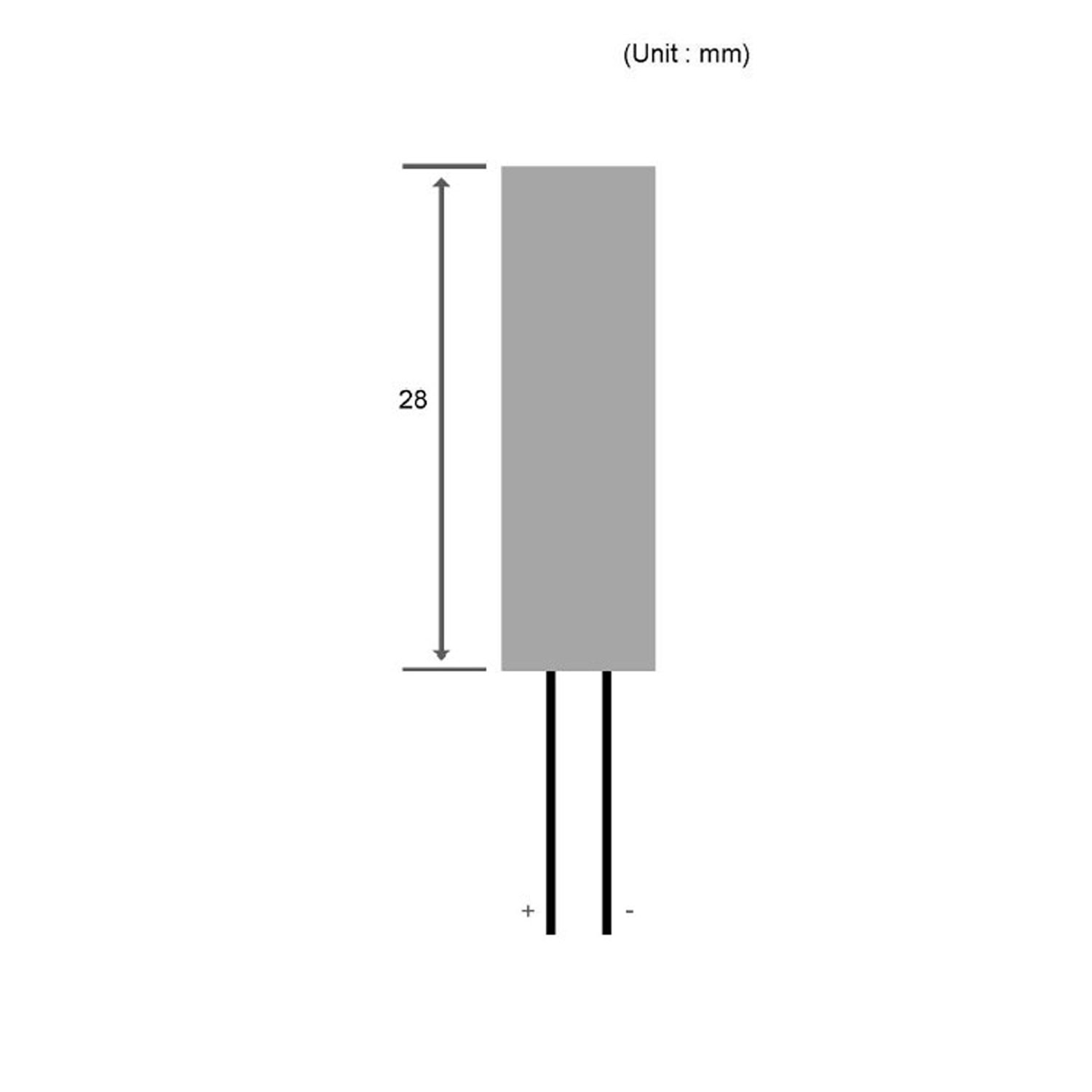

SML-450-5-1-R SML-450-5-1-R case

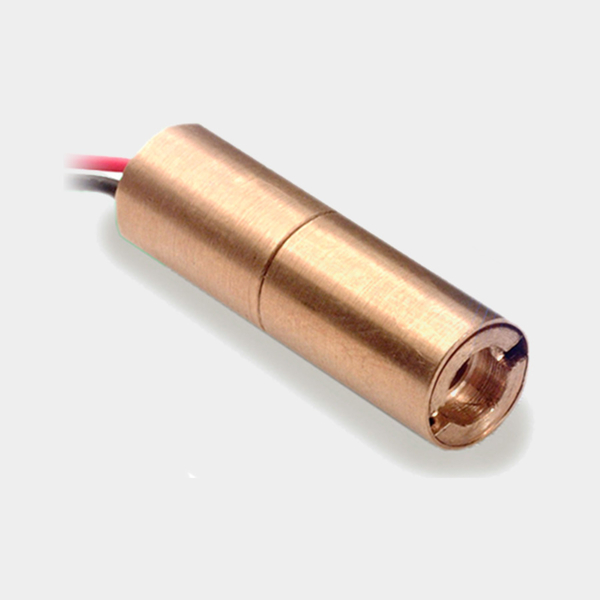

450nm, 5mW Blue Laser Module

SML-450-5-1-R

Feature

Pure Blue Laser Module
Wavelength: 450nm (typ.)
Output Power: 5mW
Package: ø10mm (RoHS compliant)
Length: 28mm

Applications

Biomedical
Laser marker
SKU: 450nm, 5mW Blue Laser Module Category: Tags: , ,

Product Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
5
mW
Operating
Voltage
VCC
+6
V
Operating
Temperature
Topr
+10 to +60
°C
Storage
Temperature
Tstg
-40 to +85
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Operating
Current
Iop
–
–
130
mA
CW
Supply
Voltage
Vcc
–
+6
–
V
–
Beam (*2)
Divergence
2Θr
–
–
0.5
mrad
–
Peak
Wavelength
λp
440
450
460
nm
–

Additional Information

Colour

Blue (445 – 488nm)
Wavelength

450nm
Power Output

5mW
Operating Voltage

6
Operating Current

130 Max.
