Sin/Cos Signal Conditioner with 1Vpp driver and temperature compensation
iC-TW3

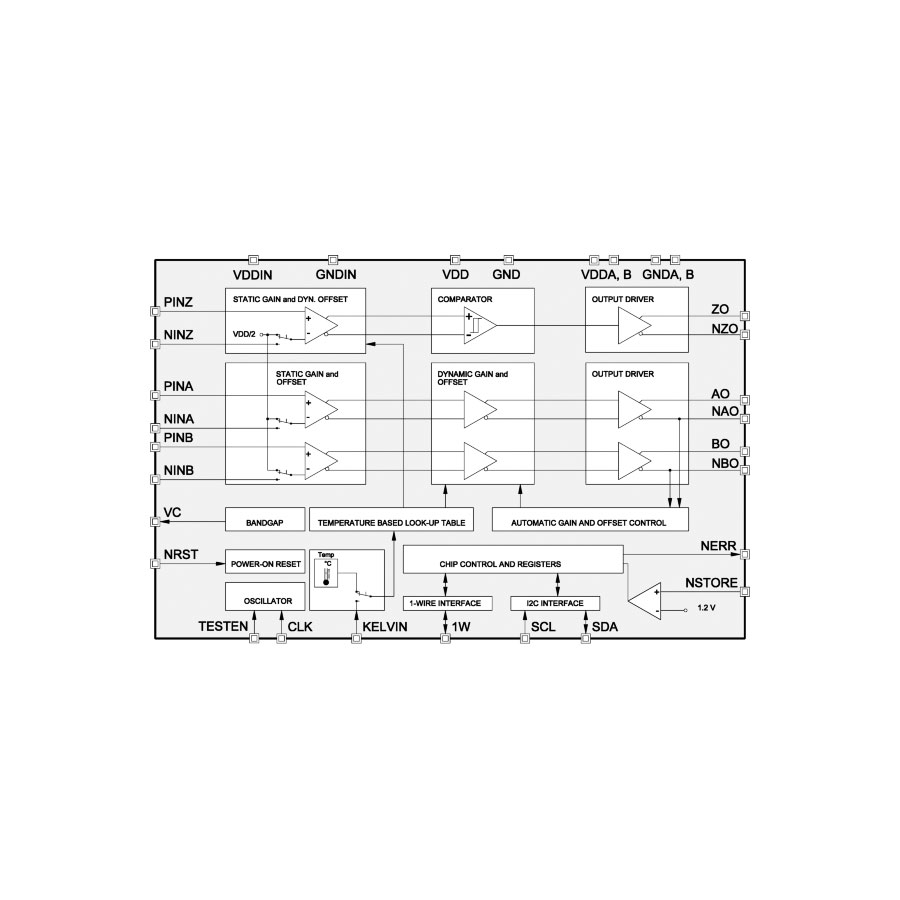

Sin/Cos Signal Conditioner with 1Vpp driver and integrated temperature compensation.
Features
Fully differential 3-channel signal conditioning.
Differential ⁄ single-ended PGA-in.
Overall gain of -3 to 57dB, adjustable in steps of 0.08dB.
Output referred offset range of ±1.2V, adjustable in steps of 2mV.
Signal bandwidth to 1MHz and in ⁄ out latency below 1µs.
Selectable automatic gain and offset control for encoder applications.
On-/off-chip temperature sensing.
Short-circuit-proof 1Vpp ⁄ 2Vpp output drivers to 100Ω.
Temperature drift compensation for gain and offset via programmable look-up-tables.
I²C interface to restore device setup from serial EEPROM.
Bidirectional 1-wire interface for direct RAM and EEPROM access.
Optical setup link via 1-wire interface operating a photo receiver.
Single 3.0V to 5.5V supply.
Extended operating temperature range of –40 to +125°C.
