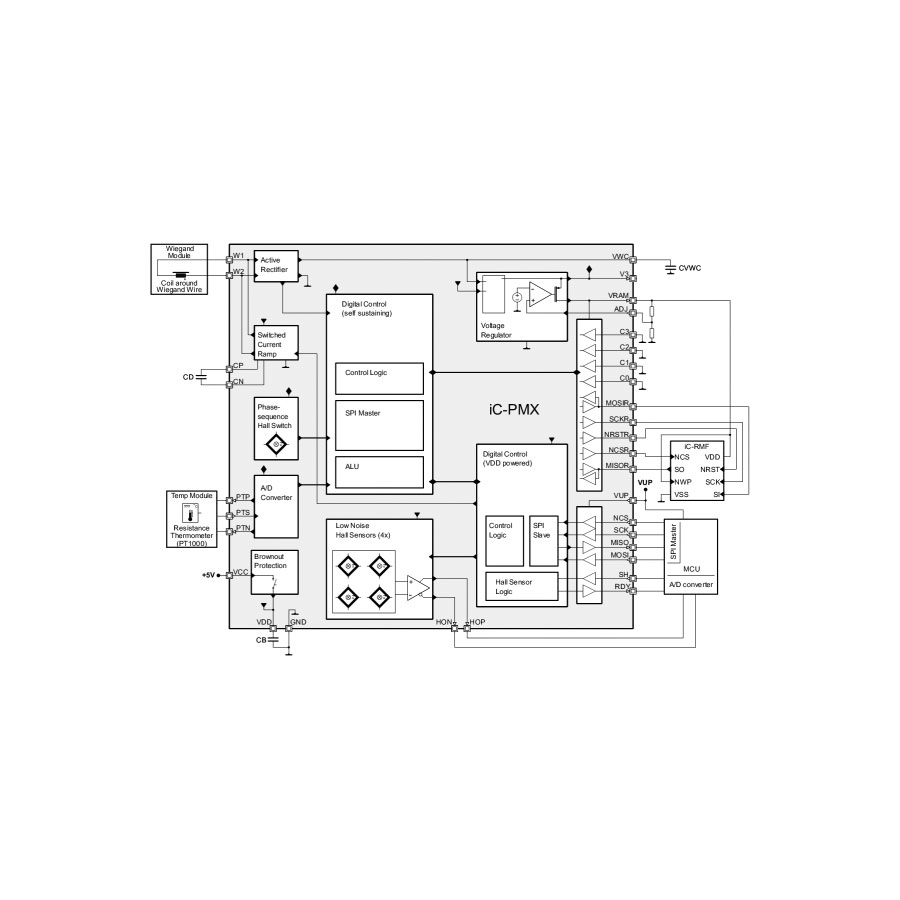

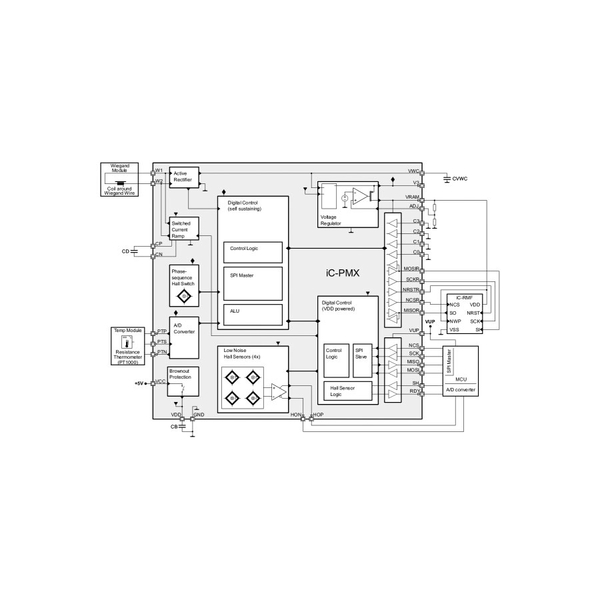

Energy-Harvesting Multiturn Counter/Encoder (new)

iC-PMX

Energy-Harvesting Multiturn Counter/Encoder.

Features

Gearless and batteryless revolution counter.
Energy harvesting through Wiegand pulses.
Integrated Hall switch for direction detection.
Evaluation of PT1000 sensor output for high accuracy gas meter applications.
SPI interface to external nonvolatile RAM.
Independent SPI interface to microcontroller (configuration and data exchange).
4 low-noise Hall sensors with differential analogue output.
Electrical Wiegand wire excitation for synchronization with singleturn.
Runt pulse tolerant counting algorithm.
All accessory components are off-the-shelf products.
Harvesting by Wiegand Wire within position encoders are protected by several worldwide patents (such as WO 2004/046735 A1) and require licensing by the inventors and applicants.

Datasheets

iC-PMX Datasheet
iC-RMF Memory Datasheet
Demo Board PMX1M Datasheet

Manufacturer: iCHaus GmbH

SKU: Energy-Harvesting Multiturn Counter/Encoder (new) Category: Tags: , , ,

Product Description

Applications

Multiturn encoders
Absolute end-of-shaft encoders
Absolute hollow shaft encoders
Absolute linear encoders
Period counters
Gas meters
Liquid flow meters
Encapsulated flow meters

Packages

QFN32
QFN32 Package

QFN48
QFN48 Package

Software

Software for iC-PMX (no runtime engine)
Software for iC-PMX (with runtime engine)
Demo Board Software for PMX1M (no runtime engine)
Demo Board Software for PMX1M (with runtime engine)

Additional Information

Type

Encoder – Magnetic
