Product Description
Applications
Position-sensitive detection of pulse lights
Receiver for motion or proximity sensors
Packages
OD4C
ODL2C
Click to enlarge

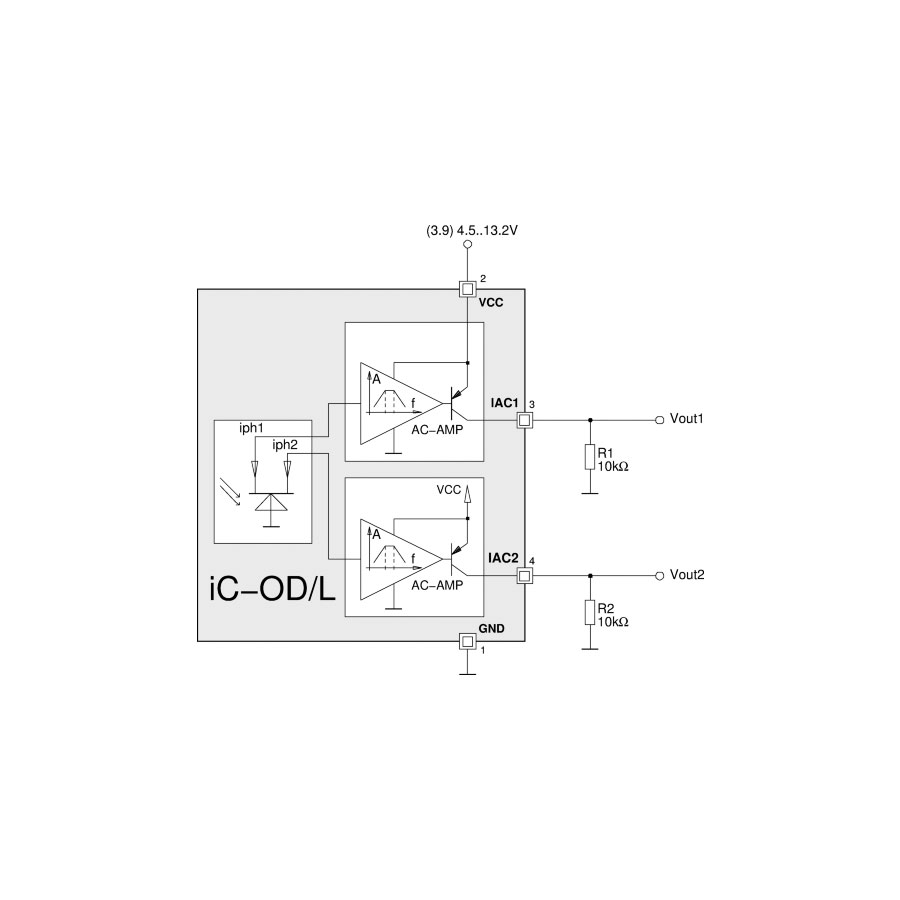

Optical Position-Sensitive Detector (PSD) with ambient light suppression
iC-OD & iC-ODL
Optical Position-Sensitive Detector (PSD) with ambient light suppression.
Features
Low-noise current amplifier with an integrated position-sensitive photodiode.
High reliability due to monolithical design.
Effective photodiode area 2.6mm x 0.88mm (iC-OD).
Longer version with 8.4mm x 0.88mm available (iC-ODL).
High sensitivity for visible light and near infrared.
Integrated bandpass filter with 100kHz center frequency.
High background light suppression.
Analogue output as current source.
Low power consumption from 3.9 to 13.2V supply voltage.
Datasheets
Manufacturer: iCHaus GmbH
Additional Information
| Type | Sensors – Optical |
|---|
