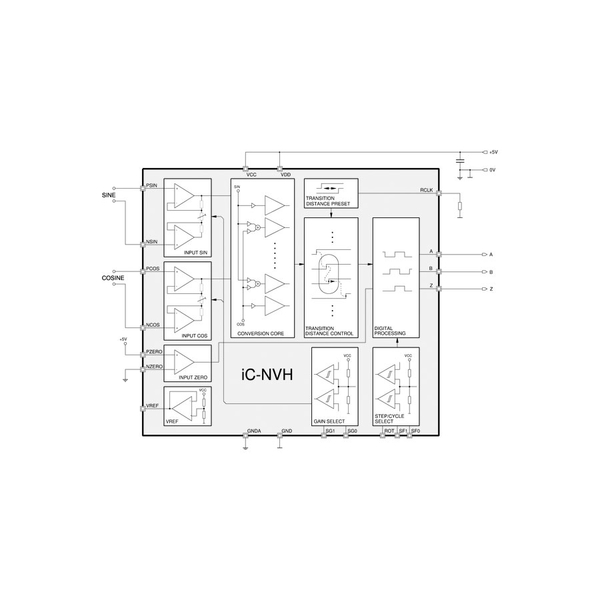

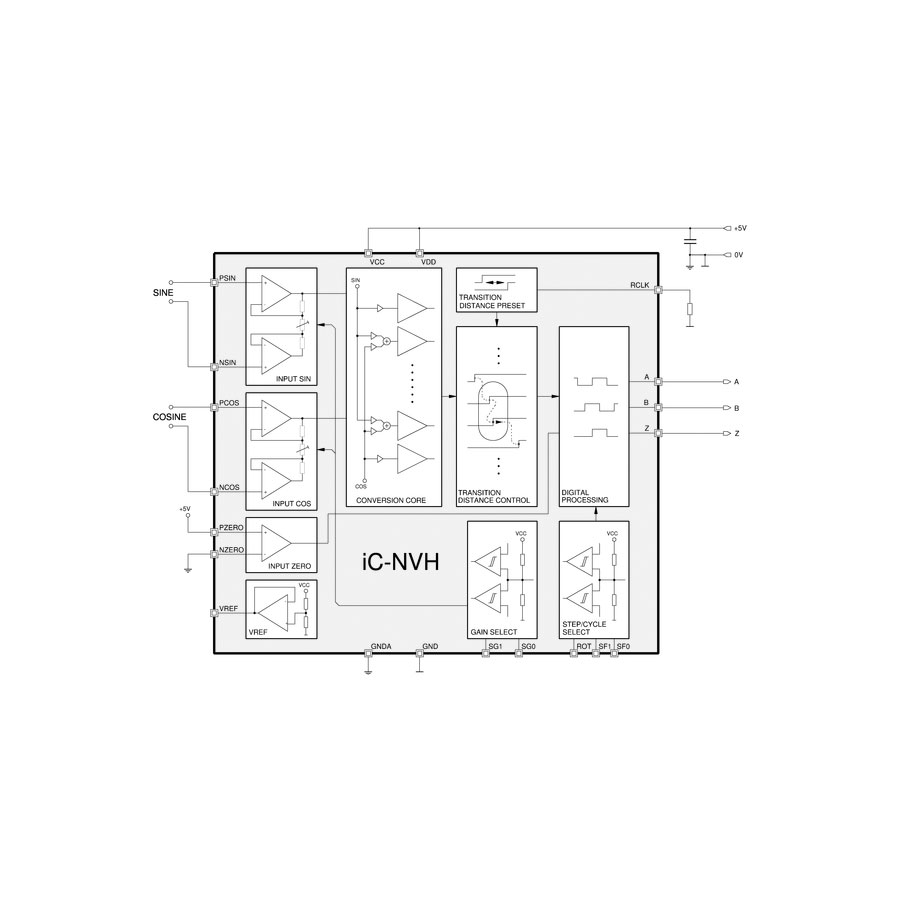

6-Bit Sin/Cos Flash Converter with Pin-Selectable Interpolation, half-cycle index
iC-NVH
6-Bit Sin/Cos Flash Converter with Pin-Selectable Interpolation, half-cycle index.
Features
Fast flash converter.
Integrated glitch filter; minimum transition distance can be set using the optional resistor.
Selectable resolution of up to 64 steps per cycle and up to 16-fold interpolation.
Integrated instrumentation amplifiers with adjustable gain.
Direct connection of sensor bridges, no external components required.
200kHz input frequency with the highest resolution.
Reversed A/B phase selectable.
Incremental A QUAD B output of up to 3.2MHz.
Index signal processing with half cycle index output.
Sensor bridge calibration supported by analog/digital test signals.
Low power consumption from single 5V supply.
TTL- /CMOS-compatible outputs.
Inputs and outputs protected against destruction by ESD.
